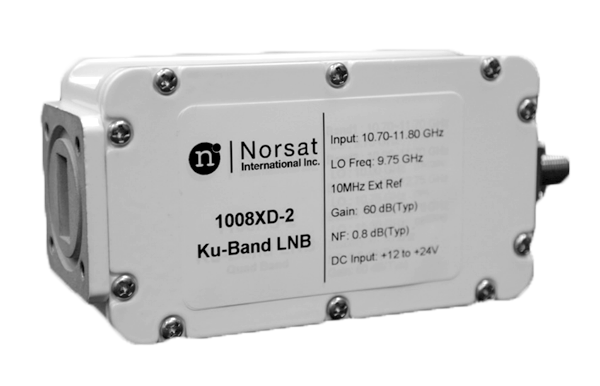

Name: 1000 Ku-Band Single Band EXT REF LNB
Brand: Norsat International Inc.
SKU: 1008XD-2
Price: 616.00 USD
Availability: InStock

1008XD-2

1000 Ku-Band Single Band EXT REF LNB

1000X-2 Series

MSRP: $616.00

Quantity Available: Contact Sales

Lead Time: 2 - 4 weeks Lead Time: 2 - 4 weeks Lead Time: In Stock Lead Time: In Stock Lead Time: In Stock Lead Time: Contact Sales

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

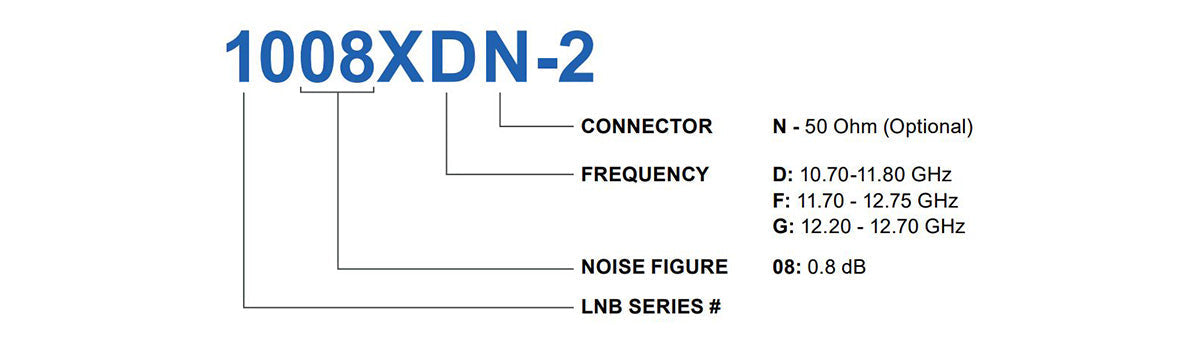

[{"id":41066102423735,"title":"D: 10.70-11.80 GHz \/ F: 75 Ohm","option1":"D: 10.70-11.80 GHz","option2":"F: 75 Ohm","option3":null,"sku":"1008XD-2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - D: 10.70-11.80 GHz \/ F: 75 Ohm","public_title":"D: 10.70-11.80 GHz \/ F: 75 Ohm","options":["D: 10.70-11.80 GHz","F: 75 Ohm"],"price":61600,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066102456503,"title":"D: 10.70-11.80 GHz \/ N: 50 Ohm","option1":"D: 10.70-11.80 GHz","option2":"N: 50 Ohm","option3":null,"sku":"1008XDN-2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - D: 10.70-11.80 GHz \/ N: 50 Ohm","public_title":"D: 10.70-11.80 GHz \/ N: 50 Ohm","options":["D: 10.70-11.80 GHz","N: 50 Ohm"],"price":66000,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066102489271,"title":"F: 11.70-12.75 GHz \/ F: 75 Ohm","option1":"F: 11.70-12.75 GHz","option2":"F: 75 Ohm","option3":null,"sku":"1008XF-2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - F: 11.70-12.75 GHz \/ F: 75 Ohm","public_title":"F: 11.70-12.75 GHz \/ F: 75 Ohm","options":["F: 11.70-12.75 GHz","F: 75 Ohm"],"price":61600,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066102522039,"title":"F: 11.70-12.75 GHz \/ N: 50 Ohm","option1":"F: 11.70-12.75 GHz","option2":"N: 50 Ohm","option3":null,"sku":"1008XFN-2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - F: 11.70-12.75 GHz \/ N: 50 Ohm","public_title":"F: 11.70-12.75 GHz \/ N: 50 Ohm","options":["F: 11.70-12.75 GHz","N: 50 Ohm"],"price":66000,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066102554807,"title":"G: 12.20-12.70 GHz \/ F: 75 Ohm","option1":"G: 12.20-12.70 GHz","option2":"F: 75 Ohm","option3":null,"sku":"1008XG-2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - G: 12.20-12.70 GHz \/ F: 75 Ohm","public_title":"G: 12.20-12.70 GHz \/ F: 75 Ohm","options":["G: 12.20-12.70 GHz","F: 75 Ohm"],"price":61600,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066102587575,"title":"G: 12.20-12.70 GHz \/ N: 50 Ohm","option1":"G: 12.20-12.70 GHz","option2":"N: 50 Ohm","option3":null,"sku":"1008XGN-2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - G: 12.20-12.70 GHz \/ N: 50 Ohm","public_title":"G: 12.20-12.70 GHz \/ N: 50 Ohm","options":["G: 12.20-12.70 GHz","N: 50 Ohm"],"price":66000,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	Ku-Band: 10.70 - 11.80 GHz
lo stability	Phase Locked to External Reference at 10MHz
lo type	External
noise figure	0.8 dB
output frequency 1	L-Band: 950 - 2050 MHz

RF SPECIFICATIONS
conversion gain	60 dB typ
lo frequency 1	9.75 GHz

ELECTRICAL SPECIFICATIONS
current drain	250 mA
power requirements	12 - 24 V

INTERFACE SPECIFICATIONS
RF input connector	WR-75 waveguide grooved
RF output connector	F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 95%
temperature operational	-40 to +60°C
Weight	450g

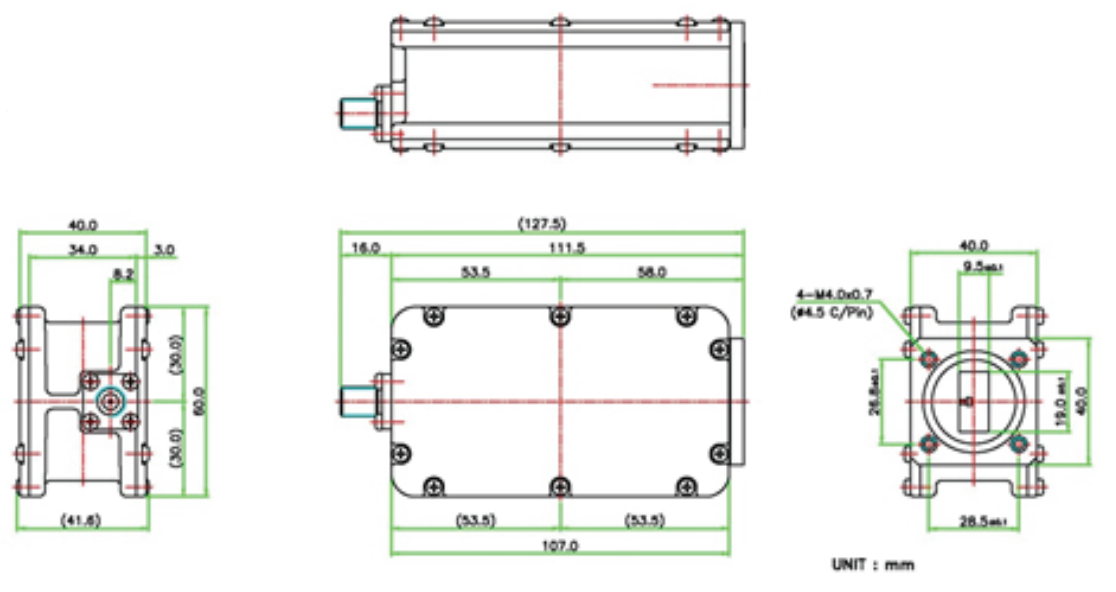

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)	128 x 60 x 40 mm

INFORMATION
HS Code	8517690000
Country of Origin	KR
ECCN Number	EAR99
Shipping Package Dimensions	145 x 95 x 65 mm
Shipping Package Weight	460g
