1000 Ku-Band Single Band PLL LNB
1000 Ku-Band Single Band PLL LNB
1000 Ku-Band Single Band PLL LNB
1000 Ku-Band Single Band PLL LNB

1000-100079

1000 Ku-Band Single Band PLL LNB

1000 Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 12.25 - 12.75 GHz
LO frequency 1 11.30 GHz
LO type PLL
noise figure typ 0.7 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 5 dB p-p
input VSWR 2.5 : 1 max.
output P1dB + 4 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-75 waveguide grooved
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +60°C

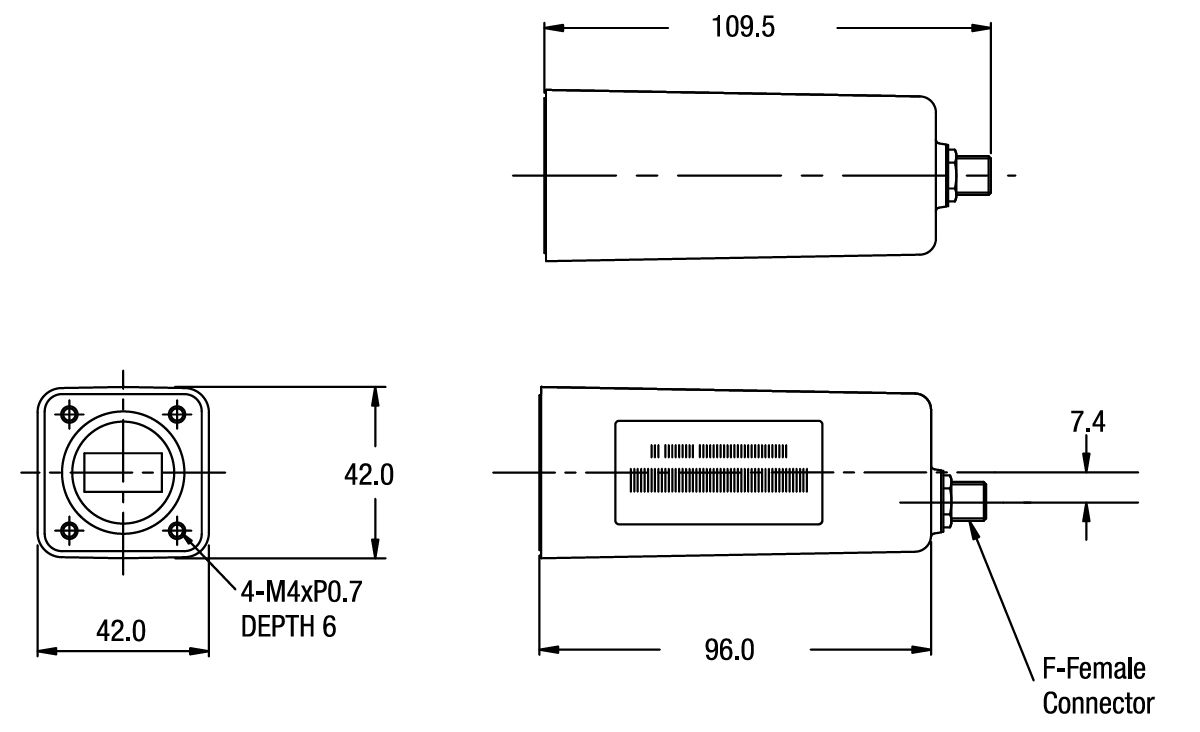

PHYSICAL SPECIFICATIONS
product height 42 mm
product length 110 mm
product weight 0.3 kg
product width 42 mm
