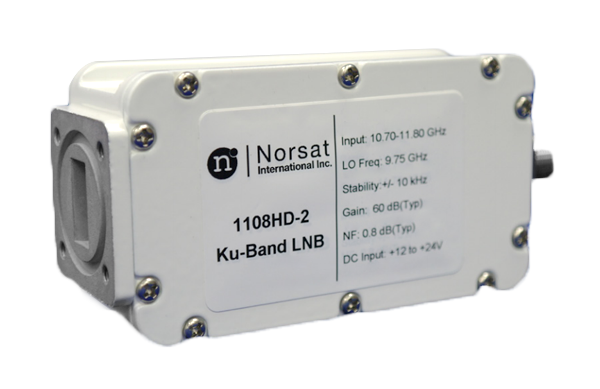

![1000 Ku-Band Single Band PLL LNB]()
![1000 Ku-Band Single Band PLL LNB]()
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
10.70 - 11.80 GHz |
LO frequency 1 |
9.75 GHz |
LO stability |
±10 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2050 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |

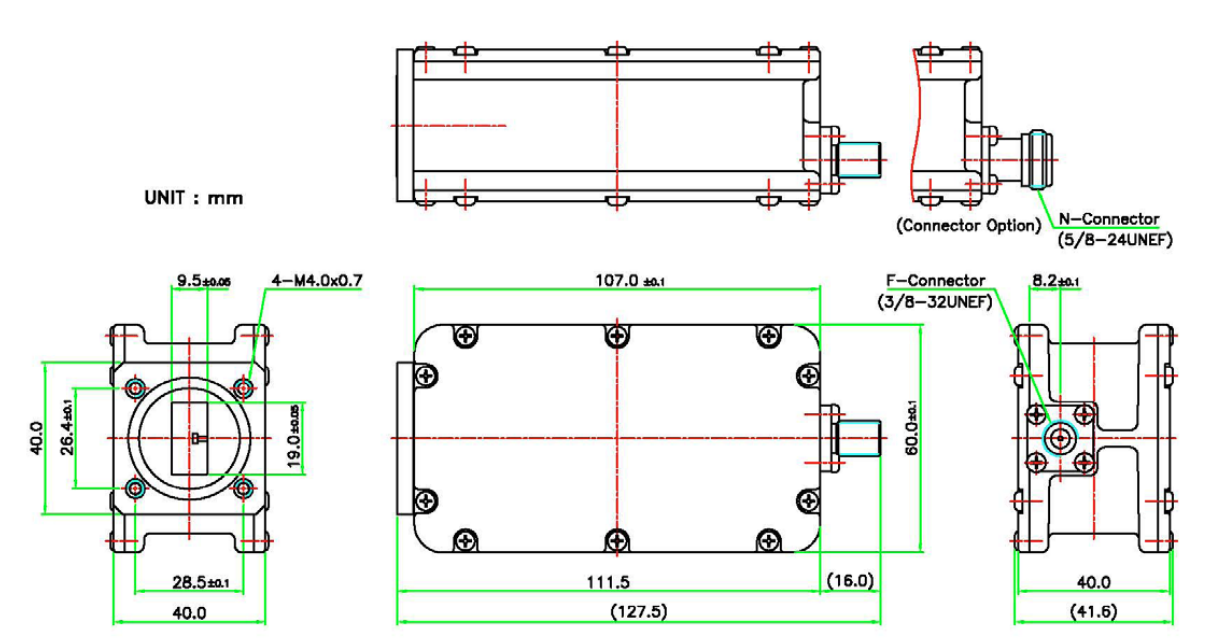

PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
11.70 - 12.75 GHz |
LO frequency 1 |
10.75 GHz |
LO stability |
±10 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2000 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
11.70 - 12.75 GHz |
LO frequency 1 |
10.75 GHz |
LO stability |
±10 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2000 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
12.20 - 12.70 GHz |
LO frequency 1 |
11.25 GHz |
LO stability |
±10 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 1450 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
250 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
10.70 - 11.80 GHz |
LO frequency 1 |
9.75 GHz |
LO stability |
±10 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2050 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
12.20 - 12.70 GHz |
LO frequency 1 |
11.25 GHz |
LO stability |
±10 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 1450 MHz |
Product Revision |
C |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
250 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
10.70 - 11.80 GHz |
LO frequency 1 |
9.75 GHz |
LO stability |
±25 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2050 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
11.70 - 12.75 GHz |
LO frequency 1 |
10.75 GHz |
LO stability |
±25 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2000 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
12.20 - 12.70 GHz |
LO frequency 1 |
11.25 GHz |
LO stability |
±25 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 1450 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
250 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
10.70 - 11.80 GHz |
LO frequency 1 |
9.75 GHz |
LO stability |
±25 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2050 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
11.70 - 12.75 GHz |
LO frequency 1 |
10.75 GHz |
LO stability |
±25 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 2000 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
350 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
KEY SPECIFICATIONS |
band |
Ku-Band |
input frequency band 1 |
12.20 - 12.70 GHz |
LO frequency 1 |
11.25 GHz |
LO stability |
±25 kHz |
LO type |
PLL |
noise figure max |
1.0 dB |
noise figure typ |
0.8 dB |
number of onboard LOs |
Single-Band |
output frequency band 1 |
950 - 1450 MHz |
Product Revision |
B |
RF SPECIFICATIONS |
conversion gain max |
65 dB |
conversion gain min |
55 dB |
conversion gain typ |
60 dB |
input VSWR |
2.5 : 1 max. |
output P1dB |
+ 5 dBm min. |
output VSWR |
2.5 : 1 max. |
phase noise 100kHz offset max |
-95 dBc/Hz |
phase noise 10kHz offset max |
-80 dBc/Hz |
phase noise 1kHz offset max |
-70 dBc/Hz |
ELECTRICAL SPECIFICATIONS |
current consumption |
250 mA |
power requirements |
+12 to +24 V |
INTERFACE SPECIFICATIONS |
RF input connector |
WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
0 - 95% |
IP rating |
IP 67 |
temperature operational |
-40 to +60°C |
temperature storage |
-40 to +80°C |
PHYSICAL SPECIFICATIONS |
product height |
40 mm |
product length |
128 mm |
product weight |
0.4 kg |
product width |
60 mm |
Please log in to view additional documents.
Please log in to view additional documents.
Please log in to download the files.
INFORMATION |
HS Code |
8517690000 |
Country of Origin |
Made in Korea |
Ex Works |
Korea |
ECCN Number |
- |
Warranty |
3 years |
Unit Package Dimensions |
145 mm x 95 mm x 65 mm |
Unit Package Weight |
- |
COMPLIANCE |
|
Yes |
|
Yes |
|
Yes |
>
