1000 Ku-Band Single Band PLL LNB
1000 Ku-Band Single Band PLL LNB

HS1028BF

1000 Ku-Band Single Band PLL LNB

HS1000B Series

Regular price MSRP: $506.00
/
Quantity Available: 1
Next Availability: Not Applicable
Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


Only 1 items in stock!



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 Ku-Band: 12.25 - 12.75 GHz
L.O. stability +/- 2 kHz
L.O. type PLL
noise figure 0.8 dB
output frequency 1 L-Band: 950 - 1450 MHz
RF SPECIFICATIONS
conversion gain 60 dB typ.
Gain Flatness (over full band) ≤ 5 dB p-p
input VSWR 2.5 : 1 max.
L.O. frequency 1 11.30 GHz
output P1dB + 4 dBm min.
output VSWR 2.0 : 1 max.
phase noise 100khz offset -90 dBc/Hz
phase noise 10khz offset -75 dBc/Hz
phase noise 1khz offset -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 300 mA
power requirements 15 - 24 V
INTERFACE SPECIFICATIONS
RF input connector WR-75 waveguide grooved
RF output connector F-75 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +60°C
Weight 300 g (10.58 oz)
PHYSICAL SPECIFICATIONS

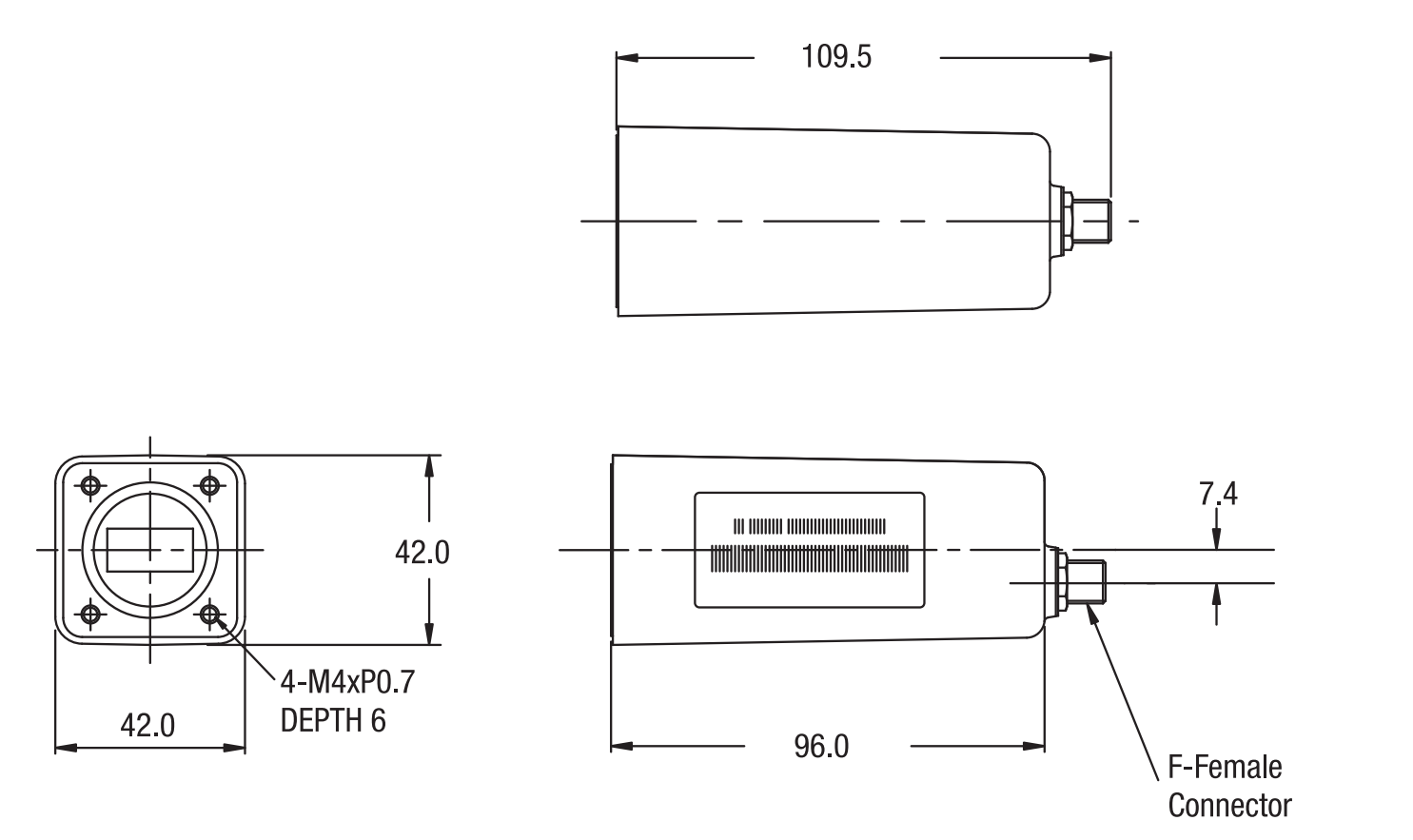

dimensions (LxWxH) 110 x 42 x 42 mm
