KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |

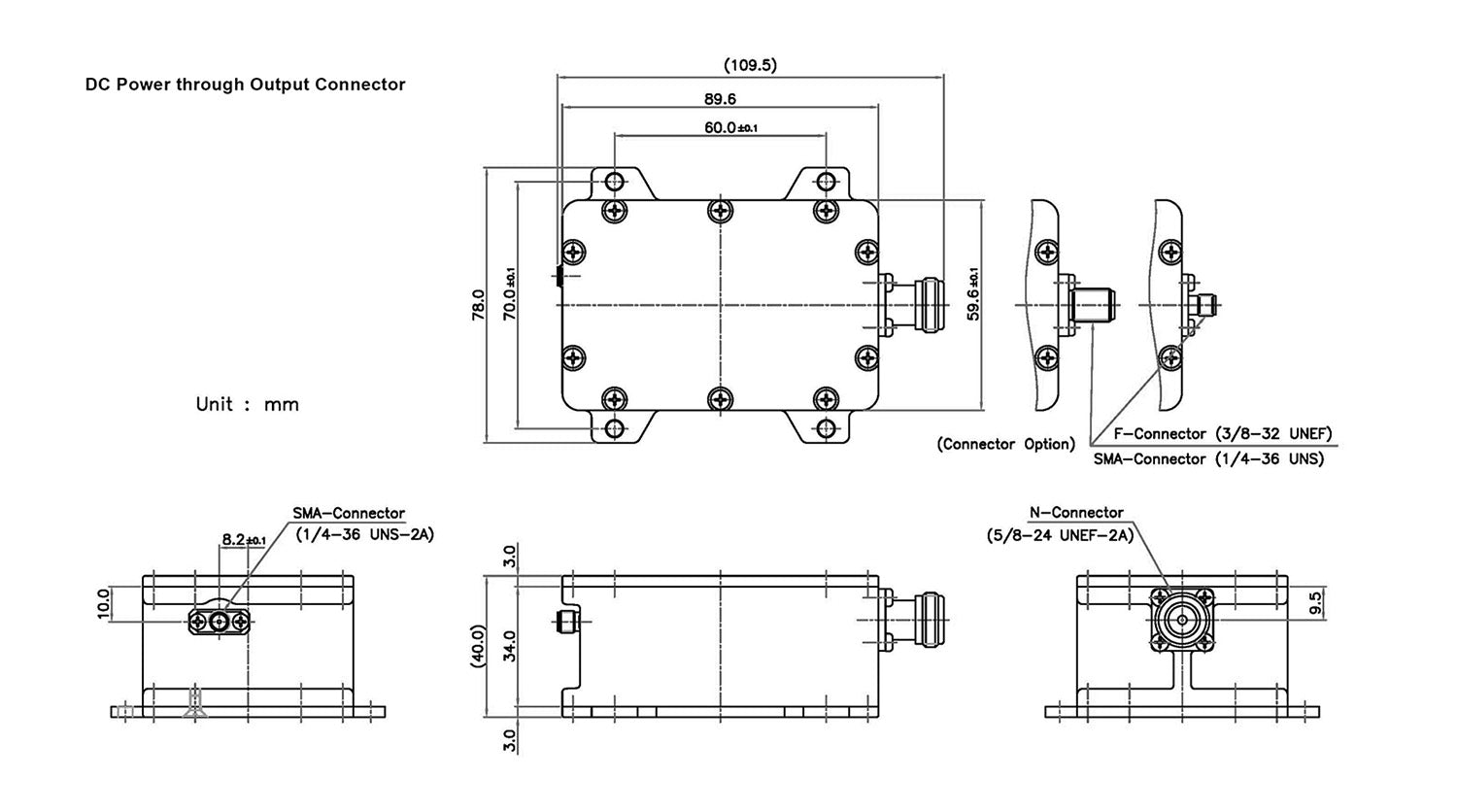

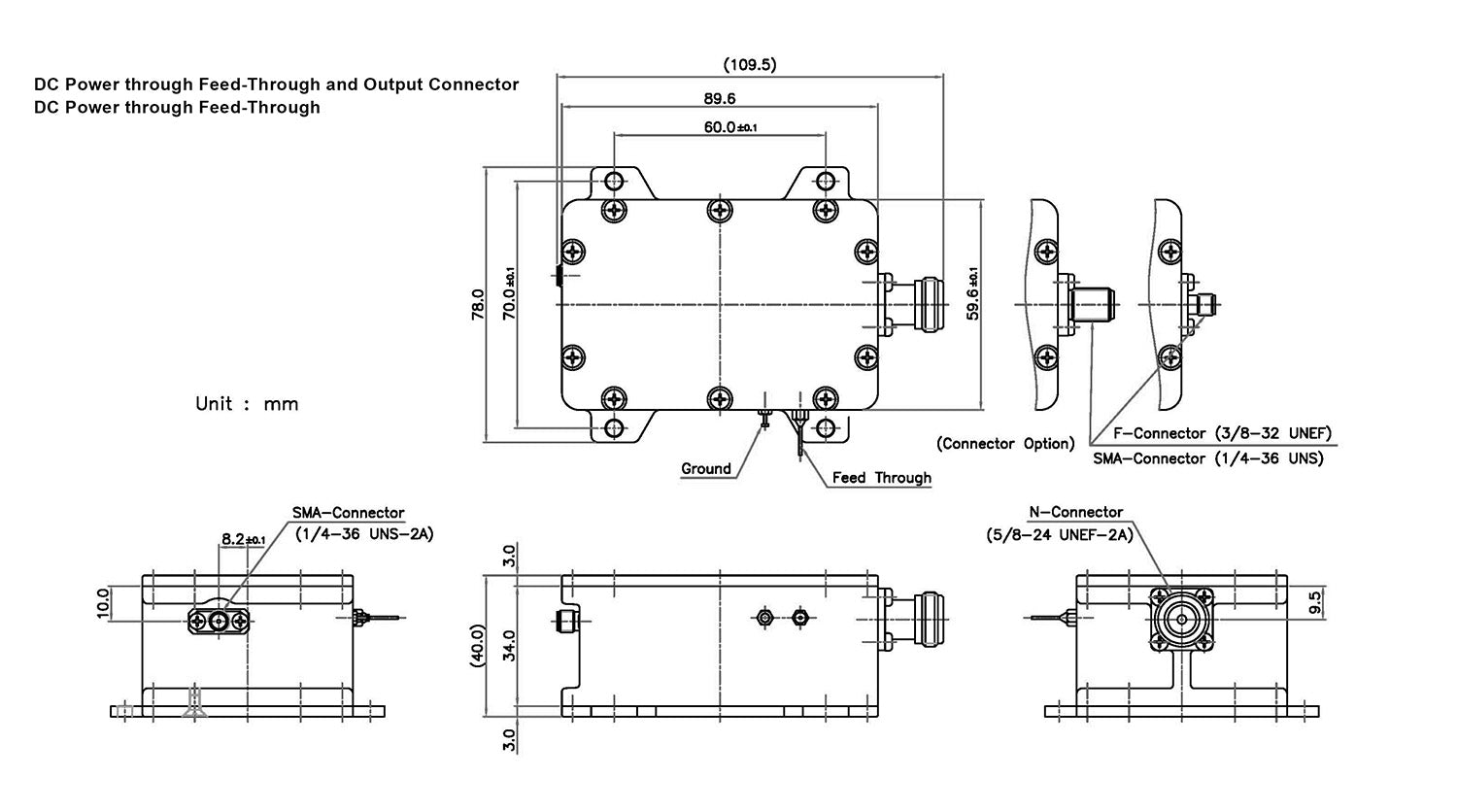

PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | 1.1.0 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | 1 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 11.70 - 12.75 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 2000 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 10.70 - 11.70 GHz |
LO frequency 1 | 9.75 GHz |
LO stability | ±30 kHz |
noise figure | 15 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 22 dB |
conversion gain min | 18 dB |
conversion gain typ | 20 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 1.8 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 107 mm |
product weight | 0.3 kg |
product width | 78 mm |
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in Korea |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | 145 mm x 95 mm x 65 mm |
Unit Package Weight | - |
