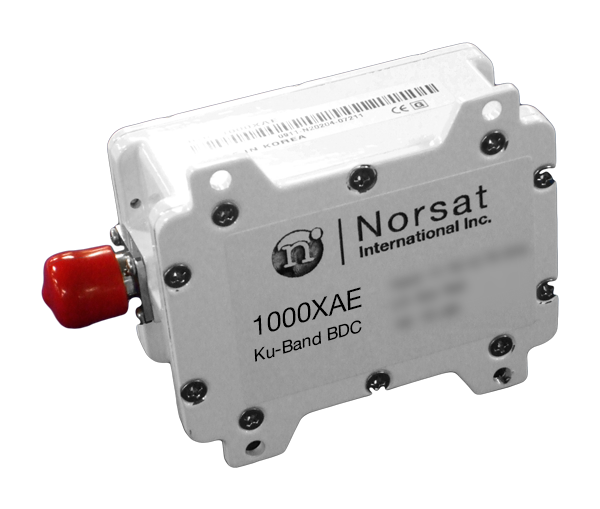

1000 Single-Band Ku-Band EXT REF BDC
1000 Single-Band Ku-Band EXT REF BDC
1000 Single-Band Ku-Band EXT REF BDC

BDC-1000XAFD-10S

1000 Single-Band Ku-Band EXT REF BDC

BDC-1000X Series (Via SMA Connector)

Regular price
$1,980.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1 11.70 - 12.20 GHz
LO frequency 1 10.75 GHz
LO stability Ext Ref
noise figure 15 dB max. at room temp.
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 22 dB
conversion gain min 18 dB
conversion gain typ 20 dB
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 1.8 : 1 max.
output P1dB + 5 dBm min.
phase noise SSB max Depends on External Reference
ELECTRICAL SPECIFICATIONS
power requirements 15 - 24 V
INTERFACE SPECIFICATIONS
RF input connector S: SMA 50 Ohm
RF output connector F: 75 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C

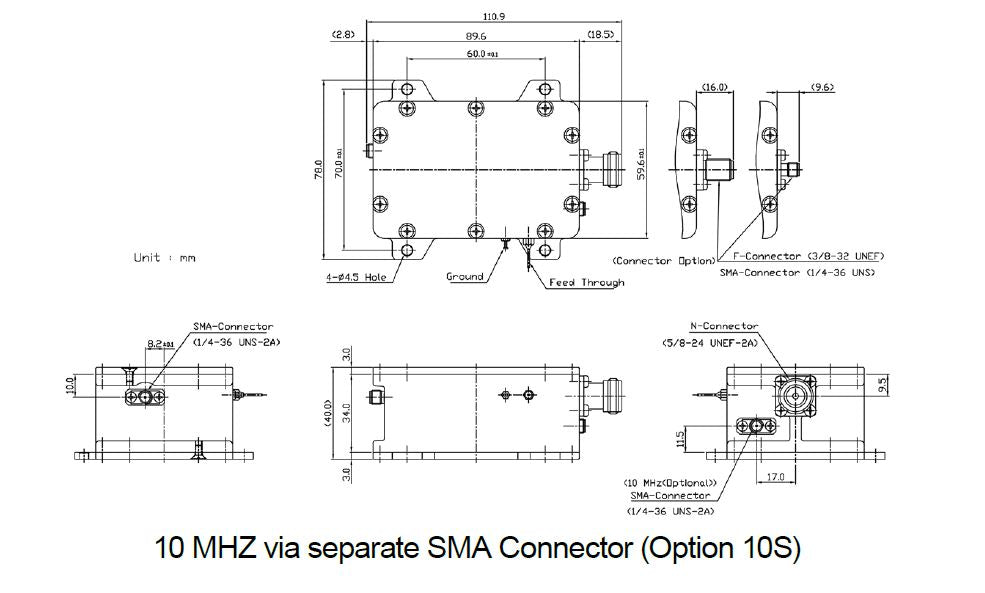

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 89.6 x 78 x 40 mm
product weight 0.4 kg
