PS-100035
100W BUC Power Supply
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| color | Silver |
| output power rated | 96W |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| input voltage | 90 - 305 VAC (47 - 63 Hz) |
| output voltage | +48 V |
| output voltage accuracy | +/- 1.0% of output voltage |
| output voltage ripple noise | 200 mV Peak-to-Peak |
| rated current | 2 A |
| INTERFACE SPECIFICATIONS | |
|---|---|
| AC input cable | 5m (16.5 ft), Europe (CEE 7/7) |
| DC output cable | 2m (6 ft) Socket reference: ACS02E10SL-4S |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -35 to +70°C |
| temperature storage | -40 to +85˚C |

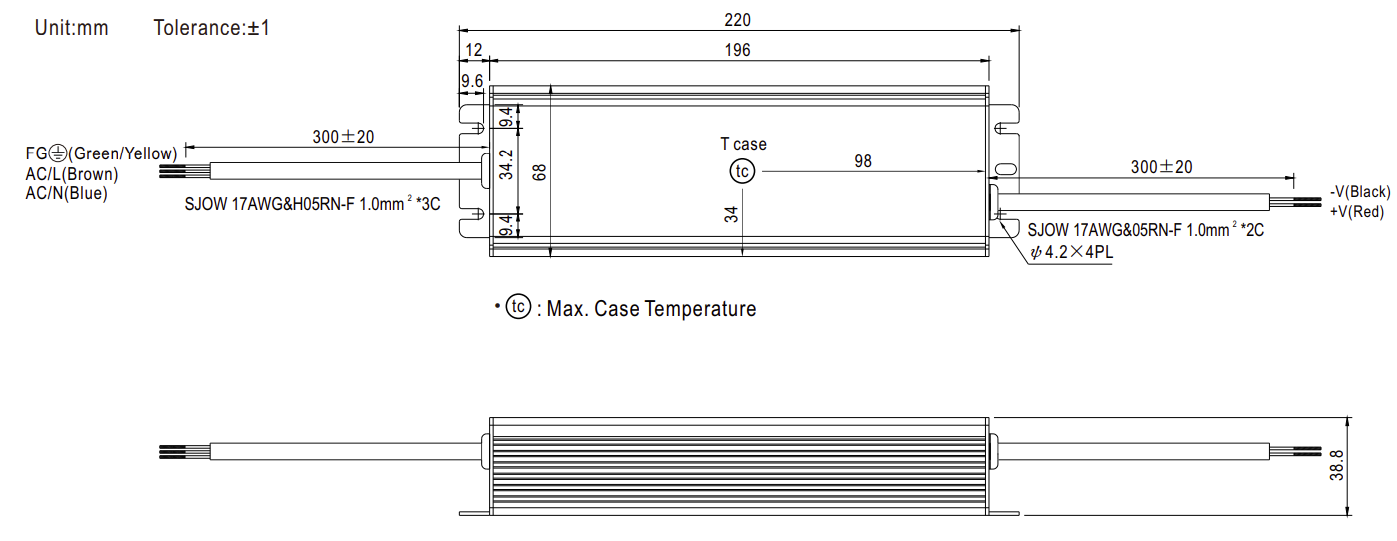

| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | Silver |
| cooling | Passive / Fanless |
| product height | 38.8 mm |
| product length | 220 mm |
| product weight | 1.12 kg |
| product width | 68 mm |
