BUC-100480

1.5W Ka Band 27.5-31.0 GHz BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, - 5 to + 5 dBm
input frequency band 1 950 - 1950 MHz
input frequency band 2 950 - 1950 MHz
input frequency band 3 950 - 1950 MHz
input frequency band 4 950 - 1950 MHz
LO frequency 1 26.55 GHz
LO frequency 2 27.40 GHz
LO frequency 3 28.05 GHz
LO frequency 4 29.05 GHz
output frequency band 1 27.50 - 28.50 GHz
output frequency band 2 28.35 - 29.35 GHz
output frequency band 3 29.0 - 30.0 GHz
output frequency band 4 30.0 - 31.0 GHz
output power rated 1.5 W
product family BUC
reference type External Reference
Product Revision A
RF SPECIFICATIONS
conversion gain min 60 dB
conversion gain typ 65 dB
gain flatness (40MHz) ±0.5 dB max
Gain Flatness (over full band) ±1.8 dB max
Gain Flatness (over temperature) ±1.5 dB typ., ±1.8 dB max
IMD3 -25 dBc max. (two tones) 2 signals 5 MHz apart from PLin
input VSWR 1.5 : 1 max
mute Shut off the BUC if L.O. unlocked.
noise figure 15 dB max.
noise power density Rx -157 dBm/Hz max.
noise power density Tx -66 dBm/Hz max.
output power psat +31.76 dBm min.
output VSWR 1.5 : 1 max.
phase noise 100Hz offset max -65 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
phase noise 10Hz offset max -55 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
phase noise 1MHz offset max -115 dBc/Hz
spectral regrowth -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power)
spurious -50 dBc max.
ELECTRICAL SPECIFICATIONS
input power via IFL
power consumption 25 W max
power requirements +15 VDC ~ +55 VDC
INTERFACE SPECIFICATIONS
FSK Multiplexed on Tx IFL, compatible with Comtech and Paradigm modems
Input connector N-Connector
M&C interface RS-232 and RS-485, Ethernet (HTTP and SNMP)
output connector WR-28G
status LED Status LED RED: SSPA MUTED
Status LED GREEN: SSPA OK
L.O. GREEN: All OK L.O. 26.55 GHz
L.O. GREEN BLINKING: All OK L.O. 27.4 GHz
L.O. YELLOW: All OK L.O. 28.05 GHz
L.O. YELLOW BLINKING: All OK L.O. 29.05 GHz
Internal 10MHz Auto-Detect GREEN: EXTERNAL DETECTED
Internal 10MHz Auto-Detect GREEN BLINKING: ENABLED
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40°C to +55°C
temperature storage -55°C to +85°C
vibration and shock Complies with MIL-STD-810E

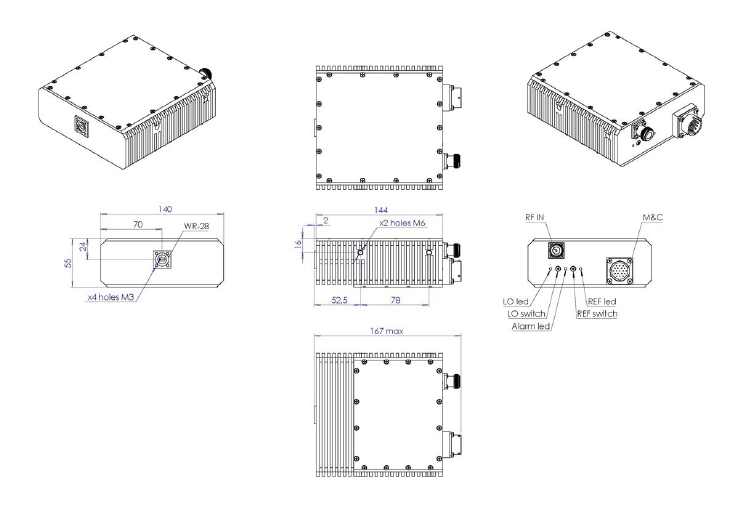

PHYSICAL SPECIFICATIONS
product height 55 mm
product length 144 mm
product weight 1.5 kg
product width 140 mm
