10W Ka-Band BUC
10W Ka-Band BUC
10W Ka-Band BUC
10W Ka-Band BUC

BUC-100444

10W Ka-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 950 - 1950 MHz
LO frequency 1 29.05 GHz
output frequency band 1 30.00 - 31.00 GHz
output power rated 10W
product family BUC
Product Revision A
RF SPECIFICATIONS
gain adjust range 20 dB (45 - 65 dB, step: 0.1 dB)
gain flatness (over 1000MHz) 4 dB p-p
gain flatness (over 36MHz) 1 dB p-p
gain flatness (over 500MHz) 3 dB p-p
gain stability 3 dB p-p
IMD3 -25 dBc (@ Prated-3dB)
input VSWR 2 : 1 max.
Linear Gain 65 dB
linear power plin 39 dBm (-26 dBc regrowth, 1.5 SR, commercial satellite)
38 dBm (-30 dBc regrowth, 1.0 SR, MIL-STD-188-164B, one-carrier)
37 dBm (≤25 dBc IMD3, MIL-STD-188-164B, two-carrier)
output power psat 40 dBm min.
output spurious in band ≤ -55 dBc
output VSWR 1.3 : 1 max.
ELECTRICAL SPECIFICATIONS
power connector ACS02E10SL-4P
power consumption plin 55 W max.
power consumption psat 70 W max.
power requirements +18 to +55V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector Female
LED alarm indicator Green On: Normal
Green Flash: PLL alarm
Red On: PLL alarm
m and c connector PT02E-12-14P
m and c interface RS-485, RS-232 & Ethernet
RF output connector WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
altitude 40,000 feet ASL
humidity 0 - 100% condensing
temperature operational -40 to +60°C

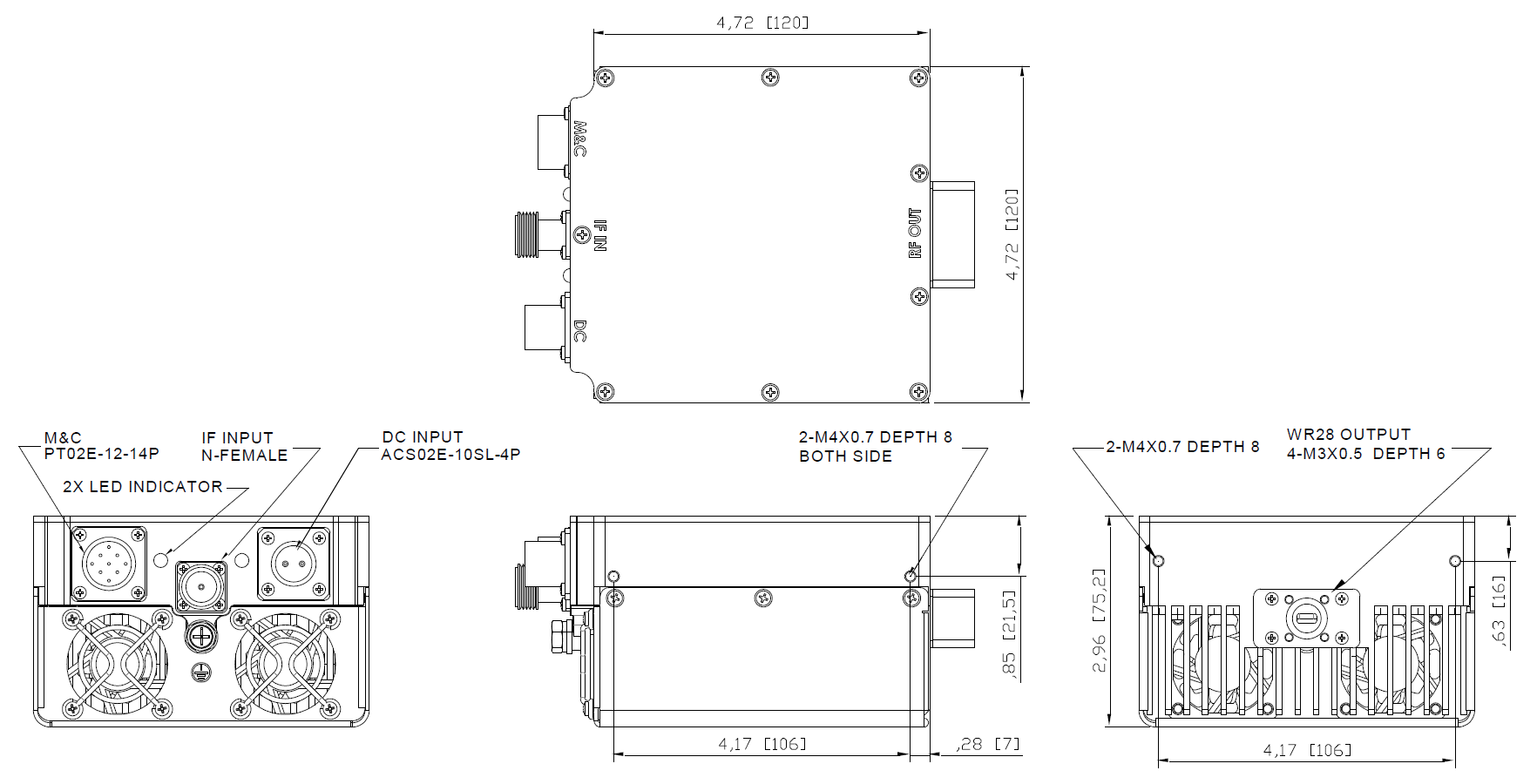

PHYSICAL SPECIFICATIONS
product height 75 mm
product length 120 mm
product weight 1.5 kg
product width 120 mm
