LTDF50

OPTIVIA 160mJ Laser Target Designator, 50000m

Laser Target Designator

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser target designator accuracy ± 2m
laser target designator illumination frequency 20Hz
laser target designator optical axis instability ≤0.03 mrad
laser target designator ranging range 200 - 50000m
laser target designator Wavelength 1064±3nm
laser target designator beam divergence 0.3 - 0.4 mrad
laser target designator continuous ranging duration ≥1min(5Hz)
laser target designator illumination coding accuracy ≤1 μs
laser target designator illumination duration Single cycle: ≥60s (interval: 60s, 2 cycles); Single cycle: ≥17s (interval: 10s, 10 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes.
laser target designator illumination range ≥200m - 16000m
laser target designator laser energy 160mJ
laser target designator peak power 9.4 MW
ELECTRICAL SPECIFICATIONS
power consumption Avg ≤150W
power supply DC 22 - 32V (typ 28V)
INTERFACE SPECIFICATIONS
external interface communication interface RS422
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -55°C to +70°C

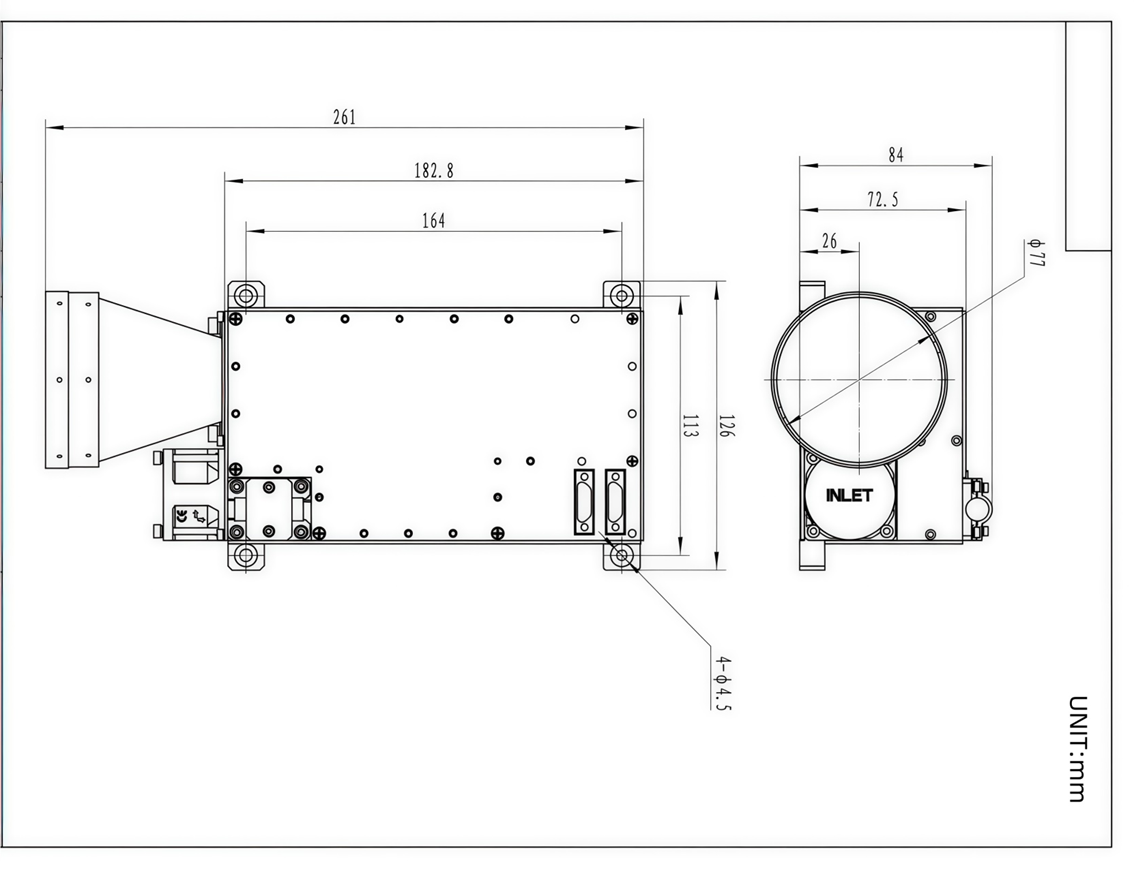

PHYSICAL SPECIFICATIONS
product height 0.084 m
product length 0.261 m
product weight 1.95 kg
product width 0.126 m
volume ≤261mm×126mm×84mm
