2000 Quad-Band Ku-Band PLL LNB
2000 Quad-Band Ku-Band PLL LNB
2000 Quad-Band Ku-Band PLL LNB
2000 Quad-Band Ku-Band PLL LNB

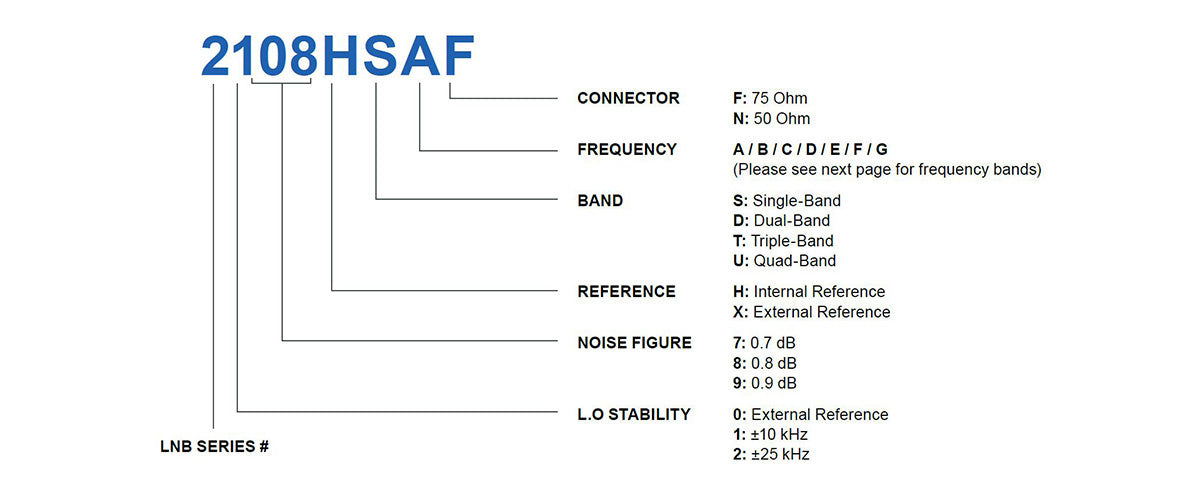

2009XUAF

2000 Quad-Band Ku-Band PLL LNB

2009 Series

Regular price MSRP: $1,000.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 11.20 GHz
input frequency band 2 11.20 - 11.70 GHz
input frequency band 3 11.70 - 12.25 GHz
input frequency band 4 12.25 - 12.75 GHz
LO frequency 1 9.75 GHz
LO frequency 2 10.25 GHz
LO frequency 3 10.75 GHz
LO frequency 4 11.30 GHz
LO stability External Reference
LO type PLL
noise figure max 0.9 dB
noise figure typ 1.0 dB
of onboard los Quad-Band
output frequency band 1 950 - 1450 MHz
output frequency band 2 950 - 1450 MHz
output frequency band 3 950 - 1500 MHz
output frequency band 4 950 - 1450 MHz
tone frequency 22 kHz ± 4 kHz
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 13V / 22kHz Tone
control signal 3 18V / No Tone
control signal 4 18V / 22kHz Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 6 dB p-p
input VSWR 2.3 : 1 max.
output P1dB + 5 dBm min.
phase noise 100Hz offset max -65 dBc/Hz
phase noise 100kHz offset max -93 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
power requirements +12 to +24 V
INTERFACE SPECIFICATIONS
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
temperature operational -40 to +70˚C
temperature storage -50 to +80˚C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 4.46 x 1.72 x 1.70 in
product weight 255 g
