3000 C-Band Single-Band PLL LNB
3000 C-Band Single-Band PLL LNB
3000 C-Band Single-Band PLL LNB
3000 C-Band Single-Band PLL LNB

3120N-800002

3000 C-Band Single-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 465 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
customization Conductive Gasket
input frequency band 1 3.40 - 4.20 GHz
LO frequency 1 5.15 GHz
LO type PLL
number of onboard LOs Single-Band
output frequency band 1 950 - 1750 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 62 dB
Gain Flatness (over full band) ≤ 6 dB p-p max.
input VSWR 2.2 : 1 max.
noise temperature 24K max., 20K typ.
output P1dB 9 dNm
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -80 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C

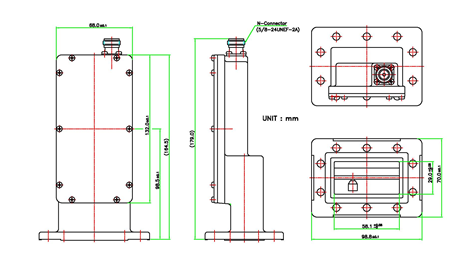

PHYSICAL SPECIFICATIONS
product height 99 mm
product length 145 mm
product weight 0.5 kg
product width 70 mm
