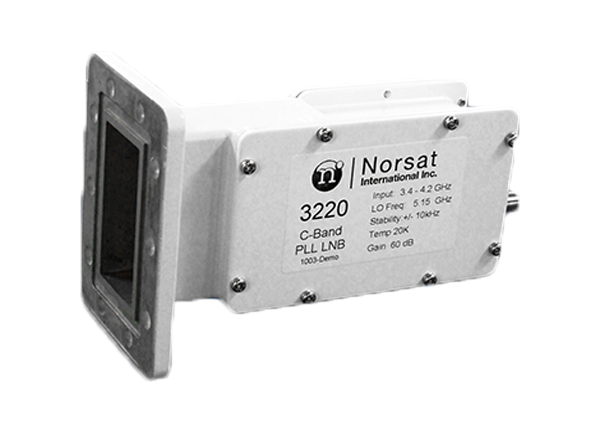

LNB-100078

C-Band Single-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
customization Modified Inrush Current
input frequency band 1 3.40 - 4.20 GHz
LO frequency 1 5.15 GHz
LO type PLL
noise figure max 24K
noise figure typ 20K
number of onboard LOs Single-Band
output frequency band 1 950 - 1750 MHz
Product Revision C
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 62 dB
Gain Flatness (over full band) ≤ 6 dB p-p max.
input VSWR 2.2 : 1 max.
output P1dB + 9 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -80 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C

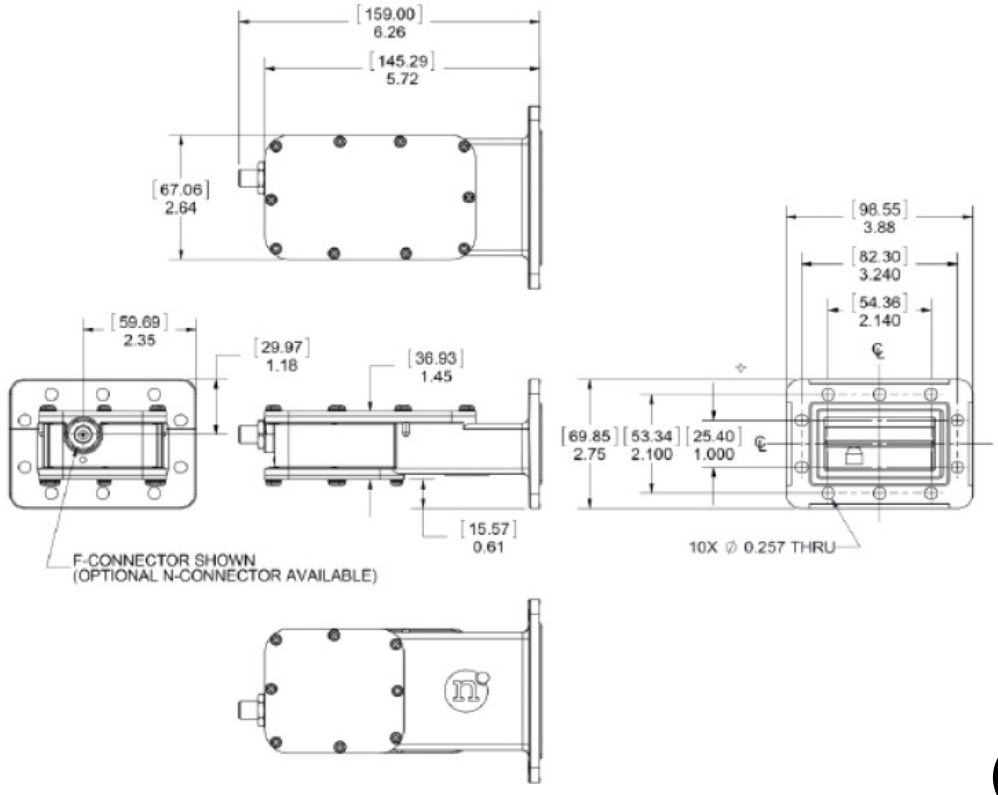

PHYSICAL SPECIFICATIONS
product height 99 mm
product length 145 mm
product weight 0.5 kg
product width 70 mm
