KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | E |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |

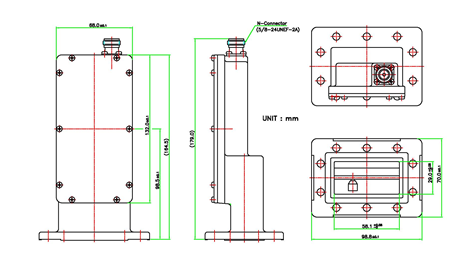

PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 4.0 - 4.8 GHz |
LO frequency 1 | 5.75 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 35K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 65 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 3 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -65 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 165 mm |
product weight | 0.575 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±4 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±4 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±4 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±4 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±4 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±4 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±25 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±25 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±25 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±25 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±25 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±25 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±2 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±2 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±2 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±2 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±2 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±2 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±3 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±3 kHz |
LO type | PLL |
noise figure max | 24K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±3 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±3 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±3 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±3 kHz |
LO type | PLL |
noise figure max | 32K |
noise figure typ | 30K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1750 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 55 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 6 dB p-p max. |
input VSWR | 2.2 : 1 max. |
output P1dB | + 9 dBm min. |
output VSWR | 2.5 : 1 max. |
phase noise 1kHz offset max | -80 dBc/Hz |
phase noise 10kHz offset max | -85 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 250 mA max. |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 99 mm |
product length | 145 mm |
product weight | 0.5 kg |
product width | 70 mm |
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in Canada |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | 190 mm x 100 mm x 70 mm |
Unit Package Weight | 0.68 kg |
