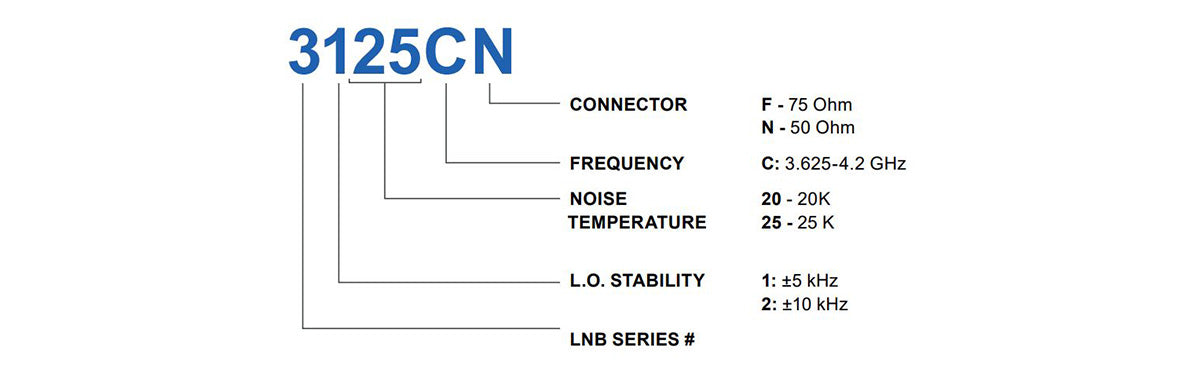

KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 25K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | D |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 1.9 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |

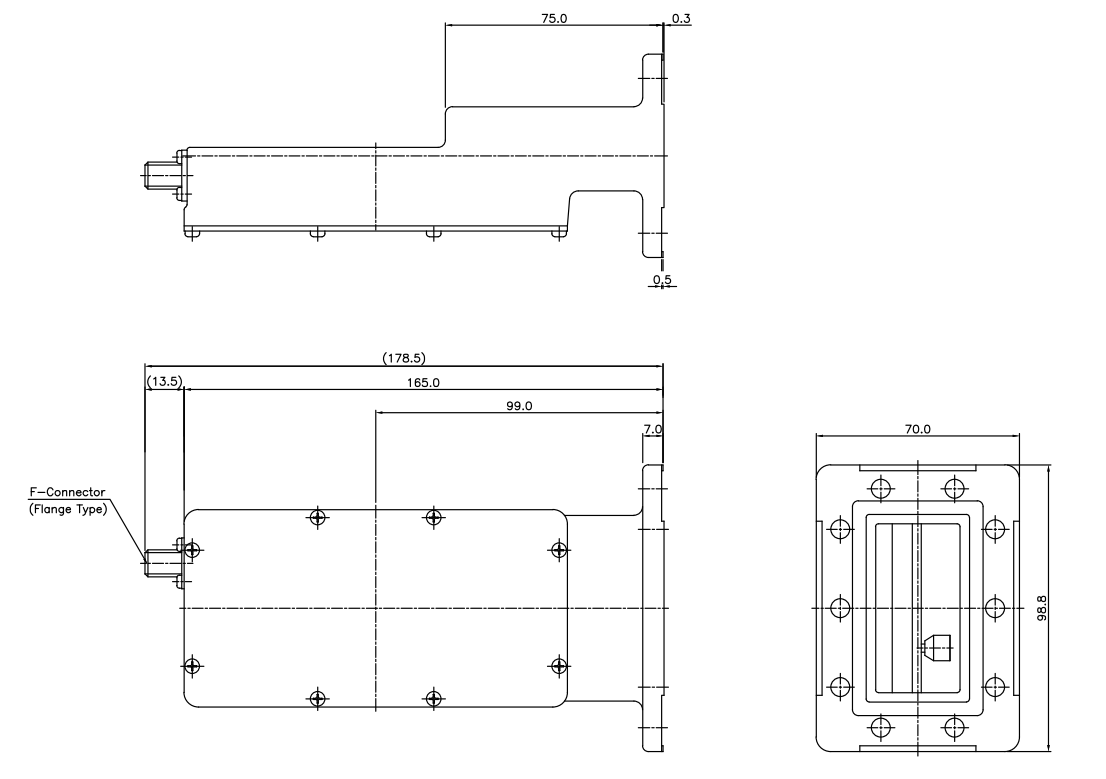

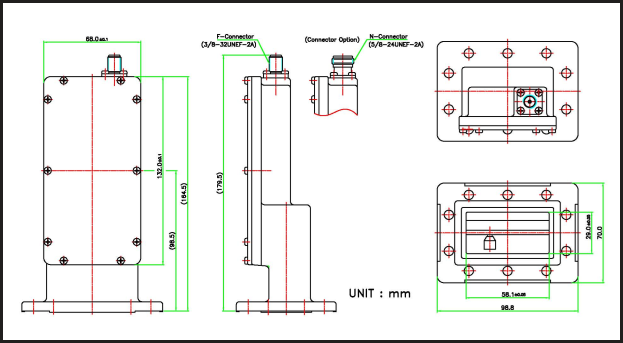

PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 25K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 1.9 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 1.9 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 25K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 25K |
noise figure typ | 20K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±5 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.625 - 4.20 GHz |
LO frequency 1 | 5.15 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 28K |
noise figure typ | 25K |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1525 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 70 dB |
conversion gain min | 60 dB |
conversion gain typ | 62 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 1kHz offset max | -73 dBc/Hz |
phase noise 10kHz offset max | -83 dBc/Hz |
phase noise 100kHz offset max | -93 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | CPR 229G waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 180 mm |
product weight | 0.575 kg |
product width | 100 mm |
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in Korea |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | 190 mm x 100 mm x 70 mm |
Unit Package Weight | 0.68 kg |
