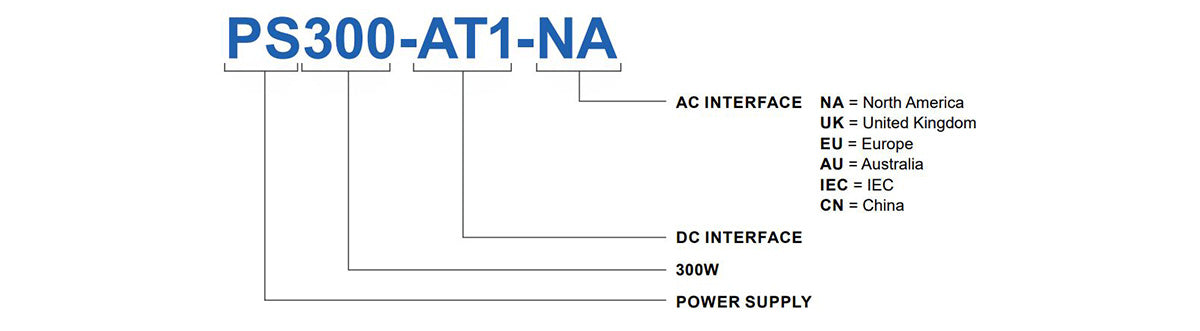

PS300-AT1-NA-EOL
300W ATOM Power Supply
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
Norsat's Power Supply provides power for ATOM BUCs.
| KEY SPECIFICATIONS | |
|---|---|
| color | Silver |
| input frequency band 1 | 47 - 63 Hz |
| output power rated | 300W |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| input voltage | 90 - 305 VAC |
| output voltage | +48 V |
| output voltage accuracy | +/- 5% of output voltage |
| output voltage ripple noise | 1.0V Peak-to-Peak |
| rated current | 6.25 A |
| INTERFACE SPECIFICATIONS | |
|---|---|
| AC input cable | 5m (16.5 ft), North America (NEMA 5/15) |
| DC output cable | 2m (6 ft) Socket reference: PT06E-12-4S-476 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -35 to +70°C |
| temperature storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| cooling | Passive / Fanless |
| product height | 44.5 mm |
| product length | 251 mm |
| product weight | 1.54 kg |
| product width | 98 mm |
