300W AC/DC Outdoor Power Supply
300W AC/DC Outdoor Power Supply
300W AC/DC Outdoor Power Supply
300W AC/DC Outdoor Power Supply

PS-300-MDKUE1

300W AC/DC Outdoor Power Supply

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
output power rated 300W
Product Revision B
ELECTRICAL SPECIFICATIONS
input frequency 47 - 63 Hz
input voltage 90 - 305 VAC
output voltage +48 V
output voltage accuracy ±5% of output voltage
output voltage ripple noise 2.0% pk-pk
rated current 6.25 A
INTERFACE SPECIFICATIONS
AC input cable length 5m (16.5ft)
DC output cable Socket reference: MS3106E16-11S
DC output cable length 0.6m (2ft)

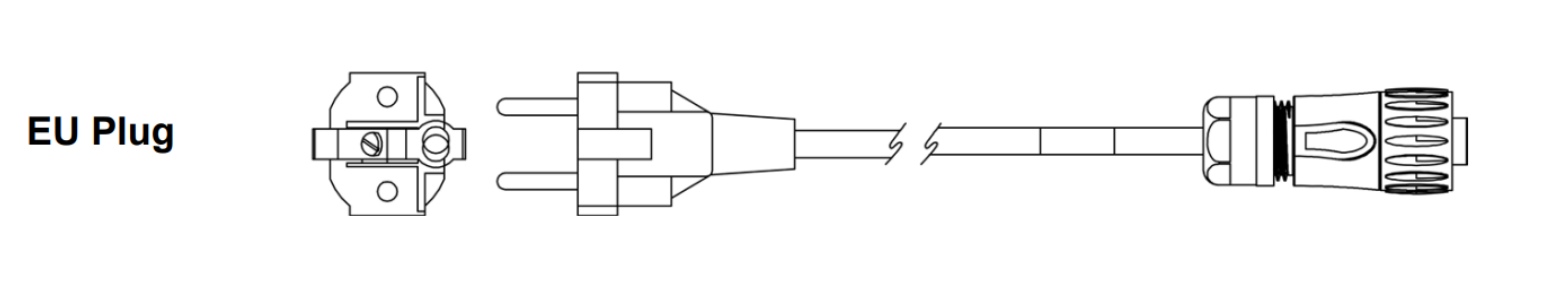

plug EU CEE 7/7
ENVIRONMENTAL SPECIFICATIONS
temperature operational -35 to +70°C
temperature storage -40 to +85˚C
PHYSICAL SPECIFICATIONS
color Norsat Tan
cooling Passive / Fanless
product height 44.5 mm
product length 251 mm
product weight 1.54 kg
product width 98 mm
