ACC-100491

100W/24VDC Desktop Power Supply

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
MTBF 711 Khrs, MIL-HDBK-217F
output power rated 100 W
Product Revision A
ELECTRICAL SPECIFICATIONS
efficiency 90% typ.
input current 1.4A / 115 VAC , 1.0A / 230 VAC
input voltage range 90 - 264 VAC, 125 - 373 VDC
output current range 0 - 4.5 A
output current rated 4A
output dc voltage 24V
output ripple and noise 180 mVp-p max.
output setup reset time 600ms, 30ms/230VAC 600ms, 30ms/115VAC full load
over load protection 110-150% rated output power
voltage tolerance +/- 3%
INTERFACE SPECIFICATIONS
connector P1J 2.1x5.5x11 mm
ENVIRONMENTAL SPECIFICATIONS
humidity 20% - 90% RH non-condensing
temperature operational -10°C to +50°C
temperature storage -20°C to +85°C

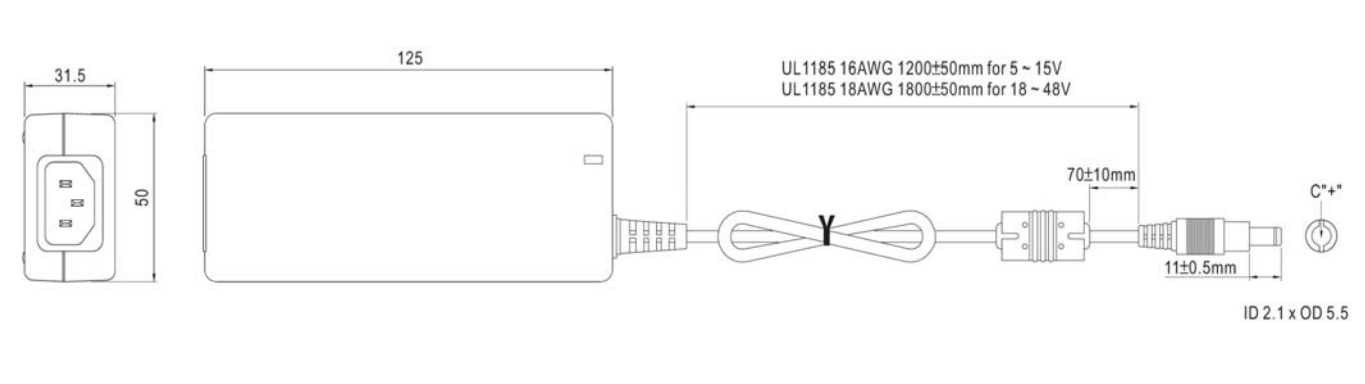

PHYSICAL SPECIFICATIONS
product height 31.5 mm
product length 125 mm
product weight 0.31 kg max
product width 50 mm
