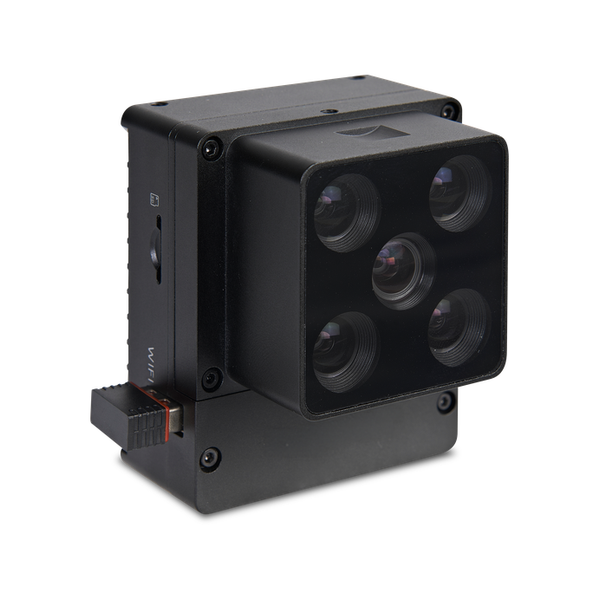

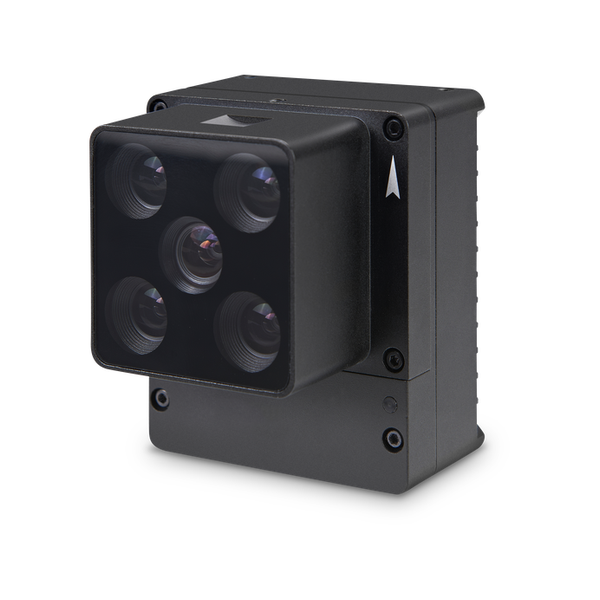

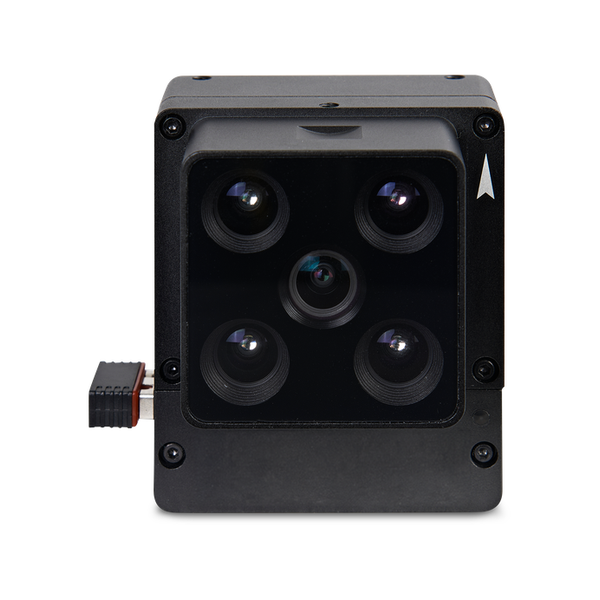

MC4

4-Band Multispectral Camera

ACCESSORIES

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band configuration 4 MS + 1 RGB
multispectral camera bit depth 12 bit
multispectral camera effective pixel 1.3 Mpx
multispectral camera FOV horizontal 36.76 deg
multispectral camera FOV vertical 31.33 deg
multispectral camera GSD 6.23 cm @ h120m
multispectral camera image format 16bit TIFF & 8bit reflectance JPEG
multispectral camera image size coverage 80 m x 67 m @ h120m
multispectral camera scanning mode Global shutter
multispectral camera sensor size 1/4"
photo frequency 1 Hz
RGB camera bit depth 8 bit
RGB camera effective pixel 8.0 Mpx
RGB camera FOV horizontal 37.57 deg
RGB camera FOV vertical 28.66 deg
RGB camera GSD 2.49 cm @ h120m
RGB camera image format 8bit JPEG
RGB camera image size coverage 82 m x 61 m @ h120m
RGB camera scanning mode Rolling shutter
RGB camera sensor size 1/4"
spectral band 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB
trigger mode External, Timed, Overlap rate trigger
Product Revision A
ELECTRICAL SPECIFICATIONS
operating voltage 9-26 VDC (typical 12 VDC)
power consumption 6W
INTERFACE SPECIFICATIONS
control method WIFI (WEB interface) / Ethernet / UART
storage medium Maximum 128 GB, UHS-I Speed Class 3 (U3) micro SD card
ENVIRONMENTAL SPECIFICATIONS
operating temperature -10 to +50 deg C
operating wind speed >= 1 m/s
temperature storage -30 to +70 deg C
PHYSICAL SPECIFICATIONS
installation interface 7 x M3
product height 50 mm
product length 65 mm
product weight 0.170 kg
product width 55 mm
