4000B Ku-Band Single-Band PLL LNB
4000B Ku-Band Single-Band PLL LNB
4000B Ku-Band Single-Band PLL LNB

4107BF

4000B Ku-Band Single-Band PLL LNB

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 1 items in stock!



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 12.25 - 12.75 GHz
LO frequency 1 11.30 GHz
LO stability ±150 kHz
LO type PLL
noise figure max 0.8 dB
noise figure typ 0.7 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision C
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 4 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 2 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -90 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C
temperature storage -40 to +80°C

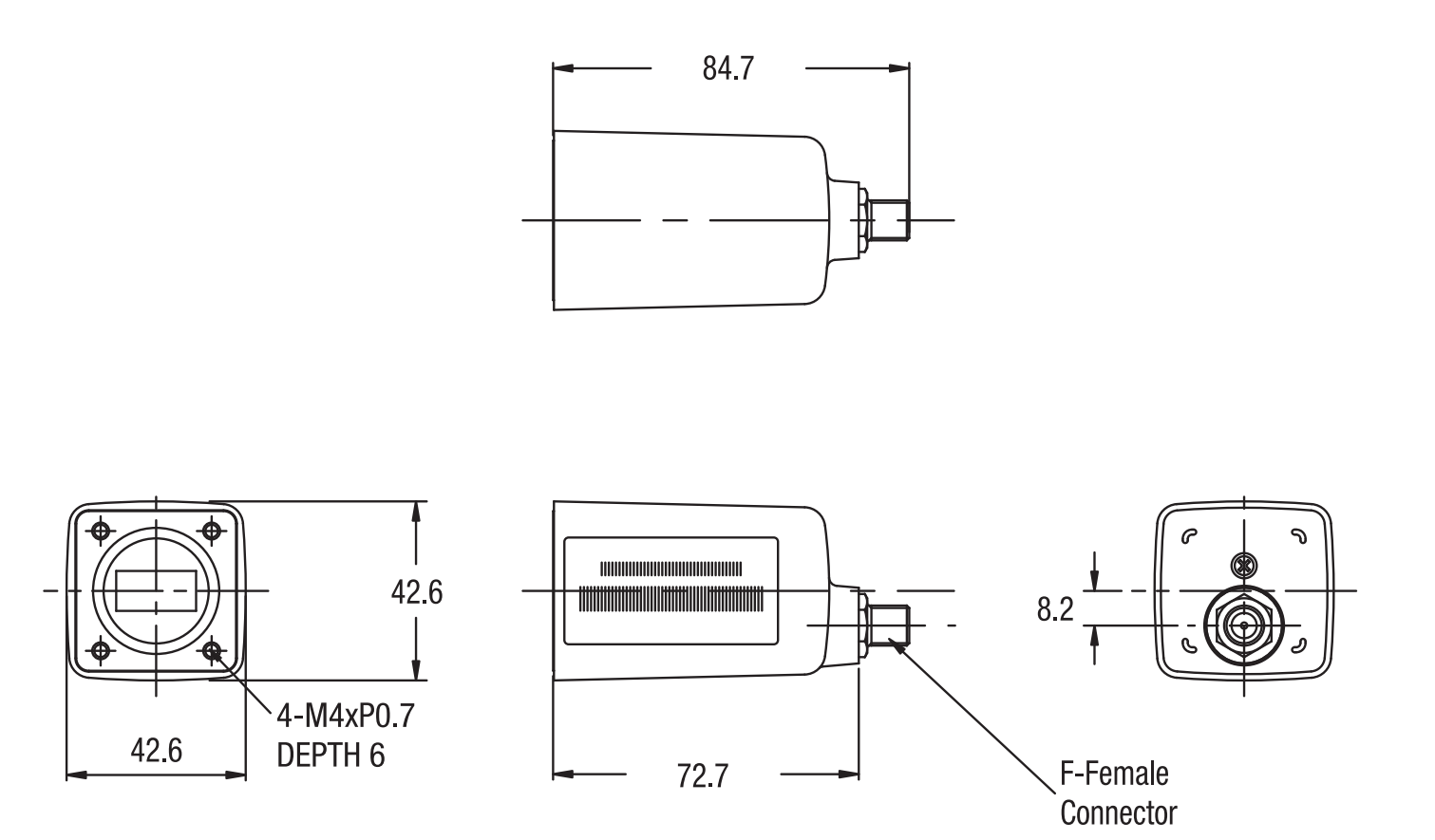

PHYSICAL SPECIFICATIONS
product height 43 mm
product length 85 mm
product weight 0.2 kg
product width 43 mm
