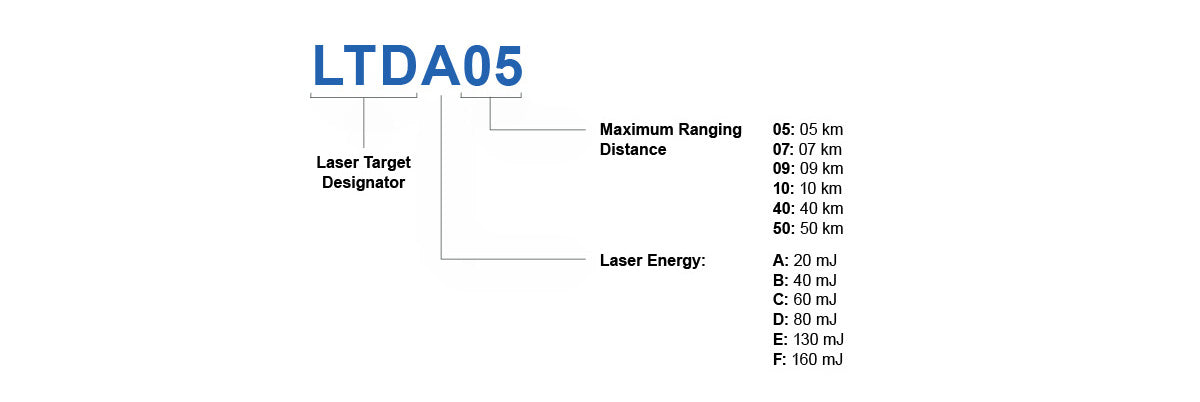

LTDB07

OPTIVIA 40mJ Laser Target Designator, 7000m

Laser Target Designator

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser target designator accuracy ± 2m
laser target designator illumination frequency 20Hz
laser target designator optical axis instability ≤0.03 mrad (1 sigma, per illumination cycle)
laser target designator ranging range ≥200 - 7000m (Visibility ≥10km, 2.3m x 2.3m target, target reflectivity ≥20%) (Ranging shall not be performed on targets within 100m)
laser target designator Wavelength 1064±3nm
laser target designator beam divergence ≤0.4 mrad
laser target designator continuous ranging duration 5min(1Hz), 2min(5Hz): 1Hz, ≤5min, rest≥5min; 5Hz, ≤2min, rest≥2min;
laser target designator illumination duration Single-Shot: Single cycle≥25s (interval: ≤15s, 8 cycles); Rapid-Shot: Single cycle: ≥60s (interval: 60s, 2 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes.
laser target designator illumination range ≥200m - 4000m
laser target designator laser energy 40mJ
ELECTRICAL SPECIFICATIONS
power consumption Avg ≤25W; Standby ≤5W; Peak Current ≤3A
power supply DC 22 - 32V (typ 28V)
INTERFACE SPECIFICATIONS
external interface communication interface RS-422 (Configurable RS232 & TTL Interfaces)
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -55°C to +70°C
PHYSICAL SPECIFICATIONS
product height 52 mm
product length 98 mm
product weight 0.6 kg
product width 65 mm
volume 98 x 65 x 52 mm
