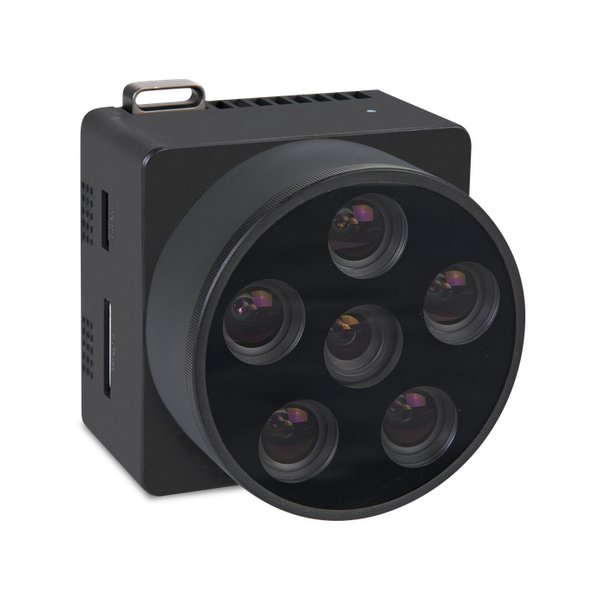

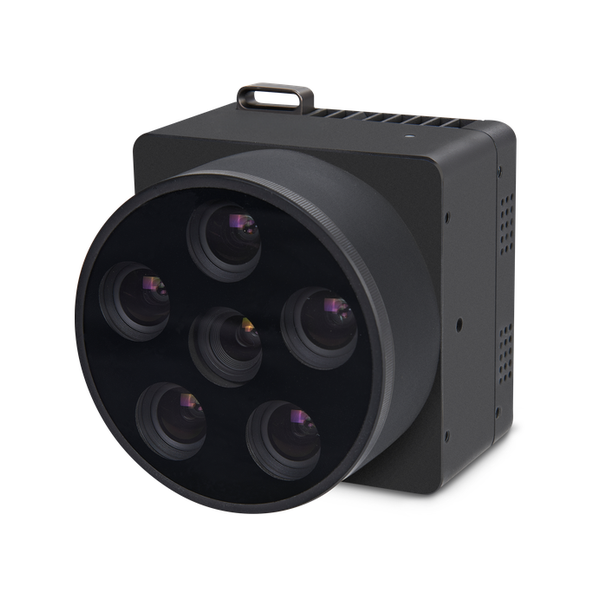

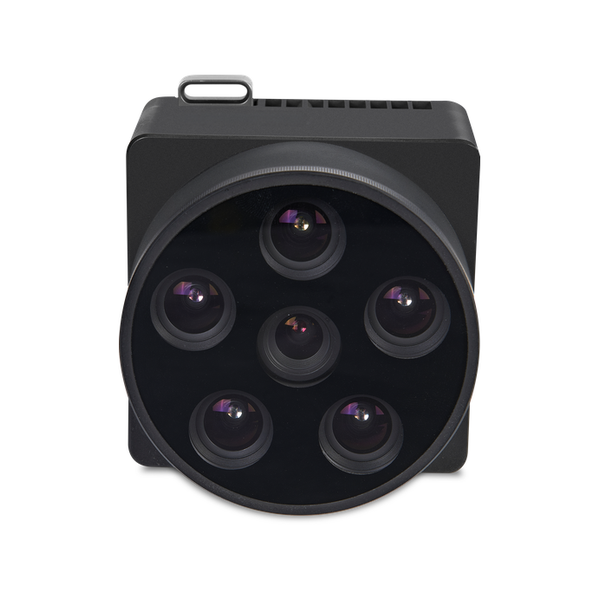

5-Band High-Resolution Multispectral + RGB Camera
5-Band High-Resolution Multispectral + RGB Camera
5-Band High-Resolution Multispectral + RGB Camera

MC5

5-Band High-Resolution Multispectral + RGB Camera

ACCESSORIES

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band configuration 5 MS + 1 RGB
multispectral camera bit depth 12 bit
multispectral camera effective pixel 3.2 Mpx
multispectral camera FOV horizontal 48.8 deg
multispectral camera FOV vertical 37.5 deg
multispectral camera GSD 5.28 cm @ h120m
multispectral camera image format 16bit TIFF & 8bit reflectance JPG
multispectral camera image size coverage 109 m x 82 m @ h120m
multispectral camera scanning mode Global shutter
multispectral camera sensor size 1/1.8"
photo frequency 1 Hz
RGB camera bit depth 8 bit
RGB camera effective pixel 12.3 Mpx
RGB camera FOV horizontal 47.4 deg
RGB camera FOV vertical 36.4 deg
RGB camera GSD 2.64 cm @ h120m
RGB camera image format 8bit JPG
RGB camera image size coverage 106 m x 79 m @ h120m
RGB camera scanning mode Rolling shutter
RGB camera sensor size 1/2.3"
spectral band 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB
trigger mode External, Timed, Overlap rate trigger
Product Revision A
ELECTRICAL SPECIFICATIONS
operating voltage 9-26 VDC (typical 12 VDC)
power consumption 16W
INTERFACE SPECIFICATIONS
control method WIFI (WEB interface) / Ethernet / UART
storage medium Default 128GB Solid State Flash Disk
ENVIRONMENTAL SPECIFICATIONS
operating temperature -10 to +50 deg C
operating wind speed >= 1 m/s
temperature storage -30 to +70 deg C
PHYSICAL SPECIFICATIONS
installation interface 8 x M3
product height 75 mm
product length 79 mm
product weight 0.410 kg
product width 79 mm
