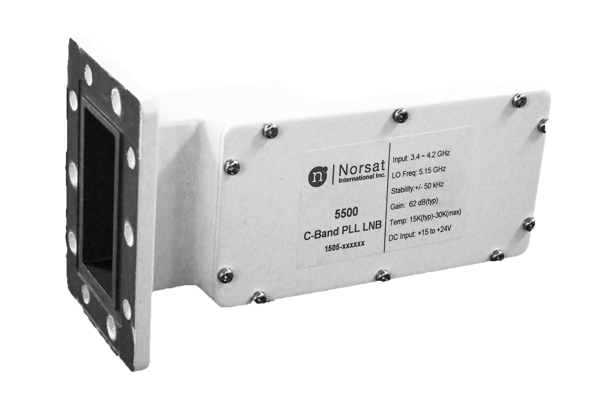

5000R C-Band Single-Band PLL LNB
5000R C-Band Single-Band PLL LNB
5000R C-Band Single-Band PLL LNB

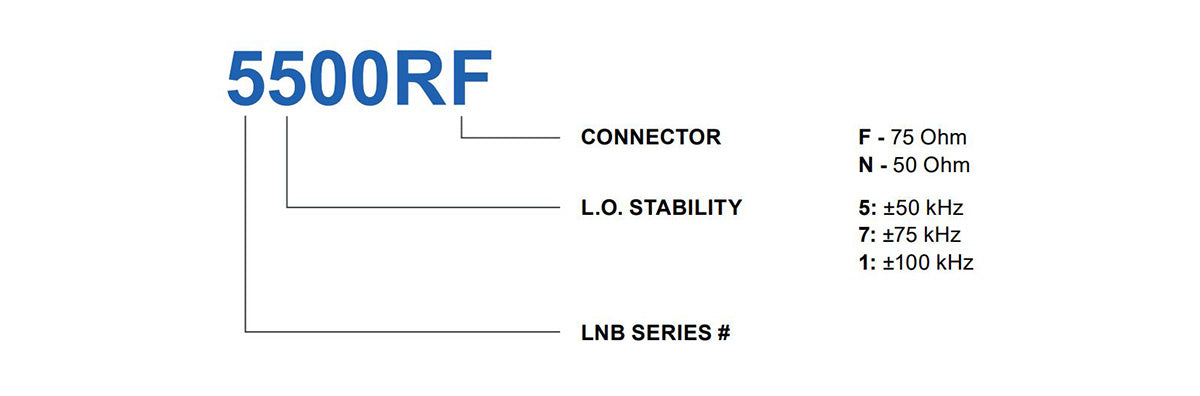

5100RF

5000R C-Band Single-Band PLL LNB

5000R Series

Regular price MSRP: $176.00
/
Quantity Available: 151
Next Availability: Not Applicable
Next Availability Lead Time: 8 - 10 Weeks

View Resellers Quantity

(Scroll to see specifications and documents)


Only 151 items in stock!



KEY SPECIFICATIONS
band C-Band
input frequency band 1 C-Band: 3.70 - 4.20 GHz
L.O. stability +/- 100 kHz
L.O. type PLL
noise figure 15 K
output frequency 1 L-Band: 950 - 1450 MHz

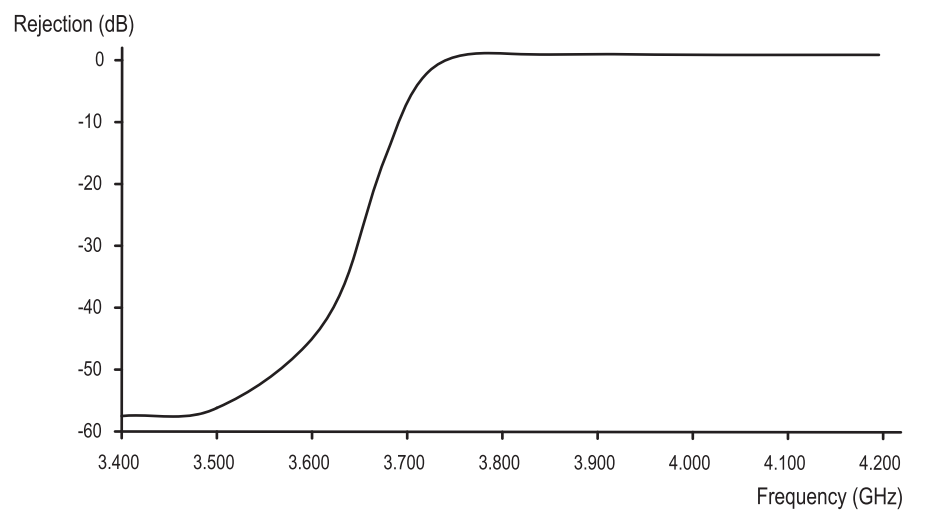

RF SPECIFICATIONS
conversion gain 62 dB typ., 55 dB min., 70 dB max.
Gain Flatness (over full band) ≤ 5 dB p-p max.
input VSWR 2.5 : 1 max.
L.O. frequency 1 5.15 GHz
output P1dB + 10 dBm min.
output VSWR 2.0 : 1 max.
phase noise 100khz offset -95 dBc/Hz
phase noise 10khz offset -80 dBc/Hz
phase noise 1khz offset -65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 250 mA max.
power requirements 12 - 24 V
INTERFACE SPECIFICATIONS
RF input connector CPR 229G waveguide grooved
RF output connector F-75 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -50 to +70°C
Weight 575 g (20.28 oz)
PHYSICAL SPECIFICATIONS
dimensions (LxWxH) 179 x 99 x 70 mm
