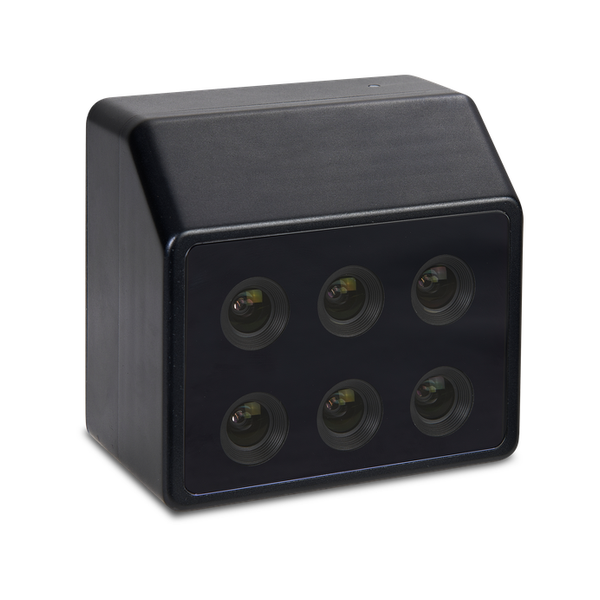

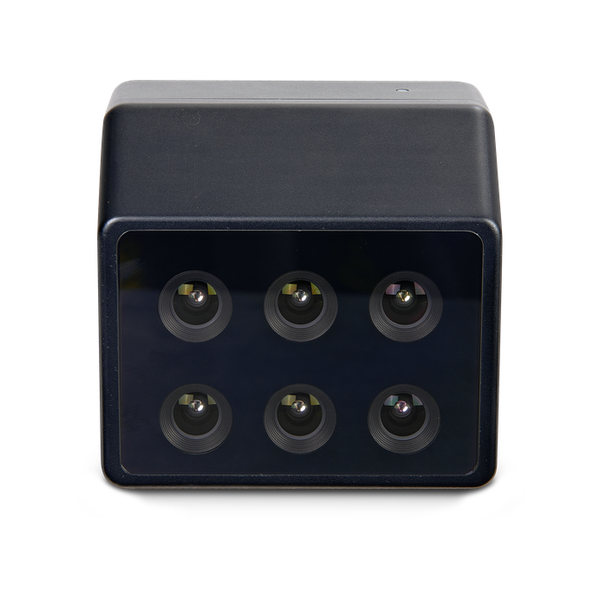

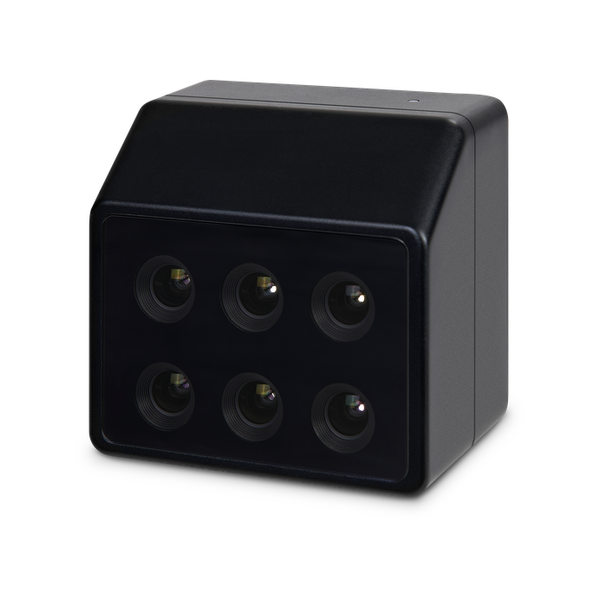

Name: 6-Band Multispectral Camera
Brand: Norsat International Inc.
SKU: MC6
Price: 36500.00 USD
Availability: InStock

MC6

6-Band Multispectral Camera

ACCESSORIES

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":52878331576687,"title":"Standard","option1":"Standard","option2":null,"option3":null,"sku":"MC6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"6-Band Multispectral Camera - Standard","public_title":"Standard","options":["Standard"],"price":3650000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"6972721380034","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52878331609455,"title":"Pro (DJI X-Port)","option1":"Pro (DJI X-Port)","option2":null,"option3":null,"sku":"MC6P","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"6-Band Multispectral Camera - Pro (DJI X-Port)","public_title":"Pro (DJI X-Port)","options":["Pro (DJI X-Port)"],"price":3960000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"6972721380010","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band configuration	6 Multispectral Channels
multispectral camera bit depth	12 bit
multispectral camera effective pixel	1.2 Mpx
multispectral camera FOV horizontal	49.6 deg
multispectral camera FOV vertical	38 deg
multispectral camera GSD	8.65 cm @ h120m
multispectral camera image format	16bit TIFF & 8bit reflectance JPEG
multispectral camera image size coverage	110 m x 83 m @ h120m
multispectral camera scanning mode	Global shutter
multispectral camera sensor size	1/3"
photo frequency	1 Hz
spectral band	450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 750nm@10nm, 840nm@30nm
trigger mode	External, Timed, Overlap rate, Cascade trigger
Product Revision	A

ELECTRICAL SPECIFICATIONS
operating voltage	9-26 VDC (typical 12 VDC)
power consumption	8W

INTERFACE SPECIFICATIONS
control method	WIFI (WEB interface) / Ethernet / UART
storage medium	Maximum 128 GB, UHS-I Speed Class 3 (U3) micro SD card

ENVIRONMENTAL SPECIFICATIONS
operating temperature	-10 to +50 deg C
operating wind speed	>= 1 m/s
temperature storage	-30 to +70 deg C

PHYSICAL SPECIFICATIONS
installation interface	4 x M3
product height	52 mm
product length	79 mm
product weight	0.275 kg
product width	74 mm

KEY SPECIFICATIONS
band configuration	6 Multispectral Channels
multispectral camera bit depth	12 bit
multispectral camera effective pixel	1.2 Mpx
multispectral camera FOV horizontal	49.6 deg
multispectral camera FOV vertical	38 deg
multispectral camera GSD	8.65 cm @ h120m
multispectral camera image format	16bit TIFF & 8bit JPEG
multispectral camera image size coverage	110 m x 83 m @ h120m
multispectral camera scanning mode	Global shutter
multispectral camera sensor size	1/3"
photo frequency	1 Hz
spectral band	450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 750nm@10nm, 840nm@30nm
trigger mode	Single, Timed, Overlap rate trigger
Product Revision	A

ELECTRICAL SPECIFICATIONS
operating voltage	Powered via DJI X-Port
power consumption	Powered via DJI X-Port

INTERFACE SPECIFICATIONS
control method	DJI Pilot
storage medium	Maximum 128 GB, UHS-I Speed Class 3 (U3) micro SD card

ENVIRONMENTAL SPECIFICATIONS
operating temperature	-10 to +50 deg C
operating wind speed	>= 1 m/s
temperature storage	-30 to +70 deg C

PHYSICAL SPECIFICATIONS
installation interface	DJI X-Port
product height	148 mm
product length	129 mm
product weight	0.640 kg
product width	157 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8525892110
Country of Origin	China
Ex Works	Richmond, BC, Canada
ECCN Number	N/A - No US Content
Warranty	1year
Unit Package Dimensions	-
Unit Package Weight	-
Total Aluminium Content	0.116 kg
Aluminum Country of Smelt and Cast	China
Total Aluminium Value	0.29
