30cm Ka-Band Antenna, One Dish Reflector, Feed, OMT
30cm Ka-Band Antenna, One Dish Reflector, Feed, OMT
30cm Ka-Band Antenna, One Dish Reflector, Feed, OMT
30cm Ka-Band Antenna, One Dish Reflector, Feed, OMT

ACC-101037

30cm Ka-Band Antenna, One Dish Reflector, Feed, OMT

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



ANTENNA SPECIFICATIONS
Axis Ratio ≤1.6dB
Feed output interface

Receiving: WR42

Transmit: WR28
First sidelobe level ≤-14dB
isolation

Tx: ≥85 dB
Rx: ≥85 dB
Polarization RX: RHCP; TX: LHCP

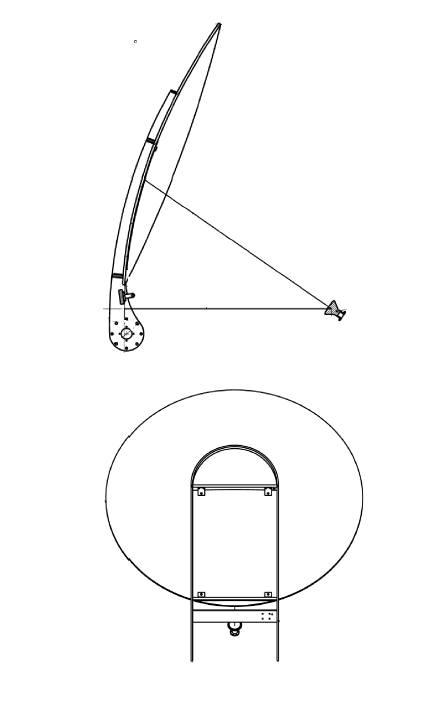

Reflector Aperture and Antenna Form 30cm Single Reflector Offside Parabolic
RF power capacity ≥50W
Rx frequency 17.70 - 20.20 GHz
Rx gain 32.5+20lg(f/19) dBi
Tx frequency 27.50 - 30.00 GHz
Tx gain 36.4+20lg(f/30) dBi
ENVIRONMENTAL SPECIFICATIONS
Dust resistance not less than 0.5g/m³
IP rating IP65
Operating Temperature -40 to +55℃
relative humidity 2% to 98% (25 ° C)
Salt Spray Resistance Adapted to working conditions in coastal areas
Storage Temperature -55 ° C to +70 ° C
Wind resistance

Working status: Stable operation at a wind speed of 13.6 m/s

Collection status: Undamaged at wind speed of 20.8 m/s
