ATJ-301

7-Channel Anti-Jamming Terminal

Anti-jamming Terminal

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.

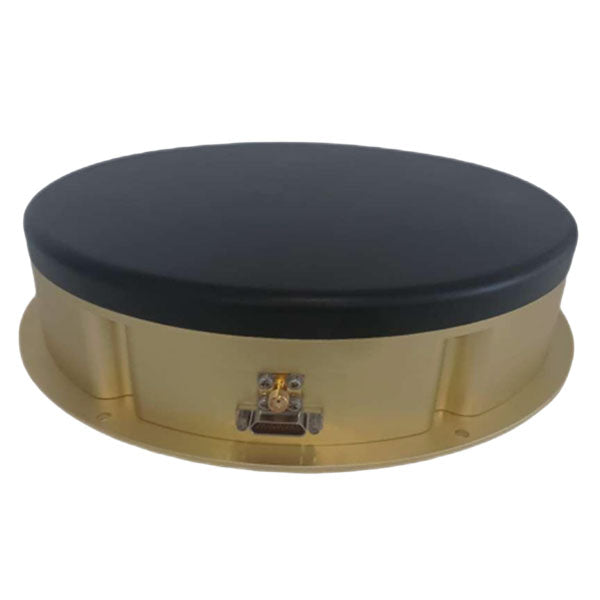

The ATJ-301 anti-jamming integrated unit supports reception, down-conversion, and amplification for 7 channels of BDS_B1, GPS_L1, GALILEO_E1, and GLO_G1 signals. It can combine and forward the radio frequency signals—after interference filtering—to the receiver. The unit is equipped with adaptive anti-jamming processing capabilities and can be widely applied to mobile vehicles, aircraft, and unmanned platforms. It delivers excellent navigation anti-jamming performance.

KEY SPECIFICATIONS
antenna array 7 channels B1/L1/E1/G1
anti burning ability ≥ 2W
channel noise coefficient < 1.7 dB
output parameters Time, position, and original observation
positioning system Beidou, GPS positioning, signal reception, decoding, and output
supported bands 1: BDS _B1: 1561.098MHz±2.046MHz; 2: GPS_ L1: 1575.42MHz±1.023MHz; 3: GAL_ E1: 1575.42MHz±12.276MHz; 4: GLO_G1: 1601.5 MHz ± 8.5 MHz
RF SPECIFICATIONS
positioning accuracy ≤ 10m
speed accuracy ≤ 0.2m/s
ELECTRICAL SPECIFICATIONS
cold start time ≤ 60s（Including self-checking time）
power consumption ≤ 12W
recapture time ≤ 6s

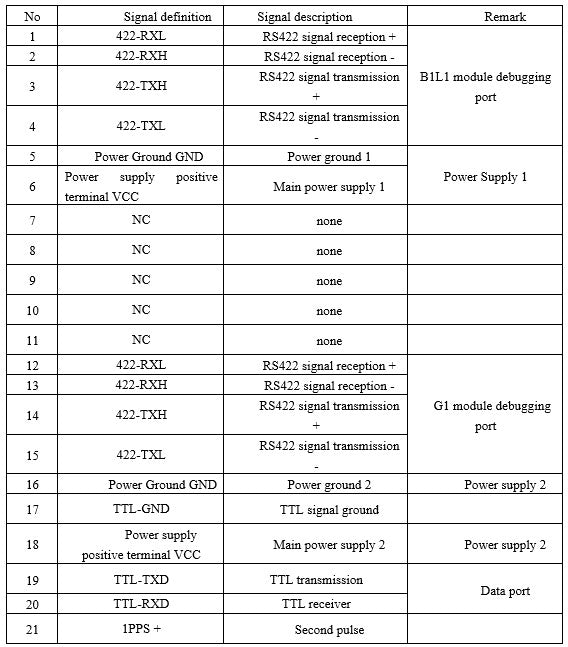

INTERFACE SPECIFICATIONS
anti interface type It has the ability to resist various suppression interferences such as broadband, sweep, and pulse in the BD-B1 and GPS_L1 frequency bands
interface signal ratio ≥ 90dB @ -130dBm (resist single broadband interface); ≥ 80dB @ -130dBm (resist three broadband interface)
number of anti interface device Simultaneously counteract 1-3 interference sources from different directions
number of channels 4 B1 and L1 channels
output PPS 1 PPS second pulse signal, TLL Level
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +55°C
temperature storage -45°C to +60°C
PHYSICAL SPECIFICATIONS
product height 63 mm
product length 165 mm
product weight 2 kg
product width 165 mm
reliability MTBF ≥ 5000 hours
reliability MTTR ≤ 20 minutes
