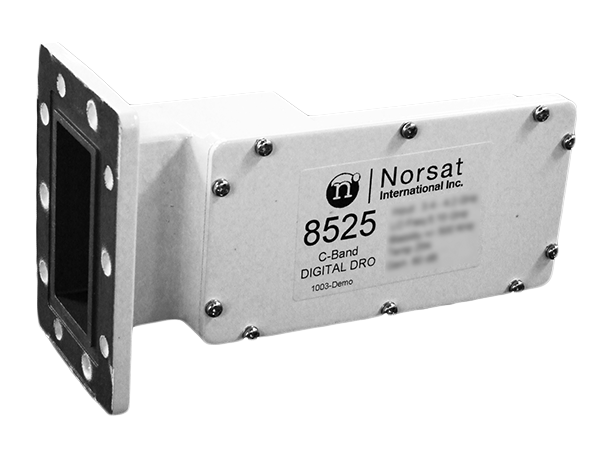

Name: 8000 C-Band Single-Band DRO LNB - DEMO
Brand: Norsat International Inc.
SKU: 8520F
Price: 66.00 USD
Availability: OutOfStock

8520F

8000 C-Band Single-Band DRO LNB - DEMO

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51690644701551,"title":"20K \/ F: 75 Ohm","option1":"20K","option2":"F: 75 Ohm","option3":null,"sku":"8520F","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"8000 C-Band Single-Band DRO LNB - DEMO - 20K \/ F: 75 Ohm","public_title":"20K \/ F: 75 Ohm","options":["20K","F: 75 Ohm"],"price":6600,"weight":0,"compare_at_price":3300,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51690644767087,"title":"25K \/ F: 75 Ohm","option1":"25K","option2":"F: 75 Ohm","option3":null,"sku":"8525F","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"8000 C-Band Single-Band DRO LNB - DEMO - 25K \/ F: 75 Ohm","public_title":"25K \/ F: 75 Ohm","options":["25K","F: 75 Ohm"],"price":6600,"weight":0,"compare_at_price":3200,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52111453618543,"title":"30K \/ F: 75 Ohm","option1":"30K","option2":"F: 75 Ohm","option3":null,"sku":"8530F","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"8000 C-Band Single-Band DRO LNB - DEMO - 30K \/ F: 75 Ohm","public_title":"30K \/ F: 75 Ohm","options":["30K","F: 75 Ohm"],"price":6600,"weight":0,"compare_at_price":3300,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3-year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.

KEY SPECIFICATIONS
input frequency	3.40 - 4.20 GHz
LO frequency	5.15 GHz
LO stability	±500 kHz
LO type	DRO
output frequency	950 to 1750 MHz
Product Revision	D

RF SPECIFICATIONS
conversion gain	64 dB
impedance	75 Ohm
input VSWR	2.0 : 1
noise temperature	20K
output P1dB	8 dBm
output VSWR	2.2 : 1

ELECTRICAL SPECIFICATIONS
current drain	130 mA
power requirements	+15 to +24 V supplied through center conductor of IF cable

INTERFACE SPECIFICATIONS
IF connector	F-Connector
input waveguide	CPR 229G
RF connector	WR-229 (Waterproof)

ENVIRONMENTAL SPECIFICATIONS
temperature range	-40°C to +60°C

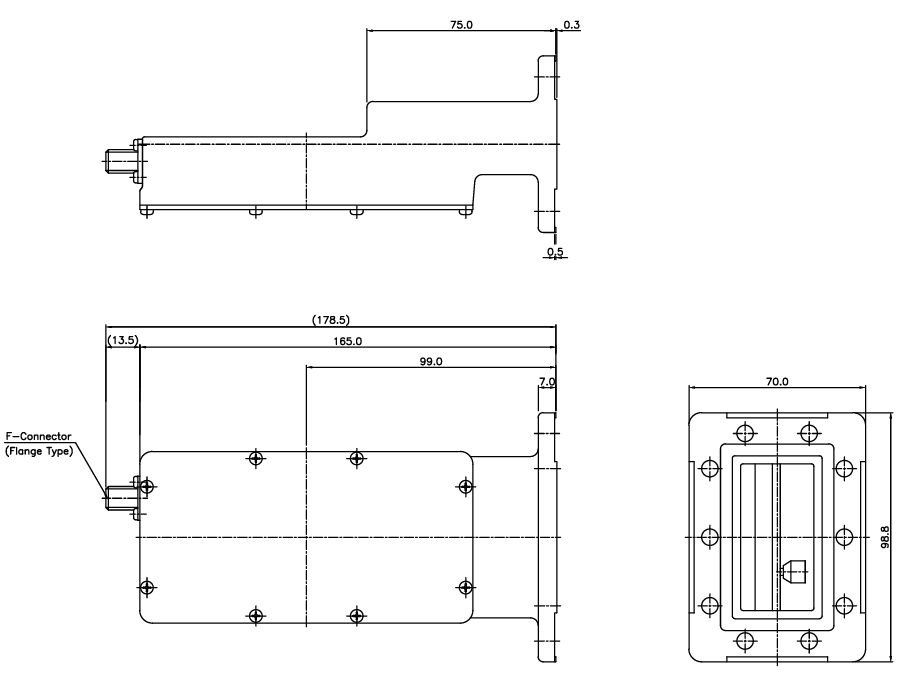

PHYSICAL SPECIFICATIONS
product dimensions height	70 mm
product dimensions length	180 mm
product dimensions width	100 mm
weight	0.425 kg

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	-
Unit Package Dimensions	190 x 115 x 77 mm
Unit Package Weight	0.585 kg
Total Aluminium Content	0.443 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 1.1075
