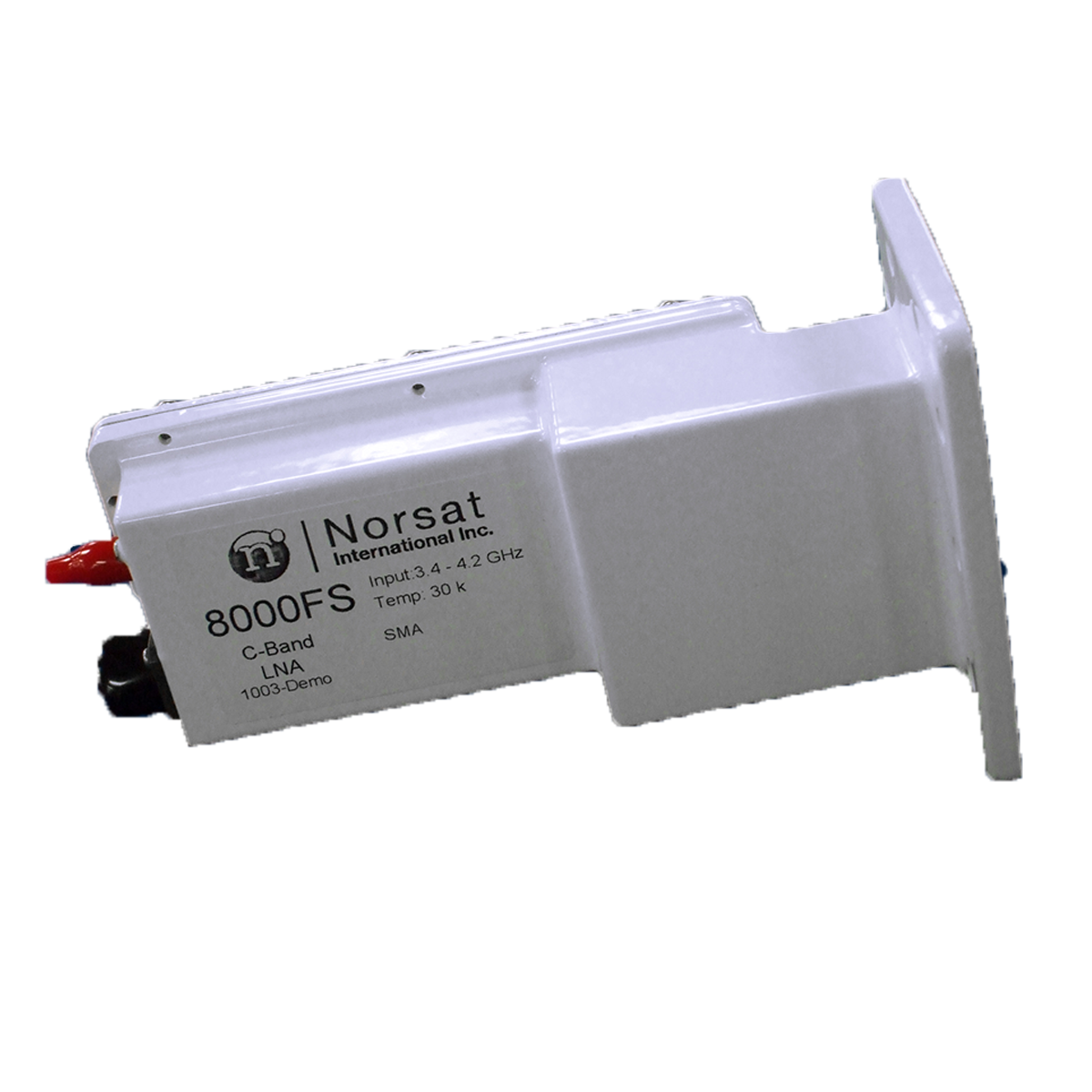

KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
noise figure | 30 K max. at room temp. |
Product Revision | A1.0 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
ELECTRICAL SPECIFICATIONS | |
---|---|

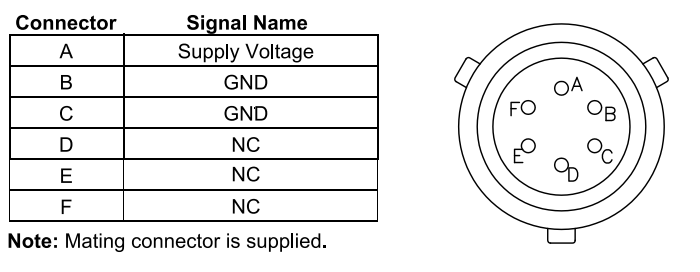

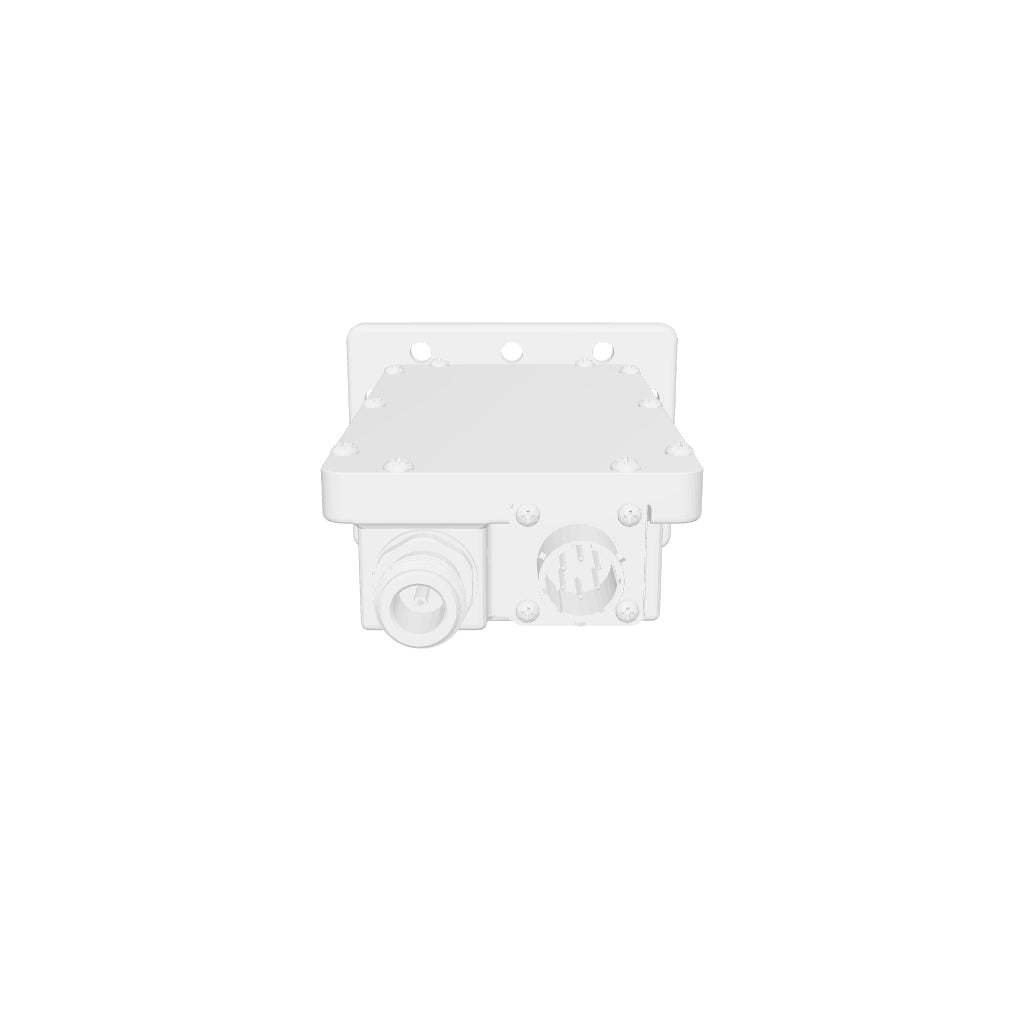

input power | MS3112E10-6P |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | CPR 229G waveguide grooved |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |

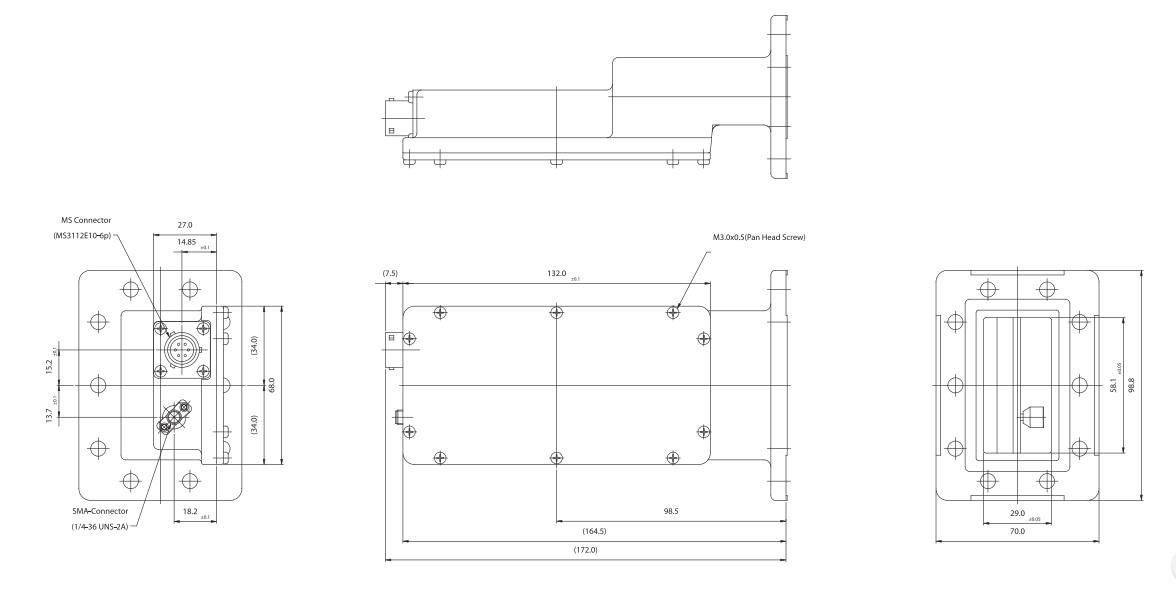

PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 181 mm |
product weight | 0.63 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
noise figure | 30 K max. at room temp. |
Product Revision | A1.0 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
ELECTRICAL SPECIFICATIONS | |
---|---|

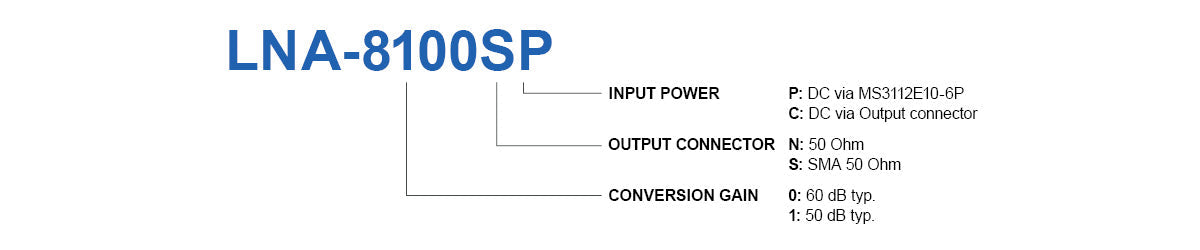

input power | Output Connector |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | CPR 229G waveguide grooved |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 181 mm |
product weight | 0.63 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
noise figure | 30 K max. at room temp. |
Product Revision | A1.0.0 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
ELECTRICAL SPECIFICATIONS | |
---|---|
input power | Output Connector |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | CPR 229G waveguide grooved |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 181 mm |
product weight | 0.63 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
noise figure | 30 K max. at room temp. |
Product Revision | A1.0.0 |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
ELECTRICAL SPECIFICATIONS | |
---|---|
input power | Output Connector |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | CPR 229G waveguide grooved |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 181 mm |
product weight | 0.63 kg |
product width | 100 mm |
KEY SPECIFICATIONS | |
---|---|
band | C-Band |
input frequency band 1 | 3.40 - 4.20 GHz |
noise figure | 30 K max. at room temp. |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain typ | 50 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.2 : 1 max. |
ELECTRICAL SPECIFICATIONS | |
---|---|
input power | Output Connector |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | CPR 229G waveguide grooved |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 0 - 95% |
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 70 mm |
product length | 181 mm |
product weight | 0.63 kg |
product width | 100 mm |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in the Republic of Korea |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | 190 x 115 x 77 mm |
Unit Package Weight | 0.64 kg |
Total Aluminium Content | 0.435 kg |
Aluminum Country of Smelt and Cast | Made in the Republic of Korea |
Total Aluminium Value | $ 1.0875 |
