LNA-100143

Single-Band C-Band LNA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 2 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.40 - 4.80 GHz
noise figure 45K max.
Product Revision A
RF SPECIFICATIONS
conversion gain min 60 dB
Gain Flatness ±3 dB max.
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 200 mA max.
power connector MS3112E10-6P
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector CPR 229G waveguide grooved
RF output connector N-Connector
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -15°C to +50°C

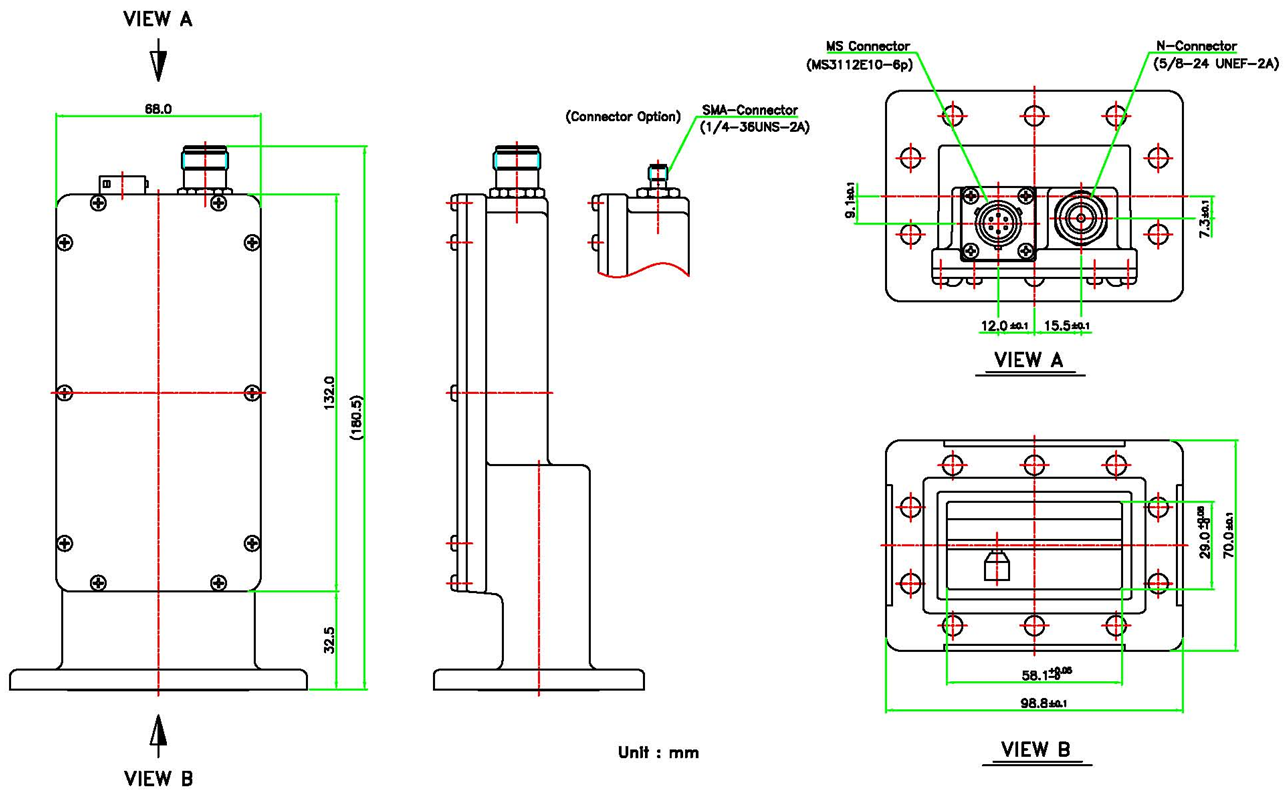

PHYSICAL SPECIFICATIONS
product height 70.0 mm
product length 164.5 mm
product weight 0.63 kg
product width 98.8 mm
