| RF SPECIFICATIONS | |
|---|---|
| laser target designator accuracy | ± 2m |
| laser target designator illumination frequency | 20Hz |
| laser target designator optical axis instability | ≤0.03 mrad |
| laser target designator ranging range | 200 - 40000m |
| laser target designator Wavelength | 1064±3nm |
| laser target designator beam divergence | 0.12 - 0.3 mrad |
| laser target designator continuous ranging duration | ≥1min(5Hz) |
| laser target designator illumination duration | Single cycle: ≥60s (interval: 60s, 2 cycles); Single cycle: ≥17s (interval: 10s, 8 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
| laser target designator illumination range | ≥200m - 8000m |
| laser target designator laser energy | 80mJ |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg ≤80W |
| power supply | DC 22 - 32V (typ 28V) |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -55°C to +70°C |

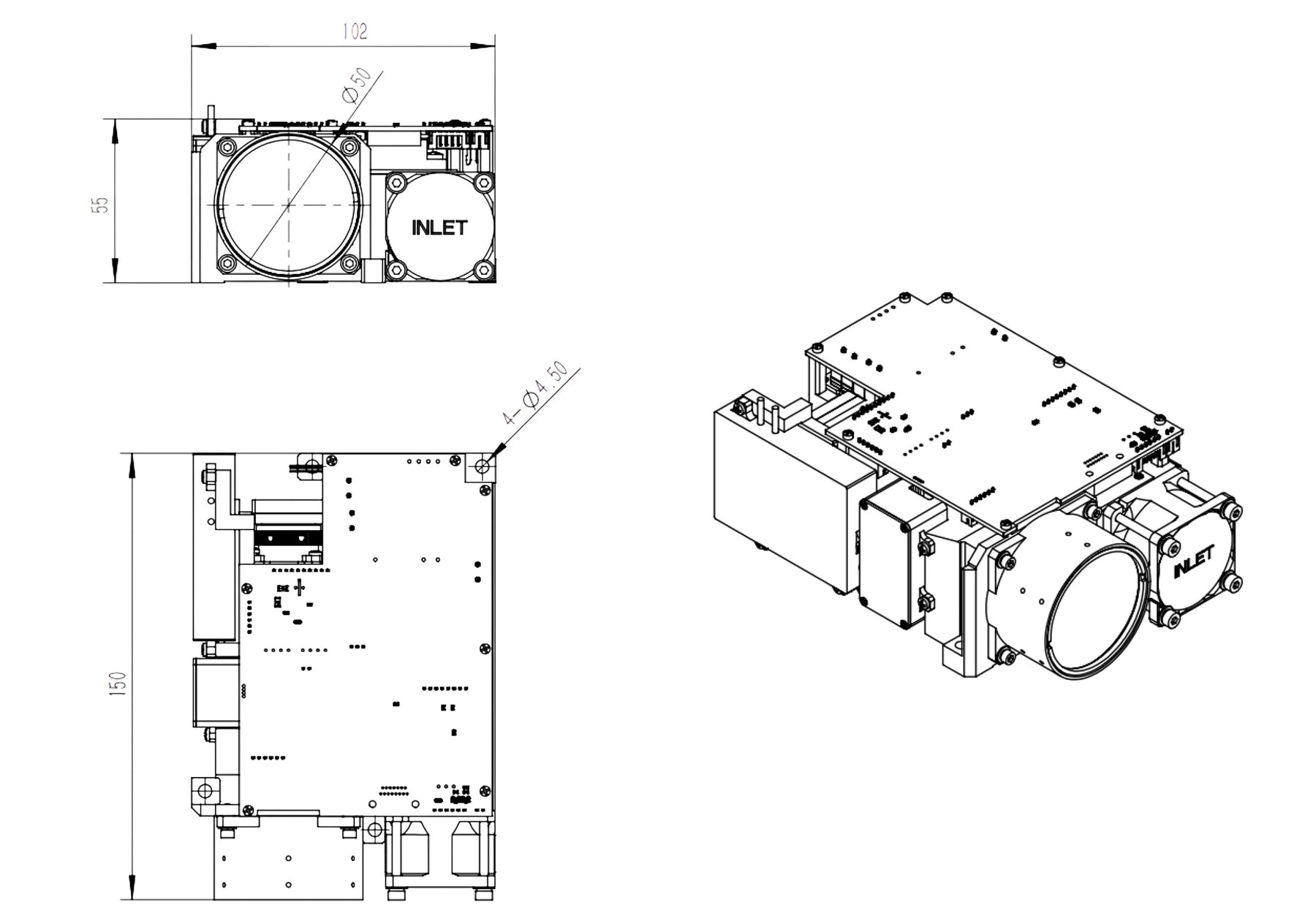

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 55 mm |
| product length | 150 mm |
| product weight | 0.8 kg |
| product width | 102 mm |
| volume | ≤150 x 102 x 55 mm |
