9000 Dual-Band Ka-Band Ext REF LNB
9000 Dual-Band Ka-Band Ext REF LNB
9000 Dual-Band Ka-Band Ext REF LNB

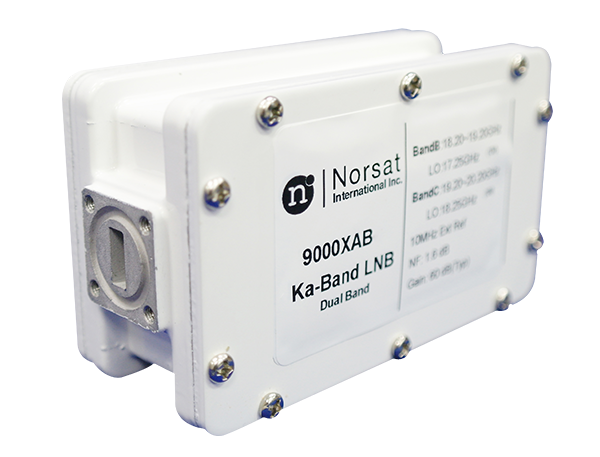

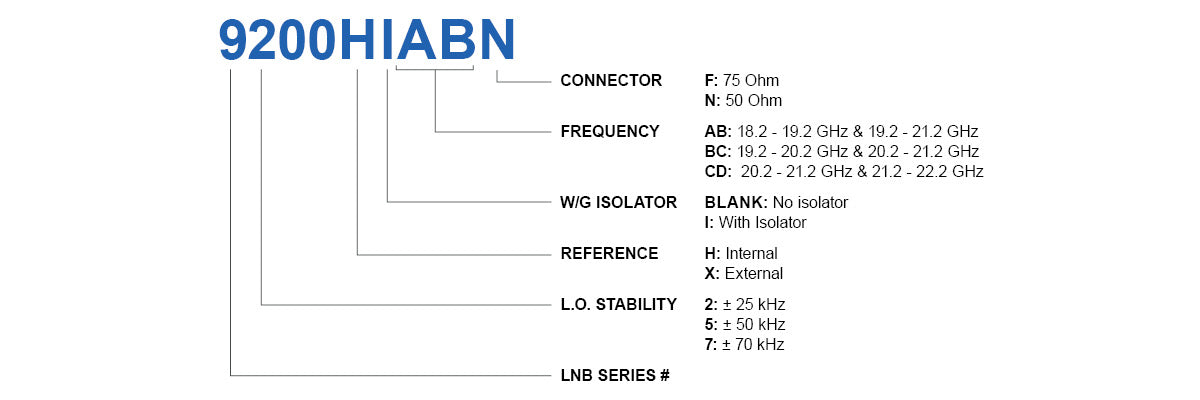

9000XABN

9000 Dual-Band Ka-Band Ext REF LNB

9000XAD Series

Regular price
$1,443.00
/
Quantity Available: 5
Next Availability: 0
Next Availability Lead Time: 6 - 8 Weeks
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


Only 5 items in stock!



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 18.20 - 19.20 GHz
input frequency band 2 19.20 - 20.20 GHz
LO frequency 1 17.25 GHz
LO frequency 2 18.25 GHz
LO stability Ext Ref
LO type External
noise figure max 1.6 dB
noise figure typ 1.3 dB
number of onboard LOs Dual-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
Product Revision D
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 18V / No Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 5 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 100kHz offset max Depends on External Reference
phase noise 10kHz offset max Depends on External Reference
phase noise 1kHz offset max Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption 400 mA
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
isolator No Isolator
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C
PHYSICAL SPECIFICATIONS

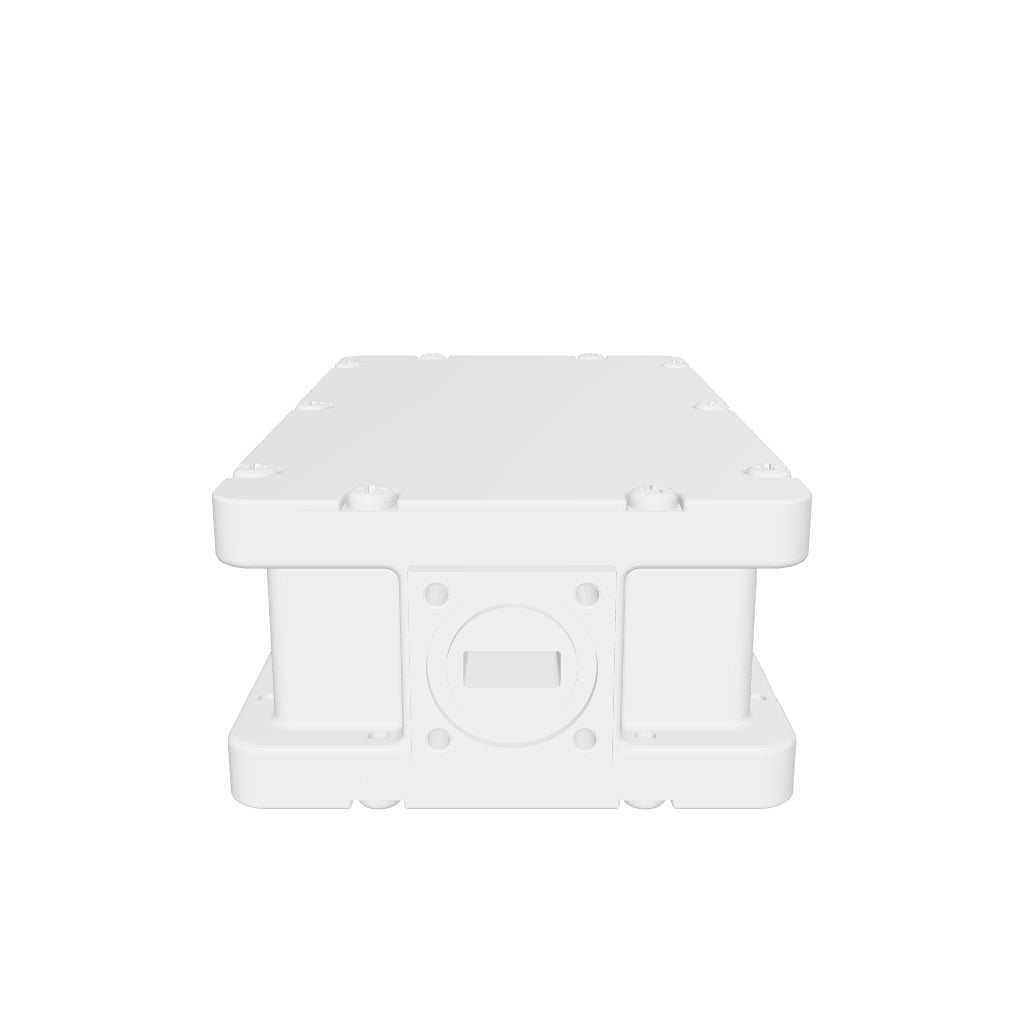

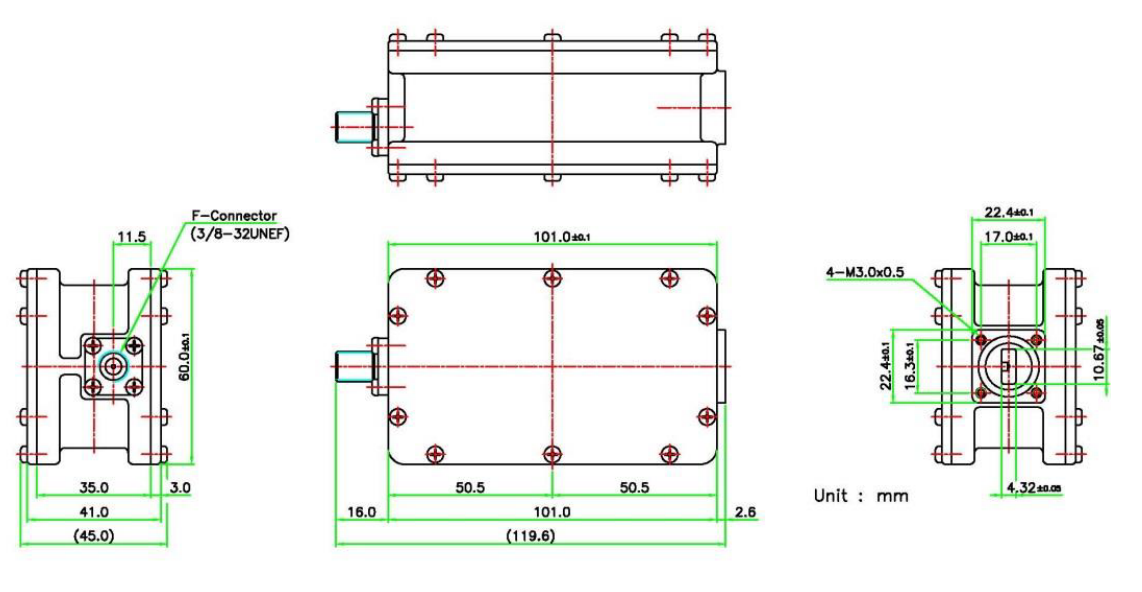

product dimensions (LxWxH) 120 x 60 x 45 mm
product weight 0.42 kg
