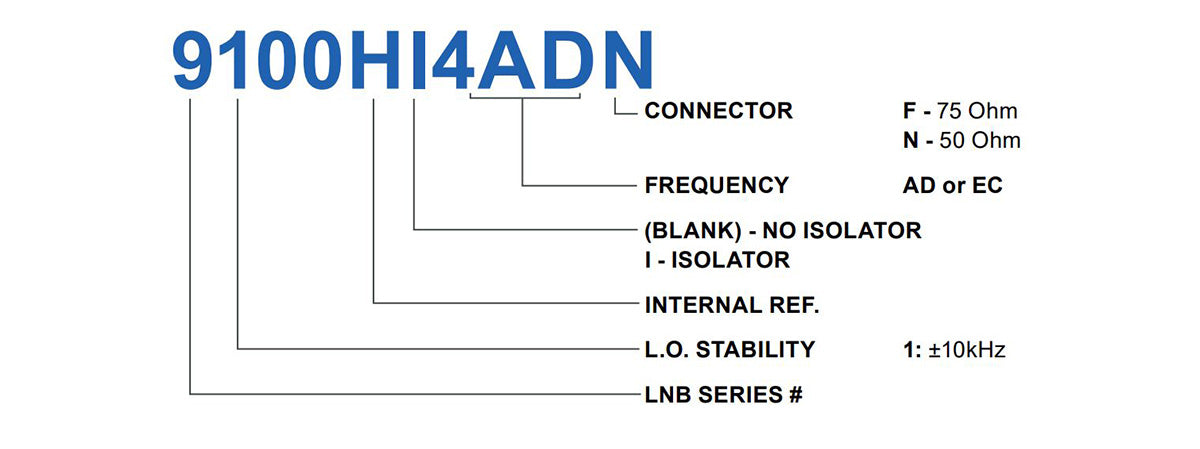

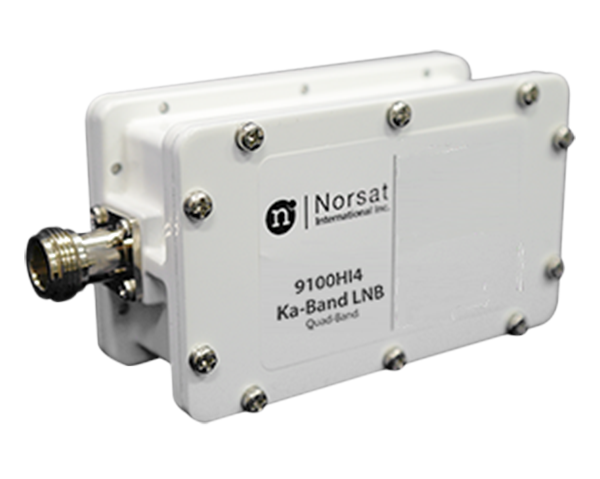

KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 17.20 - 18.20 GHz |
input frequency band 2 | 18.20 - 19.20 GHz |
input frequency band 3 | 19.20 - 20.20 GHz |
input frequency band 4 | 20.20 - 21.20 GHz |
LO frequency 1 | 16.25 GHz |
LO frequency 2 | 17.25 GHz |
LO frequency 3 | 18.25 GHz |
LO frequency 4 | 19.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | C |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 1.3 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
isolator | With Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |

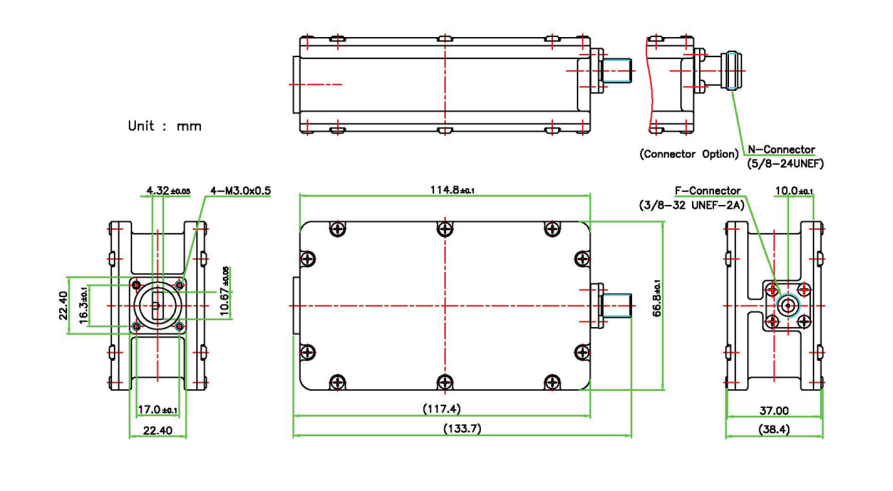

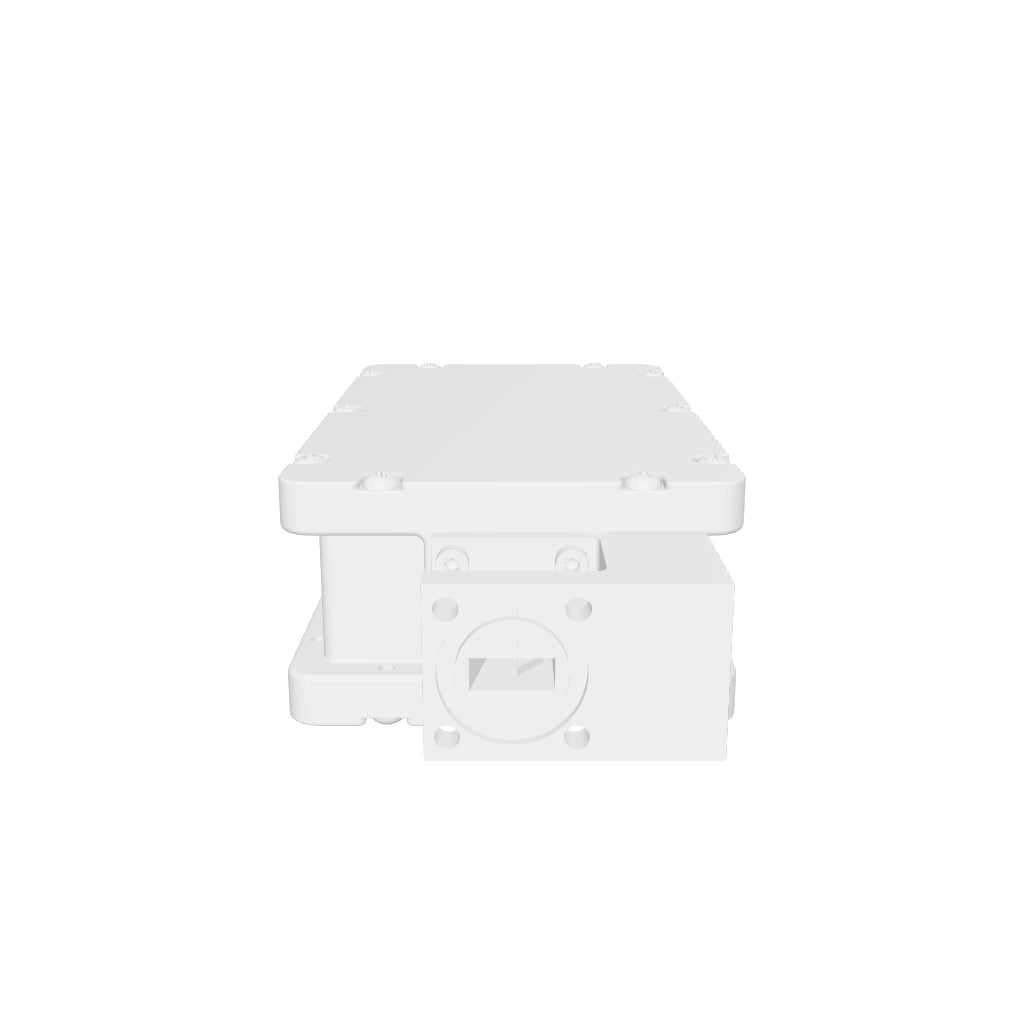

PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 156 mm |
product weight | 0.56 kg |
product width | 67 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 17.20 - 18.20 GHz |
input frequency band 2 | 18.20 - 19.20 GHz |
input frequency band 3 | 19.20 - 20.20 GHz |
input frequency band 4 | 20.20 - 21.20 GHz |
LO frequency 1 | 16.25 GHz |
LO frequency 2 | 17.25 GHz |
LO frequency 3 | 18.25 GHz |
LO frequency 4 | 19.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 3.5 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
isolator | No Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 134 mm |
product weight | 0.56 kg |
product width | 67 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 17.20 - 18.20 GHz |
input frequency band 2 | 18.20 - 19.20 GHz |
input frequency band 3 | 19.20 - 20.20 GHz |
input frequency band 4 | 20.20 - 21.20 GHz |
LO frequency 1 | 16.25 GHz |
LO frequency 2 | 17.25 GHz |
LO frequency 3 | 18.25 GHz |
LO frequency 4 | 19.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 1.3 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
isolator | With Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 156 mm |
product weight | 0.56 kg |
product width | 67 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 17.20 - 18.20 GHz |
input frequency band 2 | 18.20 - 19.20 GHz |
input frequency band 3 | 19.20 - 20.20 GHz |
input frequency band 4 | 20.20 - 21.20 GHz |
LO frequency 1 | 16.25 GHz |
LO frequency 2 | 17.25 GHz |
LO frequency 3 | 18.25 GHz |
LO frequency 4 | 19.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 3.5 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
isolator | No Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 134 mm |
product weight | 0.56 kg |
product width | 67 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
input frequency band 2 | 19.20 - 20.20 GHz |
input frequency band 3 | 20.20 - 21.20 GHz |
input frequency band 4 | 21.20 - 22.20 GHz |
LO frequency 1 | 17.25 GHz |
LO frequency 2 | 18.25 GHz |
LO frequency 3 | 19.25 GHz |
LO frequency 4 | 20.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 1.3 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
isolator | With Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 156 mm |
product weight | 0.56 kg |
product width | 67 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
input frequency band 2 | 19.20 - 20.20 GHz |
input frequency band 3 | 20.20 - 21.20 GHz |
input frequency band 4 | 21.20 - 22.20 GHz |
LO frequency 1 | 17.25 GHz |
LO frequency 2 | 18.25 GHz |
LO frequency 3 | 19.25 GHz |
LO frequency 4 | 20.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 3.5 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
isolator | No Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 134 mm |
product weight | 0.56 kg |
product width | 67 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
input frequency band 2 | 19.20 - 20.20 GHz |
input frequency band 3 | 20.20 - 21.20 GHz |
input frequency band 4 | 21.20 - 22.20 GHz |
LO frequency 1 | 17.25 GHz |
LO frequency 2 | 18.25 GHz |
LO frequency 3 | 19.25 GHz |
LO frequency 4 | 20.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 1.3 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
isolator | With Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 156 mm |
product weight | 0.56 kg |
product width | 67 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
input frequency band 2 | 19.20 - 20.20 GHz |
input frequency band 3 | 20.20 - 21.20 GHz |
input frequency band 4 | 21.20 - 22.20 GHz |
LO frequency 1 | 17.25 GHz |
LO frequency 2 | 18.25 GHz |
LO frequency 3 | 19.25 GHz |
LO frequency 4 | 20.25 GHz |
LO stability | ±10 kHz |
LO type | PLL |
noise figure max | 2.0 dB |
noise figure typ | 1.5 dB |
number of onboard LOs | Quad-Band |
output frequency band 1 | 950 - 1950 MHz |
output frequency band 2 | 950 - 1950 MHz |
output frequency band 3 | 950 - 1950 MHz |
output frequency band 4 | 950 - 1950 MHz |
tone frequency | 22 kHz ± 4 kHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
control signal 1 | 13V / No Tone |
control signal 2 | 13V / 22kHz Tone |
control signal 3 | 18V / No Tone |
control signal 4 | 18V / 22kHz Tone |
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p max. |
input VSWR | 3.5 : 1 max. |
output P1dB | + 10 dBm min. |
output VSWR | 2.2 : 1 max. |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 350 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
isolator | No Isolator |
RF input connector | WR-42 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 39 mm |
product length | 134 mm |
product weight | 0.56 kg |
product width | 67 mm |
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in the Republic of Korea |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | 190 mm x 115 mm x 77 mm |
Unit Package Weight | 0.57 kg |
Total Aluminium Content | 0.317 Kg |
Aluminum Country of Smelt and Cast | Made in the Republic of Korea |
Total Aluminium Value | $ 0.7925 |
![]() |
![]() |
![]() |
