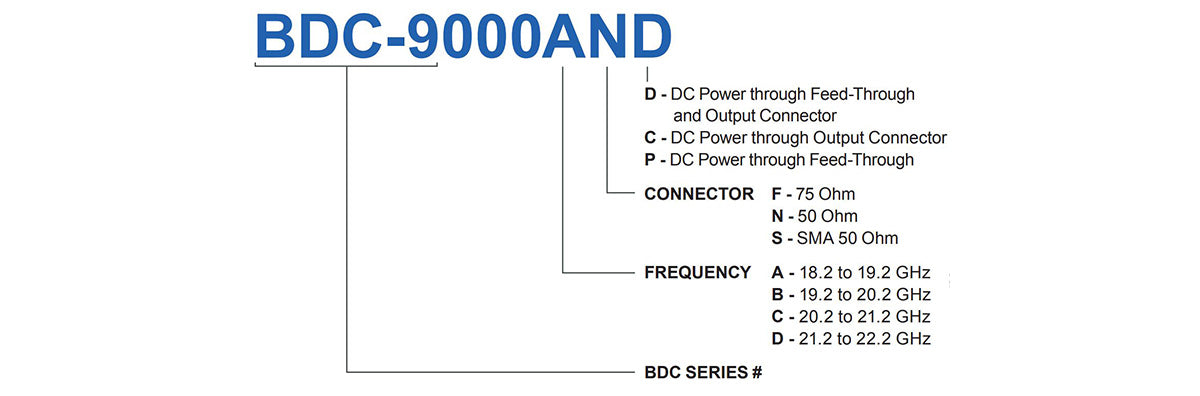

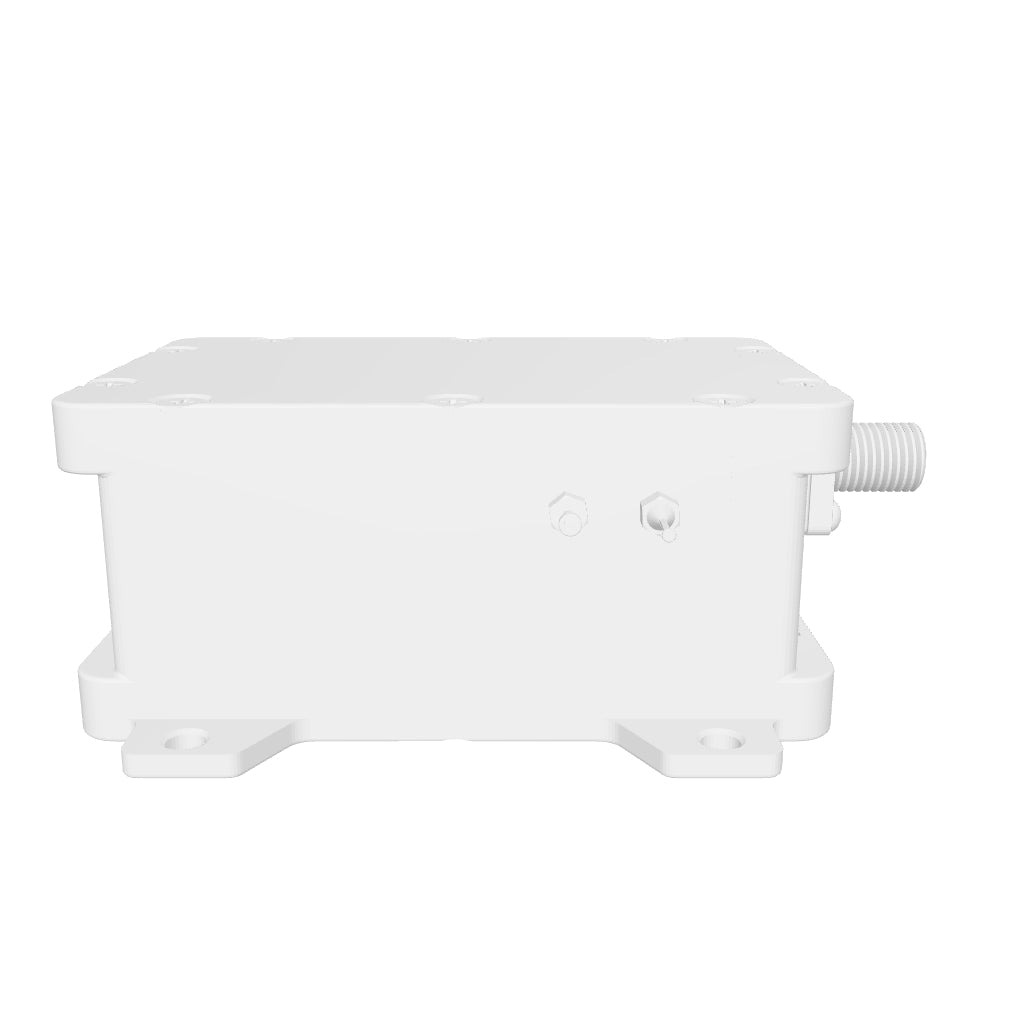

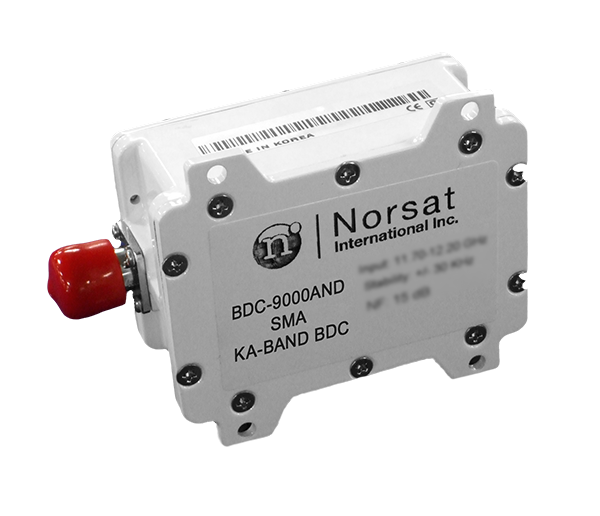

KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 18.20 - 19.20 GHz |
LO frequency 1 | 17.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 19.20 - 20.20 GHz |
LO frequency 1 | 18.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 20.20 - 21.20 GHz |
LO frequency 1 | 19.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | F: 75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | N: 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ka-Band |
input frequency band 1 | 21.20 - 22.20 GHz |
LO frequency 1 | 20.25 GHz |
LO stability | ±50 kHz max. |
noise figure | 18 dB max. at room temp. |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1950 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 28 dB |
conversion gain min | 22 dB |
conversion gain typ | 25 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.2 : 1 max. |
output P1dB | + 5 dBm min. |
phase noise 1kHz offset max | -70 dBc/Hz |
phase noise 10kHz offset max | -80 dBc/Hz |
phase noise 100kHz offset max | -95 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power requirements | 15 - 24 V |
INTERFACE SPECIFICATIONS | |
---|---|
RF input connector | S: SMA 50 Ohm |
RF output connector | S: SMA 50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 44 mm |
product length | 90 mm |
product weight | 0.4 kg |
product width | 78 mm |
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in the Republic of Korea |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | 90 mm x 78 mm x 44 mm |
Unit Package Weight | - |
Total Aluminium Content | 0.282 Kg |
Aluminum Country of Smelt and Cast | Made in the Republic of Korea |
Total Aluminium Value | $ 0.705 |
![]() |
![]() |
![]() |
