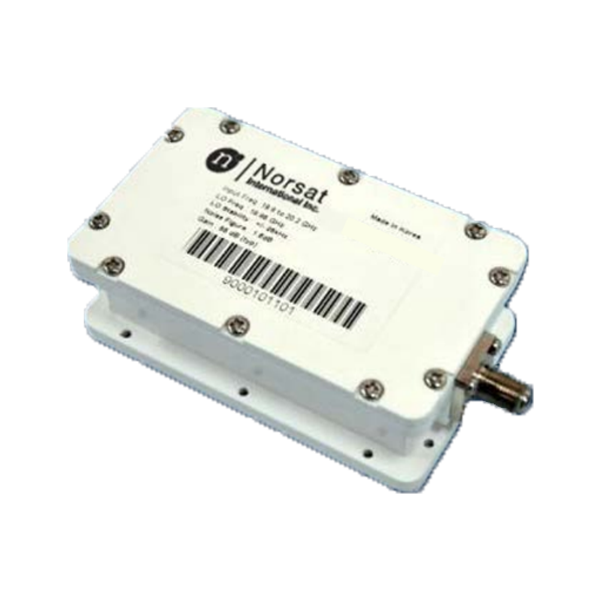

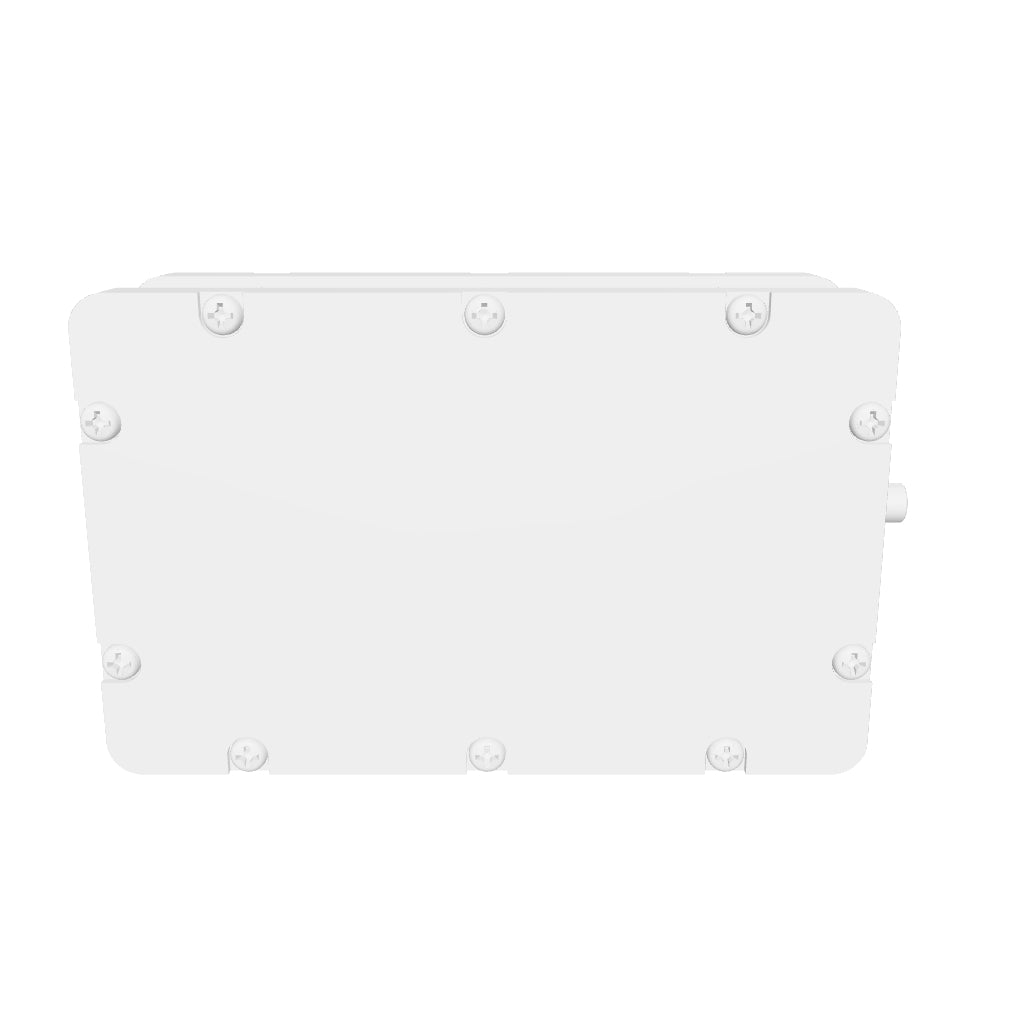

Name: 9000 Triple-Band Ka-Band PLL LNB
Brand: Norsat International Inc.

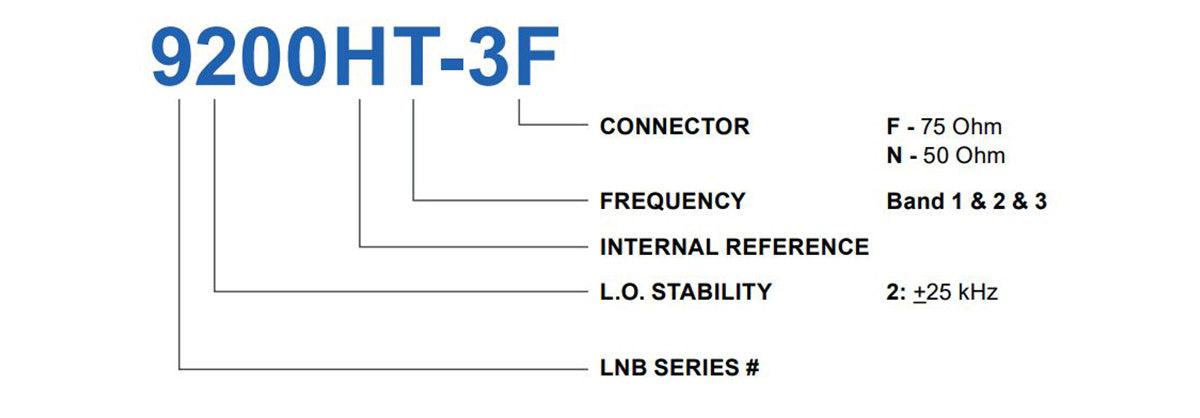

SKU: 9200HT-3F
Price: 4400.00 USD
Availability: InStock

9200HT-3F

9000 Triple-Band Ka-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41600807927991,"title":"F: 75 Ohm","option1":"F: 75 Ohm","option2":null,"option3":null,"sku":"9200HT-3F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Triple-Band Ka-Band PLL LNB - F: 75 Ohm","public_title":"F: 75 Ohm","options":["F: 75 Ohm"],"price":440000,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41600807960759,"title":"N: 50 Ohm","option1":"N: 50 Ohm","option2":null,"option3":null,"sku":"9200HT-3N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Triple-Band Ka-Band PLL LNB - N: 50 Ohm","public_title":"N: 50 Ohm","options":["N: 50 Ohm"],"price":443500,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000HT-3 Series.

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.30 - 18.30 GHz
input frequency band 2	18.30 - 19.30 GHz
input frequency band 3	19.30 - 20.30 GHz
LO frequency 1	16.35 GHz
LO frequency 2	17.35 GHz
LO frequency 3	18.35 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	2.0 dB
noise figure typ	1.6 dB
number of onboard LOs	Triple-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
tone frequency	22 kHz ± 4 kHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
control signal 3	13V / 22kHz Tone
conversion gain max	70 dB
conversion gain min	58 dB
conversion gain typ	65 dB
Gain Flatness	±2 dB max.
image rejection	40 dBc min.
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 1kHz offset max	-70 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-90 dBc/Hz
spurious	-60 dBc (in band) ; -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
current consumption	400 mA
power requirements	+11 to +26V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

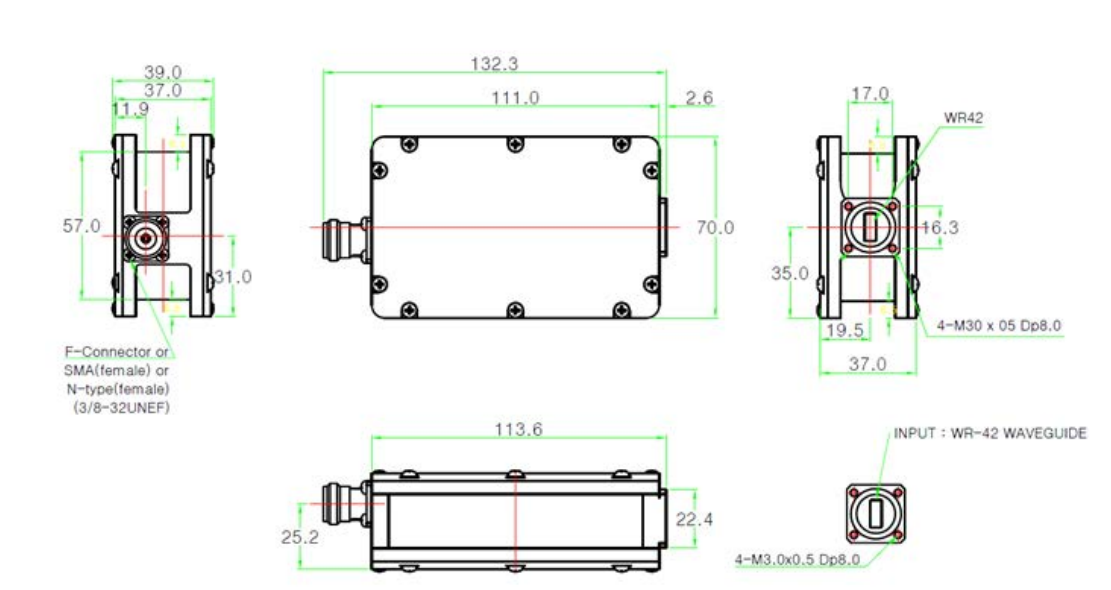

PHYSICAL SPECIFICATIONS
product height	39 mm
product length	133 mm
product weight	0.5 kg
product width	70 mm

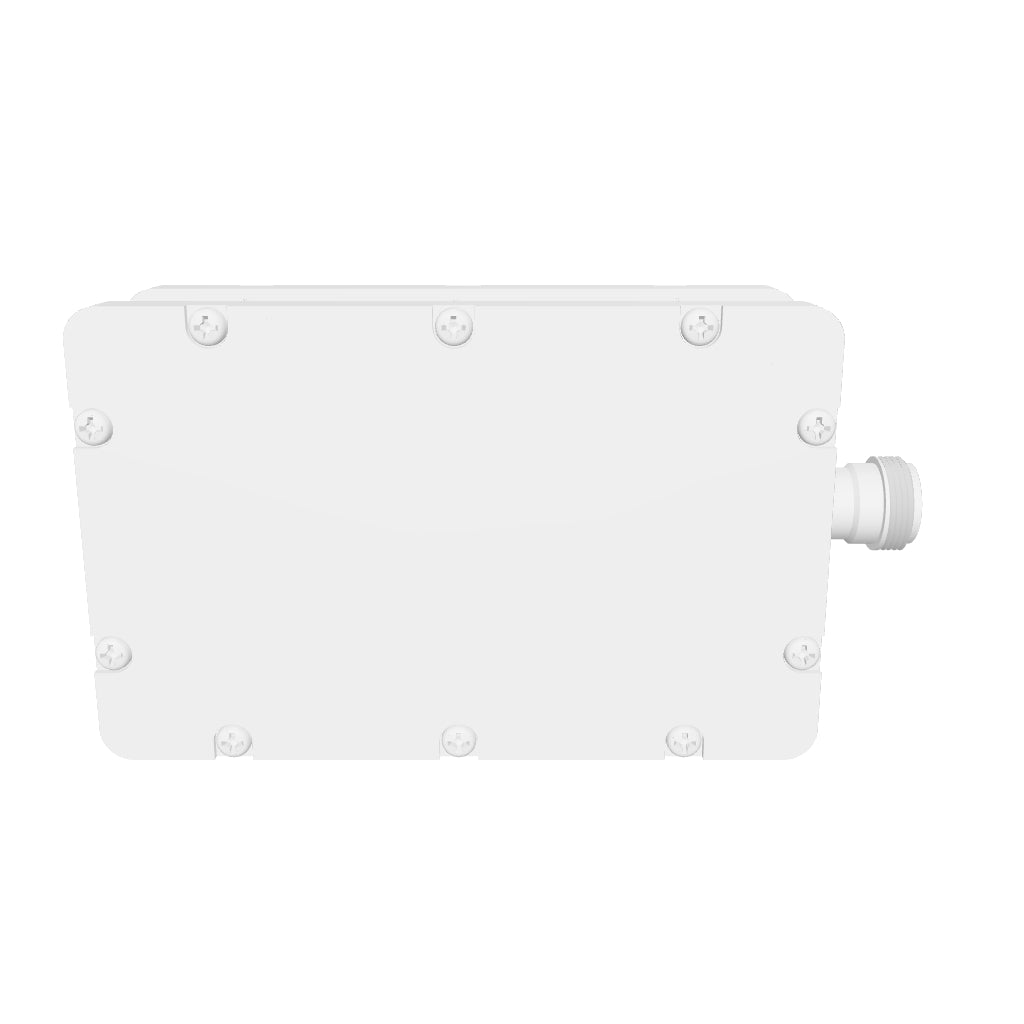

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.30 - 19.30 GHz
input frequency band 2	18.30 - 19.30 GHz
input frequency band 3	19.30 - 20.20 GHz
LO frequency 1	16.35 GHz
LO frequency 2	17.35 GHz
LO frequency 3	18.35 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	2.0 dB
noise figure typ	1.6 dB
number of onboard LOs	Triple-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
tone frequency	22 kHz ± 4 kHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
control signal 3	13V / 22kHz Tone
conversion gain max	70 dB
conversion gain min	58 dB
conversion gain typ	65 dB
Gain Flatness	±2 dB max.
image rejection	40 dBc min.
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 1kHz offset max	-70 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-90 dBc/Hz
spurious	-60 dBc (in band) ; -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
current consumption	400 mA
power requirements	+11 to +26V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	39 mm
product length	133 mm
product weight	0.5 kg
product width	70 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	133 mm x 70 mm x 44 mm
Unit Package Weight	0.5 kg
COMPLIANCE
	Yes
	Yes
	Yes
