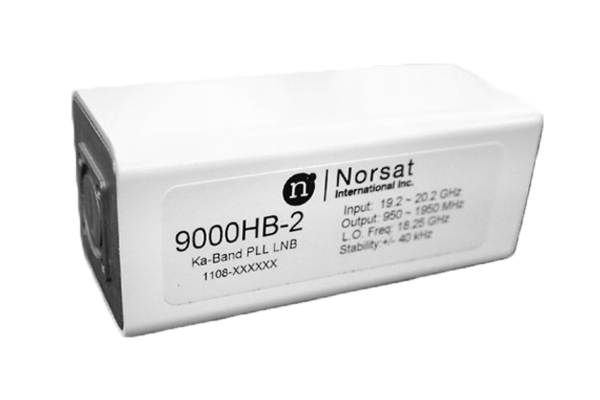

Name: 9000H-2 Single-Band Ka-Band PLL LNB
Brand: Norsat International Inc.
SKU: 9000HAF-2
Price: 1091.00 USD
Availability: InStock

9000HAF-2

9000H-2 Single-Band Ka-Band PLL LNB

9000H-2 Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

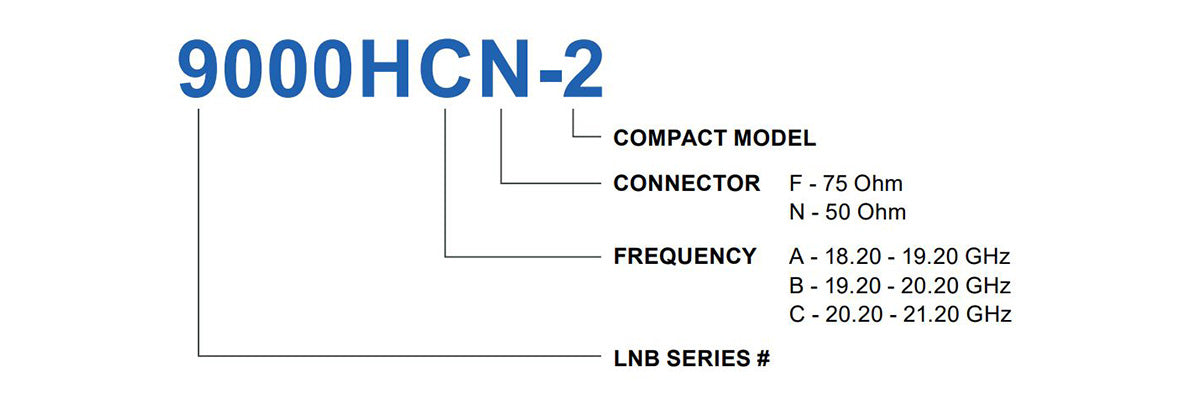

[{"id":41058639511735,"title":"A: 18.20 - 19.20 GHz \/ F: 75 Ohm","option1":"A: 18.20 - 19.20 GHz","option2":"F: 75 Ohm","option3":null,"sku":"9000HAF-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-2 Single-Band Ka-Band PLL LNB - A: 18.20 - 19.20 GHz \/ F: 75 Ohm","public_title":"A: 18.20 - 19.20 GHz \/ F: 75 Ohm","options":["A: 18.20 - 19.20 GHz","F: 75 Ohm"],"price":109100,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":"39511735","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058639544503,"title":"A: 18.20 - 19.20 GHz \/ N: 50 Ohm","option1":"A: 18.20 - 19.20 GHz","option2":"N: 50 Ohm","option3":null,"sku":"9000HAN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-2 Single-Band Ka-Band PLL LNB - A: 18.20 - 19.20 GHz \/ N: 50 Ohm","public_title":"A: 18.20 - 19.20 GHz \/ N: 50 Ohm","options":["A: 18.20 - 19.20 GHz","N: 50 Ohm"],"price":112600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058639577271,"title":"B: 19.20 - 20.20 GHz \/ F: 75 Ohm","option1":"B: 19.20 - 20.20 GHz","option2":"F: 75 Ohm","option3":null,"sku":"9000HBF-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-2 Single-Band Ka-Band PLL LNB - B: 19.20 - 20.20 GHz \/ F: 75 Ohm","public_title":"B: 19.20 - 20.20 GHz \/ F: 75 Ohm","options":["B: 19.20 - 20.20 GHz","F: 75 Ohm"],"price":109100,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058639610039,"title":"B: 19.20 - 20.20 GHz \/ N: 50 Ohm","option1":"B: 19.20 - 20.20 GHz","option2":"N: 50 Ohm","option3":null,"sku":"9000HBN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-2 Single-Band Ka-Band PLL LNB - B: 19.20 - 20.20 GHz \/ N: 50 Ohm","public_title":"B: 19.20 - 20.20 GHz \/ N: 50 Ohm","options":["B: 19.20 - 20.20 GHz","N: 50 Ohm"],"price":112600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058639642807,"title":"C: 20.20 - 21.20 GHz \/ F: 75 Ohm","option1":"C: 20.20 - 21.20 GHz","option2":"F: 75 Ohm","option3":null,"sku":"9000HCF-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-2 Single-Band Ka-Band PLL LNB - C: 20.20 - 21.20 GHz \/ F: 75 Ohm","public_title":"C: 20.20 - 21.20 GHz \/ F: 75 Ohm","options":["C: 20.20 - 21.20 GHz","F: 75 Ohm"],"price":109100,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058639675575,"title":"C: 20.20 - 21.20 GHz \/ N: 50 Ohm","option1":"C: 20.20 - 21.20 GHz","option2":"N: 50 Ohm","option3":null,"sku":"9000HCN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-2 Single-Band Ka-Band PLL LNB - C: 20.20 - 21.20 GHz \/ N: 50 Ohm","public_title":"C: 20.20 - 21.20 GHz \/ N: 50 Ohm","options":["C: 20.20 - 21.20 GHz","N: 50 Ohm"],"price":112600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000H-2 Series.

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	18.20 - 19.20 GHz
LO frequency 1	17.25 GHz
LO stability	±60 kHz
LO type	PLL
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1950 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	5 dB p-p
input VSWR	3.0 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-100 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

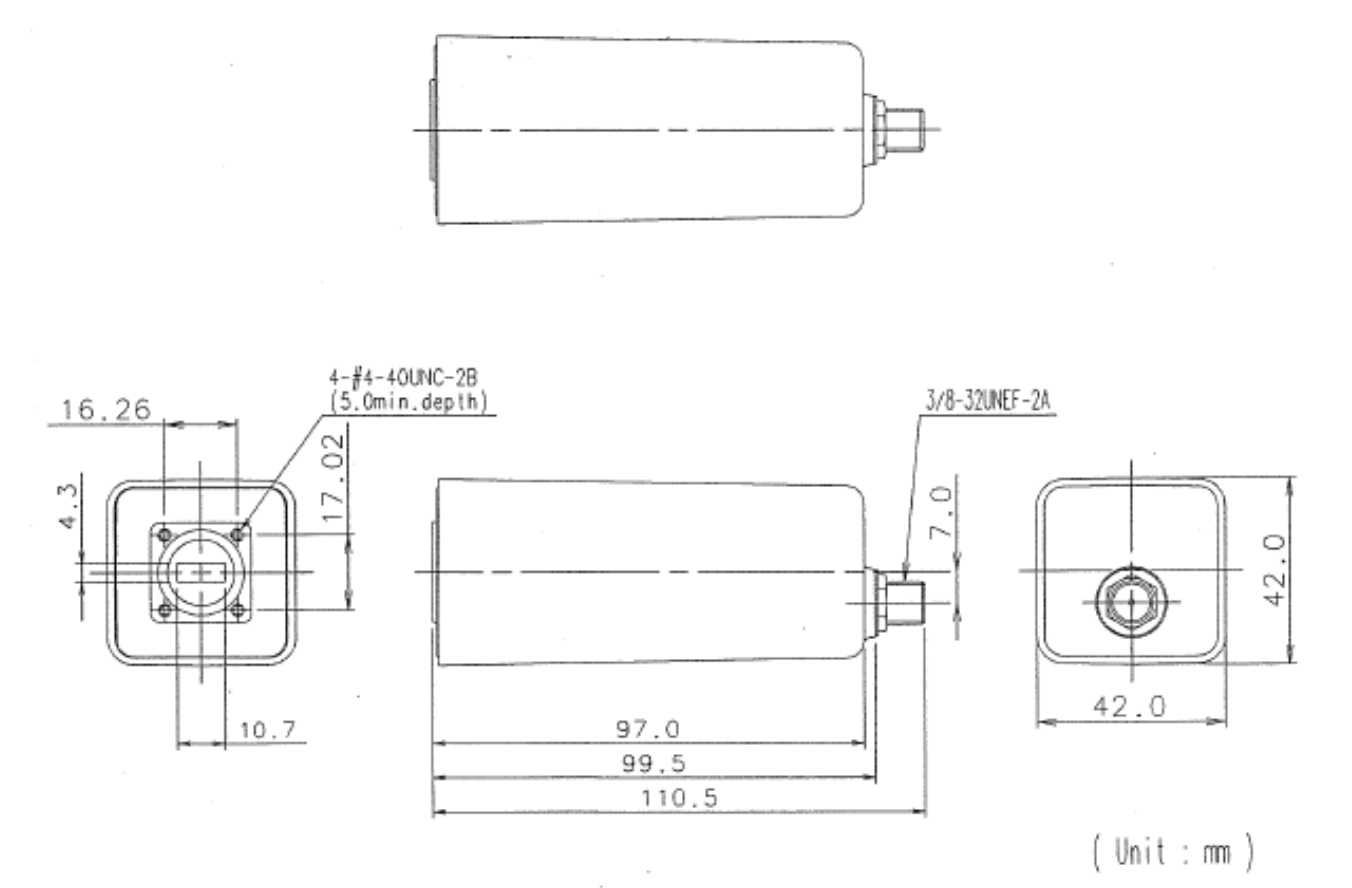

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	111 mm
product weight	0.35 kg
product width	42 mm

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	18.20 - 19.20 GHz
LO frequency 1	17.25 GHz
LO stability	±60 kHz
LO type	PLL
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1950 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	5 dB p-p
input VSWR	3.0 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-100 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	111 mm
product weight	0.35 kg
product width	42 mm

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	19.20 - 20.20 GHz
LO frequency 1	18.25 GHz
LO stability	±60 kHz
LO type	PLL
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1950 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	5 dB p-p
input VSWR	3.0 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-100 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	111 mm
product weight	0.35 kg
product width	42 mm

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	19.20 - 20.20 GHz
LO frequency 1	18.25 GHz
LO stability	±60 kHz
LO type	PLL
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1950 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	5 dB p-p
input VSWR	3.0 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-100 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	111 mm
product weight	0.35 kg
product width	42 mm

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	20.20 - 21.20 GHz
LO frequency 1	19.25 GHz
LO stability	±60 kHz
LO type	PLL
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1950 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	5 dB p-p
input VSWR	3.0 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-100 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	111 mm
product weight	0.35 kg
product width	42 mm

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	20.20 - 21.20 GHz
LO frequency 1	19.25 GHz
LO stability	±60 kHz
LO type	PLL
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1950 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	5 dB p-p
input VSWR	3.0 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-100 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	111 mm
product weight	0.35 kg
product width	42 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Japan
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	130 mm x 50 mm x 50 mm
Unit Package Weight	0.3 kg
