9000X-4 Single-Band Ka-Band EXT REF LNB
9000X-4 Single-Band Ka-Band EXT REF LNB
9000X-4 Single-Band Ka-Band EXT REF LNB

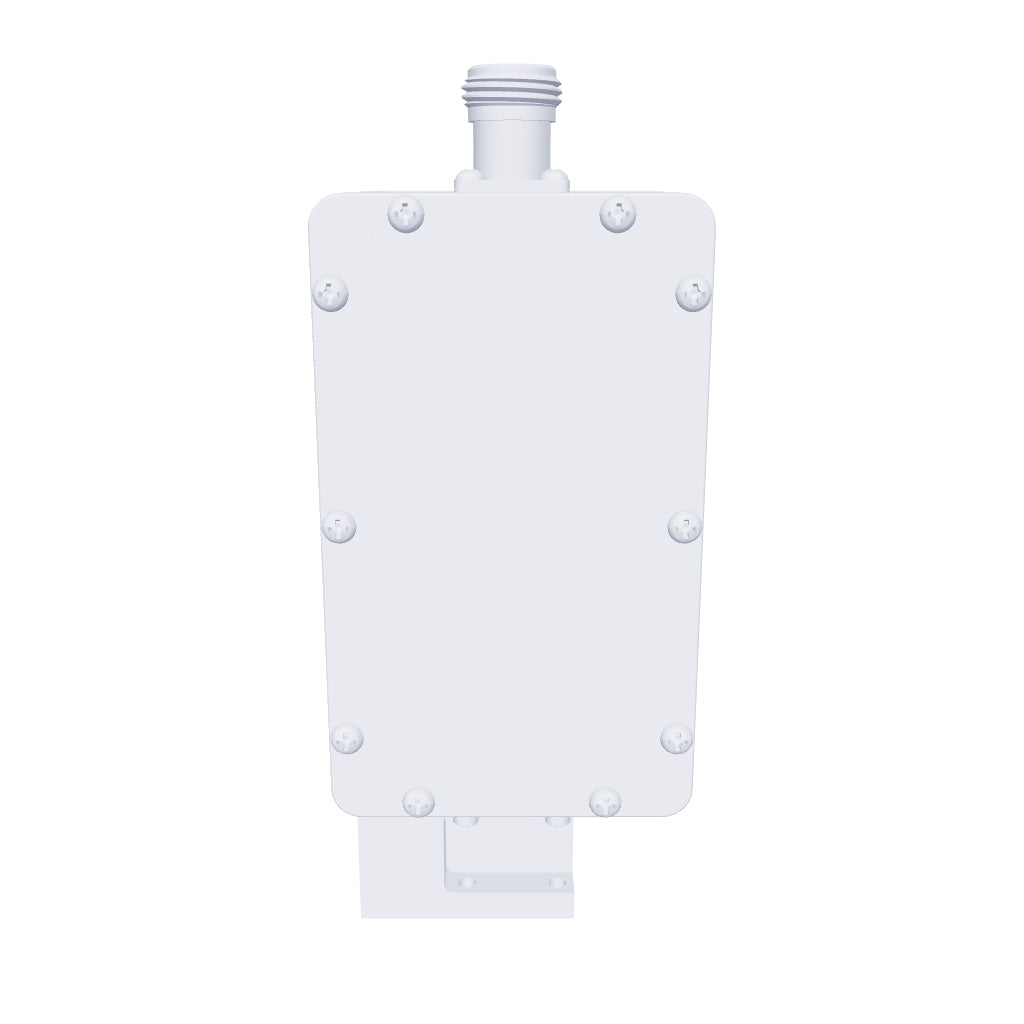

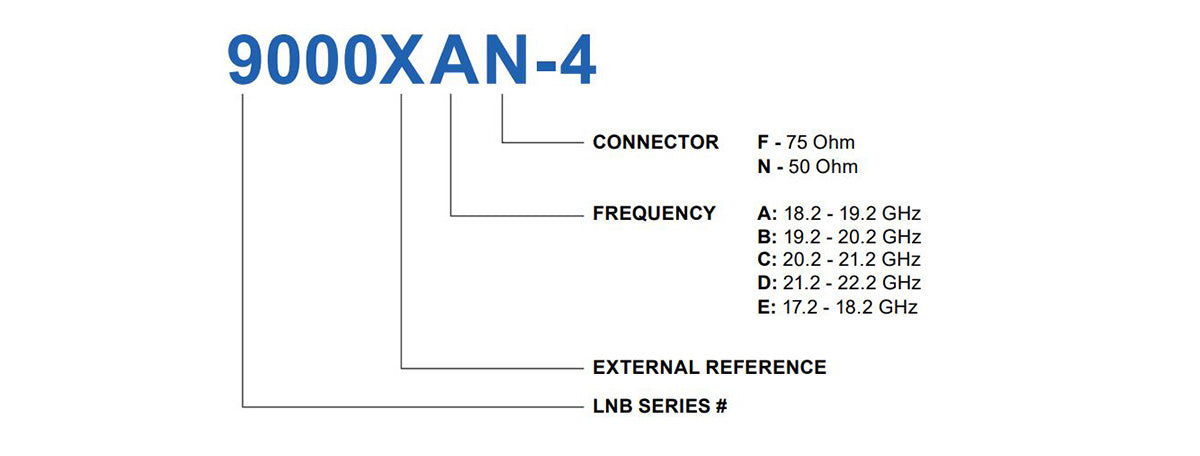

9000XAF-4

9000X-4 Single-Band Ka-Band EXT REF LNB

9000X-4 Series

Regular price MSRP: $722.00
/
Quantity Available: 16
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks

View Resellers Quantity

(Scroll to see specifications and documents)


Only 16 items in stock!



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 18.20 - 19.20 GHz
LO frequency 1 17.25 GHz
LO stability External Reference
LO type External
noise figure max 1.3 dB
noise figure typ 1.6 dB
of onboard los Single-band
output frequency band 1 950 - 1950 MHz
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 4 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 100kHz offset max -95 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 1kHz offset max -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
isolator No Isolator
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
PHYSICAL SPECIFICATIONS

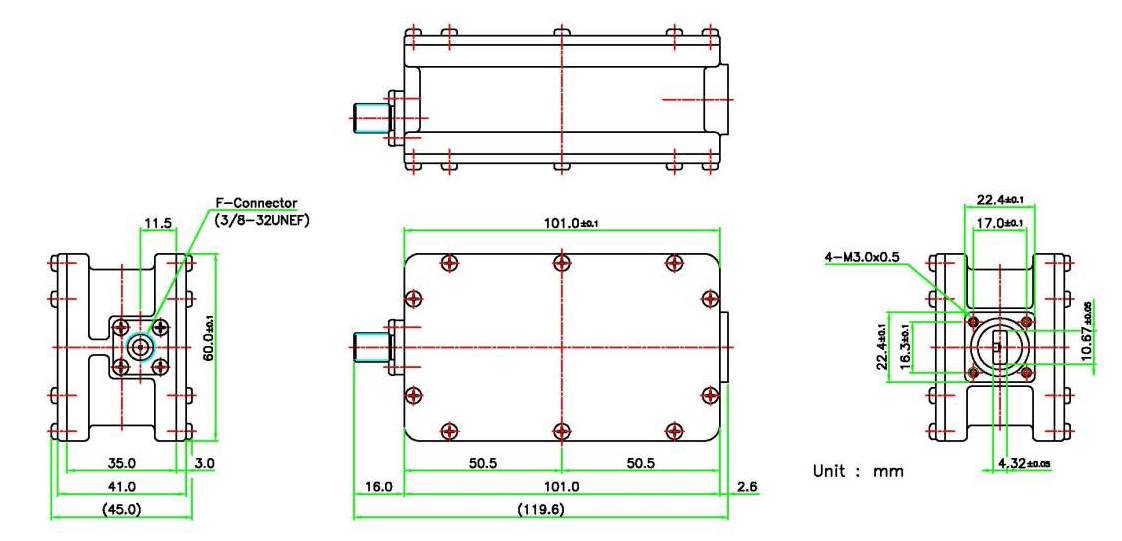

product dimensions (LxWxH) 120 x 60 x 45 mm
product weight 420 g (14.82 oz)
