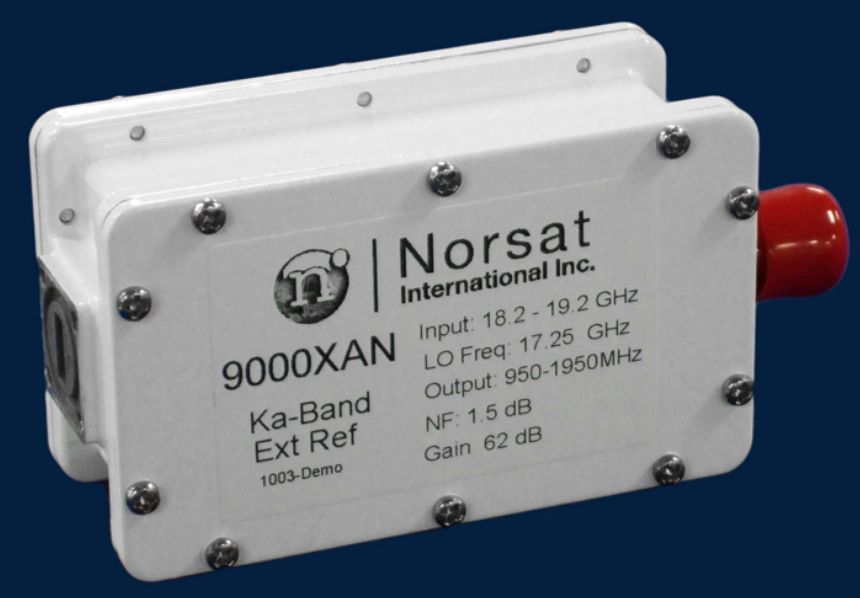

KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1 18.20 - 19.20 GHz
LO frequency 1 17.25 GHz
LO stability Ext Ref
LO type EXT
noise figure typ 1.4 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain typ 56 dB
Gain Flatness (over full band) 5 dB p-p max.
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
PHYSICAL SPECIFICATIONS

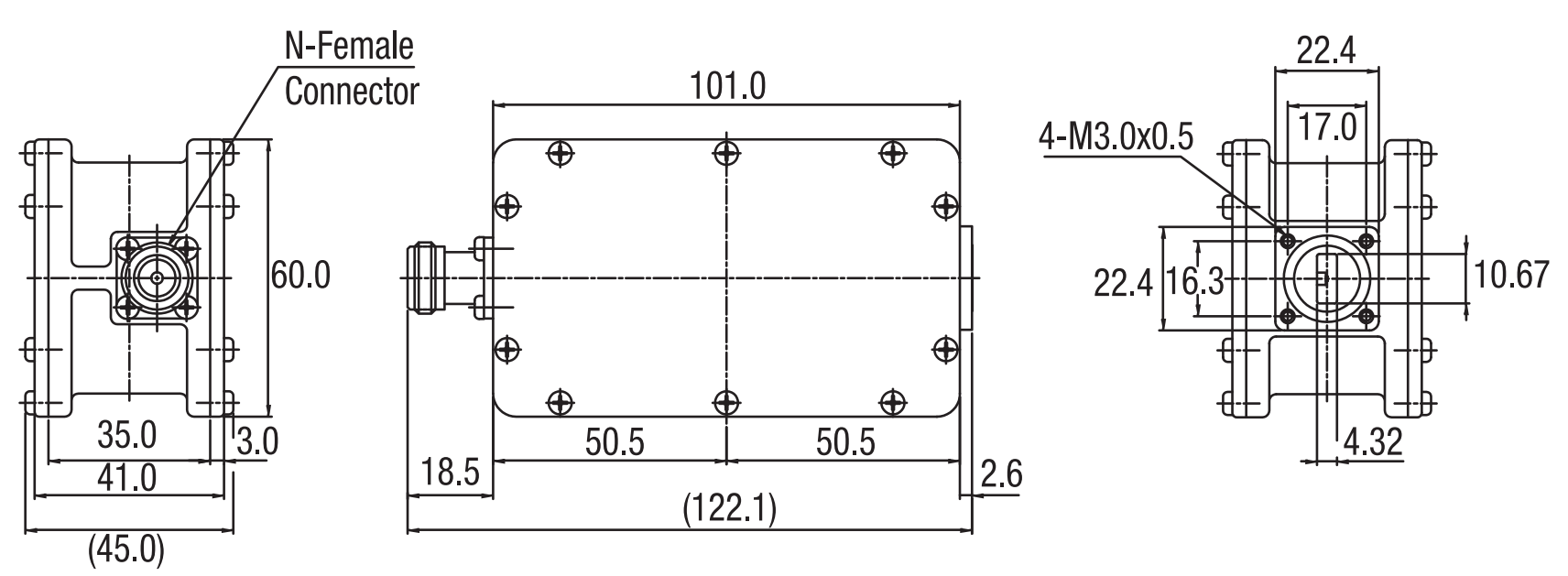

product dimensions (LxWxH) 122 x 60.0 x 45.0 mm
product weight 0.40 kg
