Name: 9000X4 Ka-Band Quad Band EXT REF LNB
Brand: Norsat International Inc.

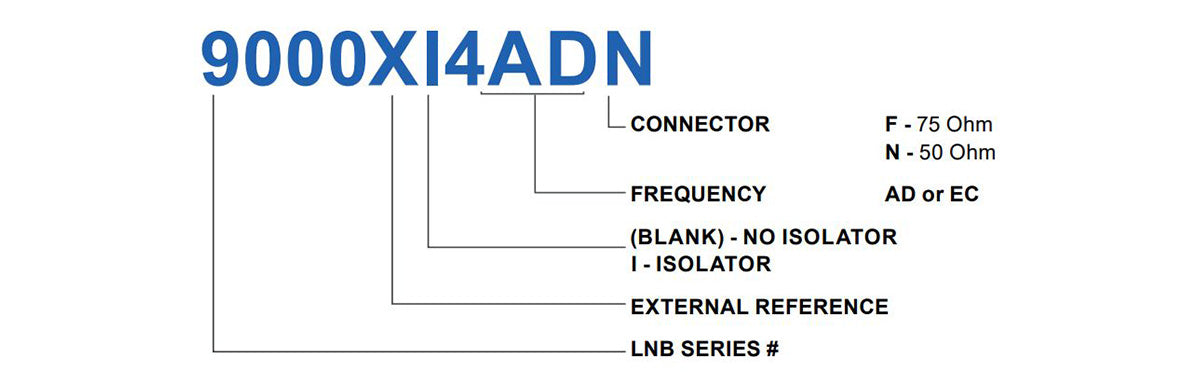

SKU: 9000X4ADN
Price: 3578.00 USD
Availability: InStock

9000X4ADN

9000X4 Ka-Band Quad Band EXT REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":41059989389495,"title":"AD: 18.20 - 22.20 GHz \/ No \/ N: 50 Ohm","option1":"AD: 18.20 - 22.20 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9000X4ADN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - AD: 18.20 - 22.20 GHz \/ No \/ N: 50 Ohm","public_title":"AD: 18.20 - 22.20 GHz \/ No \/ N: 50 Ohm","options":["AD: 18.20 - 22.20 GHz","No","N: 50 Ohm"],"price":357800,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059989422263,"title":"AD: 18.20 - 22.20 GHz \/ No \/ F: 75 Ohm","option1":"AD: 18.20 - 22.20 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9000X4ADF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - AD: 18.20 - 22.20 GHz \/ No \/ F: 75 Ohm","public_title":"AD: 18.20 - 22.20 GHz \/ No \/ F: 75 Ohm","options":["AD: 18.20 - 22.20 GHz","No","F: 75 Ohm"],"price":356100,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059989520567,"title":"AD: 18.20 - 22.20 GHz \/ Yes \/ N: 50 Ohm","option1":"AD: 18.20 - 22.20 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9000XI4ADN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - AD: 18.20 - 22.20 GHz \/ Yes \/ N: 50 Ohm","public_title":"AD: 18.20 - 22.20 GHz \/ Yes \/ N: 50 Ohm","options":["AD: 18.20 - 22.20 GHz","Yes","N: 50 Ohm"],"price":404800,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059989553335,"title":"AD: 18.20 - 22.20 GHz \/ Yes \/ F: 75 Ohm","option1":"AD: 18.20 - 22.20 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9000XI4ADF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - AD: 18.20 - 22.20 GHz \/ Yes \/ F: 75 Ohm","public_title":"AD: 18.20 - 22.20 GHz \/ Yes \/ F: 75 Ohm","options":["AD: 18.20 - 22.20 GHz","Yes","F: 75 Ohm"],"price":401300,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059989455031,"title":"EC: 17.20 - 21.20 GHz \/ No \/ N: 50 Ohm","option1":"EC: 17.20 - 21.20 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9000X4ECN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - EC: 17.20 - 21.20 GHz \/ No \/ N: 50 Ohm","public_title":"EC: 17.20 - 21.20 GHz \/ No \/ N: 50 Ohm","options":["EC: 17.20 - 21.20 GHz","No","N: 50 Ohm"],"price":357800,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059989487799,"title":"EC: 17.20 - 21.20 GHz \/ No \/ F: 75 Ohm","option1":"EC: 17.20 - 21.20 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9000X4ECF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - EC: 17.20 - 21.20 GHz \/ No \/ F: 75 Ohm","public_title":"EC: 17.20 - 21.20 GHz \/ No \/ F: 75 Ohm","options":["EC: 17.20 - 21.20 GHz","No","F: 75 Ohm"],"price":356100,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059989586103,"title":"EC: 17.20 - 21.20 GHz \/ Yes \/ N: 50 Ohm","option1":"EC: 17.20 - 21.20 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9000XI4ECN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - EC: 17.20 - 21.20 GHz \/ Yes \/ N: 50 Ohm","public_title":"EC: 17.20 - 21.20 GHz \/ Yes \/ N: 50 Ohm","options":["EC: 17.20 - 21.20 GHz","Yes","N: 50 Ohm"],"price":404800,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059989618871,"title":"EC: 17.20 - 21.20 GHz \/ Yes \/ F: 75 Ohm","option1":"EC: 17.20 - 21.20 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9000XI4ECF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X4 Ka-Band Quad Band EXT REF LNB - EC: 17.20 - 21.20 GHz \/ Yes \/ F: 75 Ohm","public_title":"EC: 17.20 - 21.20 GHz \/ Yes \/ F: 75 Ohm","options":["EC: 17.20 - 21.20 GHz","Yes","F: 75 Ohm"],"price":401300,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	18.20 - 19.20 GHz
input frequency band 2	19.20 - 20.20 GHz
input frequency band 3	20.20 - 21.20 GHz
input frequency band 4	21.20 - 22.20 GHz
LO frequency 1	17.25 GHz
LO frequency 2	18.25 GHz
LO frequency 3	19.25 GHz
LO frequency 4	20.25 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	2.0 dB
noise figure typ	1.5 dB
number of onboard LOs	Quad-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
output frequency band 4	950 - 1950 MHz
Product Revision	B

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	13V / 22kHz Tone
control signal 3	18V / No Tone
control signal 4	18V / 22kHz Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 10 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	350 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
isolator	No Isolator
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

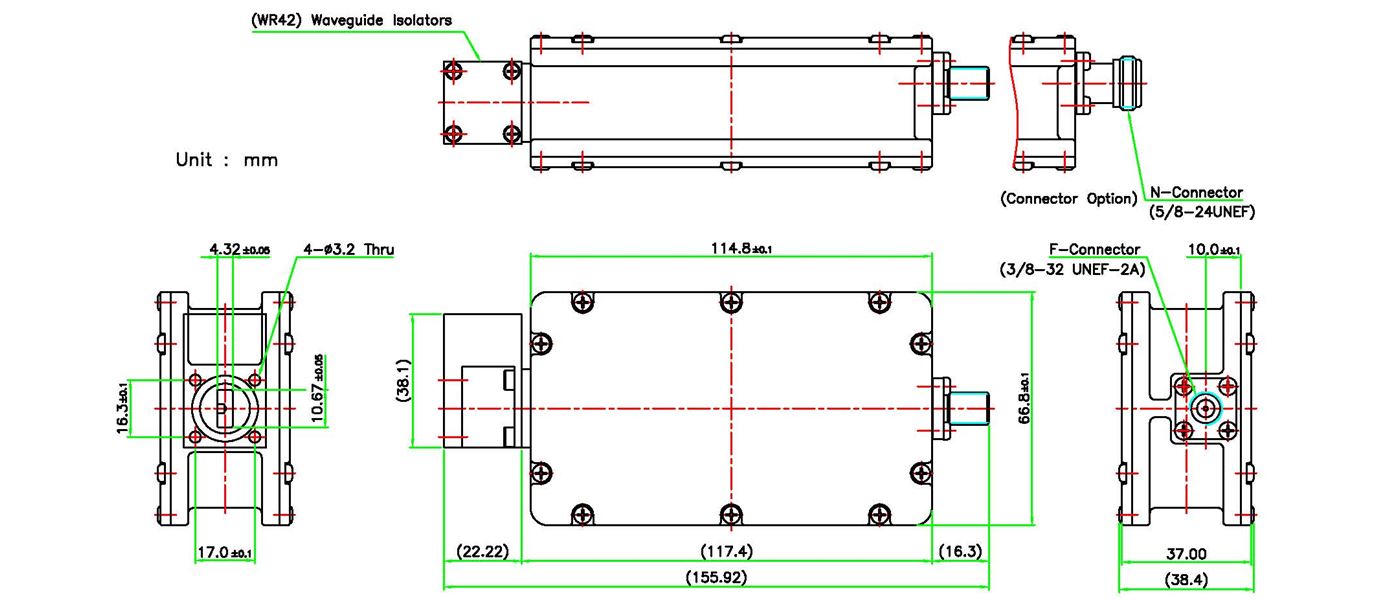

PHYSICAL SPECIFICATIONS
product height	39 mm
product length	134 mm
product weight	0.56 kg
product width	67 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	145 mm x 95 mm x 65 mm
Unit Package Weight	0.55 kg
COMPLIANCE
	Yes
	Yes
	Yes

INTERFACE SPECIFICATIONS
IF connector	F-Connector
isolator	No Isolator
RF input connector	WR-42 waveguide grooved
