9000XAEB-4-041093

Dual-Band Ka-Band EXT REF LNB - DEMO

9000X-3 Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 1 items in stock!
Maximum total coverage is 5 years.

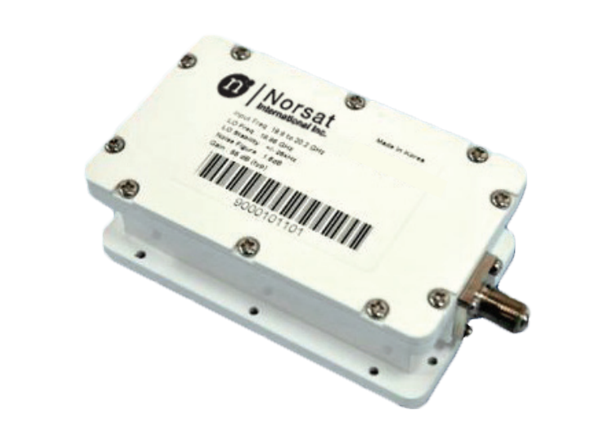

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000X-3 Series.

KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 17.70 - 18.95 GHz
input frequency band 2 18.95 - 20.20 GHz
LO frequency 1 16.75 GHz @ 13 VDC
LO frequency 2 18.00 GHz @ 18 VDC
LO stability Ext Ref
LO type EXT
noise figure max 1.6 dB
noise figure typ 1.3 dB
number of onboard LOs Dual-Band
output frequency band 1 950 - 2200 MHz
output frequency band 2 950 - 2200 MHz
Product Revision 1.00
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 18V / No Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) 5 dB p-p
image rejection 40 dBc min.
input VSWR 2.3 : 1 max.
output P1dB 5 dBm min.
output VSWR 2.3 : 1 max.
phase noise Depends on external reference
phase noise 0.1kHz offset max -65 dBc/Hz
spurious -60 dBc (in band) ; -50 dBc (out of band)
ELECTRICAL SPECIFICATIONS
current consumption 400 mA
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-42 waveguide grooved
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -40 to +80°C

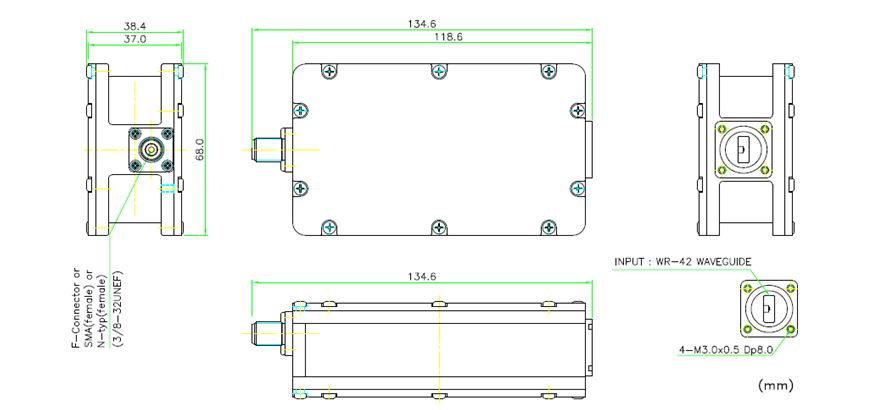

PHYSICAL SPECIFICATIONS
product height 38 mm
product length 128 mm
product weight 0.4 kg
product width 70 mm
