Name: 9000XLCS Single-Band Ka-Band EXT LNB
Brand: Norsat International Inc.
SKU: 9000XLCS1-W4
Availability: OutOfStock

9000XLCS1-W4

9000XLCS Single-Band Ka-Band EXT LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51648144802159,"title":"1: +12V \/ W: White \/ 3: M3x0.5","option1":"1: +12V","option2":"W: White","option3":"3: M3x0.5","sku":"9000XLCS1-W3","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 1: +12V \/ W: White \/ 3: M3x0.5","public_title":"1: +12V \/ W: White \/ 3: M3x0.5","options":["1: +12V","W: White","3: M3x0.5"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648144933231,"title":"1: +12V \/ W: White \/ 4: 4-40","option1":"1: +12V","option2":"W: White","option3":"4: 4-40","sku":"9000XLCS1-W4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 1: +12V \/ W: White \/ 4: 4-40","public_title":"1: +12V \/ W: White \/ 4: 4-40","options":["1: +12V","W: White","4: 4-40"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145031535,"title":"1: +12V \/ T: Tan \/ 3: M3x0.5","option1":"1: +12V","option2":"T: Tan","option3":"3: M3x0.5","sku":"9000XLCS1-T3","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 1: +12V \/ T: Tan \/ 3: M3x0.5","public_title":"1: +12V \/ T: Tan \/ 3: M3x0.5","options":["1: +12V","T: Tan","3: M3x0.5"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145162607,"title":"1: +12V \/ T: Tan \/ 4: 4-40","option1":"1: +12V","option2":"T: Tan","option3":"4: 4-40","sku":"9000XLCS1-T4","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 1: +12V \/ T: Tan \/ 4: 4-40","public_title":"1: +12V \/ T: Tan \/ 4: 4-40","options":["1: +12V","T: Tan","4: 4-40"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145326447,"title":"2: +18V \/ W: White \/ 3: M3x0.5","option1":"2: +18V","option2":"W: White","option3":"3: M3x0.5","sku":"9000XLCS2-W3","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 2: +18V \/ W: White \/ 3: M3x0.5","public_title":"2: +18V \/ W: White \/ 3: M3x0.5","options":["2: +18V","W: White","3: M3x0.5"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145457519,"title":"2: +18V \/ W: White \/ 4: 4-40","option1":"2: +18V","option2":"W: White","option3":"4: 4-40","sku":"9000XLCS2-W4","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 2: +18V \/ W: White \/ 4: 4-40","public_title":"2: +18V \/ W: White \/ 4: 4-40","options":["2: +18V","W: White","4: 4-40"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145555823,"title":"2: +18V \/ T: Tan \/ 3: M3x0.5","option1":"2: +18V","option2":"T: Tan","option3":"3: M3x0.5","sku":"9000XLCS2-T3","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 2: +18V \/ T: Tan \/ 3: M3x0.5","public_title":"2: +18V \/ T: Tan \/ 3: M3x0.5","options":["2: +18V","T: Tan","3: M3x0.5"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145654127,"title":"2: +18V \/ T: Tan \/ 4: 4-40","option1":"2: +18V","option2":"T: Tan","option3":"4: 4-40","sku":"9000XLCS2-T4","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 2: +18V \/ T: Tan \/ 4: 4-40","public_title":"2: +18V \/ T: Tan \/ 4: 4-40","options":["2: +18V","T: Tan","4: 4-40"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145752431,"title":"3: +11V to 28V \/ W: White \/ 3: M3x0.5","option1":"3: +11V to 28V","option2":"W: White","option3":"3: M3x0.5","sku":"9000XLCS3-W3","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 3: +11V to 28V \/ W: White \/ 3: M3x0.5","public_title":"3: +11V to 28V \/ W: White \/ 3: M3x0.5","options":["3: +11V to 28V","W: White","3: M3x0.5"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145850735,"title":"3: +11V to 28V \/ W: White \/ 4: 4-40","option1":"3: +11V to 28V","option2":"W: White","option3":"4: 4-40","sku":"9000XLCS3-W4","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 3: +11V to 28V \/ W: White \/ 4: 4-40","public_title":"3: +11V to 28V \/ W: White \/ 4: 4-40","options":["3: +11V to 28V","W: White","4: 4-40"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648145949039,"title":"3: +11V to 28V \/ T: Tan \/ 3: M3x0.5","option1":"3: +11V to 28V","option2":"T: Tan","option3":"3: M3x0.5","sku":"9000XLCS3-T3","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 3: +11V to 28V \/ T: Tan \/ 3: M3x0.5","public_title":"3: +11V to 28V \/ T: Tan \/ 3: M3x0.5","options":["3: +11V to 28V","T: Tan","3: M3x0.5"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51648146047343,"title":"3: +11V to 28V \/ T: Tan \/ 4: 4-40","option1":"3: +11V to 28V","option2":"T: Tan","option3":"4: 4-40","sku":"9000XLCS3-T4","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"9000XLCS Single-Band Ka-Band EXT LNB - 3: +11V to 28V \/ T: Tan \/ 4: 4-40","public_title":"3: +11V to 28V \/ T: Tan \/ 4: 4-40","options":["3: +11V to 28V","T: Tan","4: 4-40"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 3 to +3 dBm
input frequency band 1	20.20 - 21.20 GHz
LO frequency 1	19.25 GHz
LO stability	EXT REF
LO type	PLL
noise figure max	1.5 dB
noise figure typ	1.3 dB
of onboard los	Single-band
output frequency band 1	950 - 1950 MHz
Product Revision	A

RF SPECIFICATIONS
compliance	MIL-STD-188-164
conversion gain min	60 dB
conversion gain typ	64 dB
desensitization	-25 dBm (30 - 31 GHz)
Gain Flatness (over full band)	2.5 dB p-p
gain variation over temperature	±3 dB max.
input stablility	Unconditionally Stable
input VSWR	1.3 : 1 max.
max input no damage	0 dBm (20.2 - 21.2 GHz) +10 dBm (30-31 GHz)
output P1dB	+ 10 dBm min.
output VSWR	1.44 : 1 max.
phase noise 0.1kHz max	-65 dBc/Hz
phase noise 1kHz max	-80 dBc/Hz
phase noise 10kHz max	-89 dBc/Hz
phase noise 100kHz max	-98 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	610 mA max.
power requirements	+12V DC

INTERFACE SPECIFICATIONS
IF connector	SMA-Connector
RF input connector	WR-42 waveguide grooved - internal pressure window exceed 0.5 psi dry air requirements

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-20 to +60°C

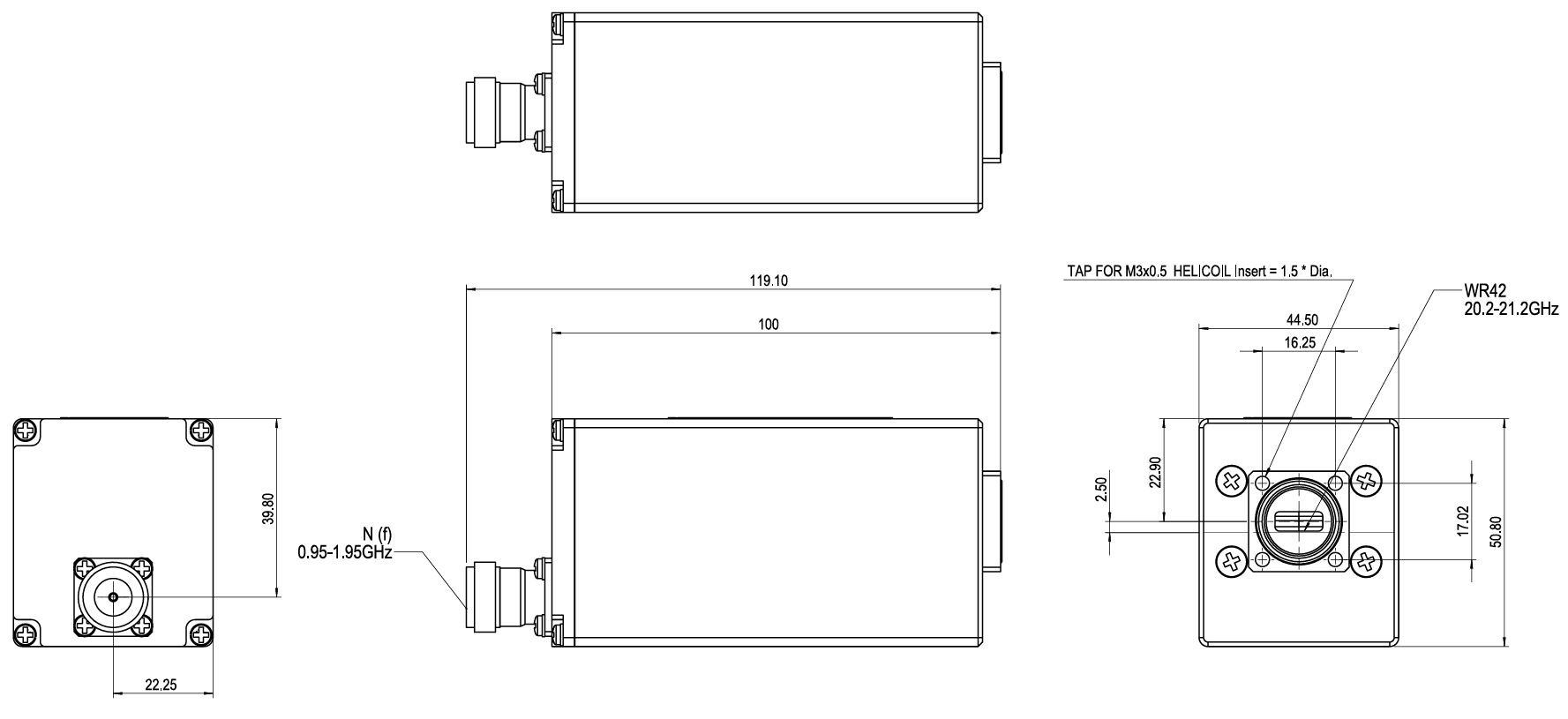

PHYSICAL SPECIFICATIONS
color	White
flange holes	4-40
product height	51 mm
product length	100 mm
product weight	0.35 kg
product width	45 mm

PHYSICAL SPECIFICATIONS
color	Tan
flange holes	M3x0.5
product height	51 mm
product length	100 mm
product weight	0.35 kg
product width	45 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Australia
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	-
Total Aluminium Content	-
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	-
