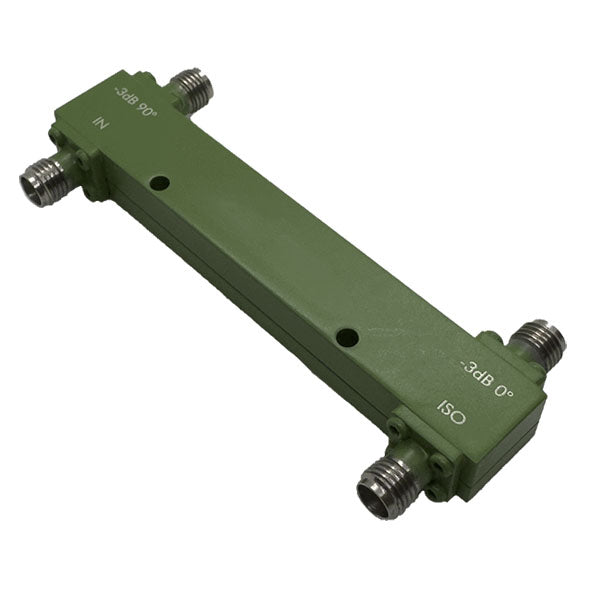

QHCOUA

90° Quadrature Hybrid Coupler

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":52929920270703,"title":"0.5-1GHz","option1":"0.5-1GHz","option2":null,"option3":null,"sku":"QHCOUA","requires_shipping":true,"taxable":true,"featured_image":{"id":62448723525999,"product_id":14951848411503,"position":1,"created_at":"2026-05-11T11:43:59-07:00","updated_at":"2026-05-11T11:44:01-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUA-product_imagee.jpg?v=1778525041","variant_ids":[52929920270703]},"available":true,"name":"90° Quadrature Hybrid Coupler - 0.5-1GHz","public_title":"0.5-1GHz","options":["0.5-1GHz"],"price":96000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53836131107183,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUA-product_imagee.jpg?v=1778525041"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52929920303471,"title":"1-2GHz","option1":"1-2GHz","option2":null,"option3":null,"sku":"QHCOUB","requires_shipping":true,"taxable":true,"featured_image":{"id":62448724902255,"product_id":14951848411503,"position":2,"created_at":"2026-05-11T11:44:09-07:00","updated_at":"2026-05-11T11:44:11-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUB-product_imagee.jpg?v=1778525051","variant_ids":[52929920303471]},"available":true,"name":"90° Quadrature Hybrid Coupler - 1-2GHz","public_title":"1-2GHz","options":["1-2GHz"],"price":94000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53836132745583,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUB-product_imagee.jpg?v=1778525051"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52929920336239,"title":"2-4GHz","option1":"2-4GHz","option2":null,"option3":null,"sku":"QHCOUC","requires_shipping":true,"taxable":true,"featured_image":{"id":62448728539503,"product_id":14951848411503,"position":3,"created_at":"2026-05-11T11:44:27-07:00","updated_at":"2026-05-11T11:44:29-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUC-product_imagee.jpg?v=1778525069","variant_ids":[52929920336239]},"available":true,"name":"90° Quadrature Hybrid Coupler - 2-4GHz","public_title":"2-4GHz","options":["2-4GHz"],"price":94000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53836136448367,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUC-product_imagee.jpg?v=1778525069"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52929920369007,"title":"4-8GHz","option1":"4-8GHz","option2":null,"option3":null,"sku":"QHCOUD","requires_shipping":true,"taxable":true,"featured_image":{"id":62448729686383,"product_id":14951848411503,"position":4,"created_at":"2026-05-11T11:44:38-07:00","updated_at":"2026-05-11T11:44:39-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUD-product_imagee.jpg?v=1778525079","variant_ids":[52929920369007]},"available":true,"name":"90° Quadrature Hybrid Coupler - 4-8GHz","public_title":"4-8GHz","options":["4-8GHz"],"price":100000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53836137595247,"position":4,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUD-product_imagee.jpg?v=1778525079"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52929920401775,"title":"5-10GHz","option1":"5-10GHz","option2":null,"option3":null,"sku":"QHCOUE","requires_shipping":true,"taxable":true,"featured_image":{"id":62448730603887,"product_id":14951848411503,"position":5,"created_at":"2026-05-11T11:44:47-07:00","updated_at":"2026-05-11T11:44:48-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUE-product_imagee.jpg?v=1778525088","variant_ids":[52929920401775]},"available":true,"name":"90° Quadrature Hybrid Coupler - 5-10GHz","public_title":"5-10GHz","options":["5-10GHz"],"price":100000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53836138512751,"position":5,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUE-product_imagee.jpg?v=1778525088"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52929920434543,"title":"6-12.4GHz","option1":"6-12.4GHz","option2":null,"option3":null,"sku":"QHCOUF","requires_shipping":true,"taxable":true,"featured_image":{"id":62448732668271,"product_id":14951848411503,"position":6,"created_at":"2026-05-11T11:45:03-07:00","updated_at":"2026-05-11T11:45:04-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUF-product_image.jpg?v=1778525104","variant_ids":[52929920434543]},"available":true,"name":"90° Quadrature Hybrid Coupler - 6-12.4GHz","public_title":"6-12.4GHz","options":["6-12.4GHz"],"price":106000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53836140577135,"position":6,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUF-product_image.jpg?v=1778525104"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52929920467311,"title":"6-18GHz","option1":"6-18GHz","option2":null,"option3":null,"sku":"QHCOUG","requires_shipping":true,"taxable":true,"featured_image":{"id":62448733946223,"product_id":14951848411503,"position":7,"created_at":"2026-05-11T11:45:12-07:00","updated_at":"2026-05-11T11:45:14-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUG-product_imagee.jpg?v=1778525114","variant_ids":[52929920467311]},"available":true,"name":"90° Quadrature Hybrid Coupler - 6-18GHz","public_title":"6-18GHz","options":["6-18GHz"],"price":210000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53836141855087,"position":7,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/QHCOUG-product_imagee.jpg?v=1778525114"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
bandwith	.5 GHz
frequency	0.5 - 1 GHz
noise figure	N/A
Product Revision	A

RF SPECIFICATIONS
gain	N/A
gain ripple	N/A
input VSWR	1.22:1 max.
insertion loss	3.14 ± 0.45 dB typ
isolation	22 dB min
ripple	N/A

ELECTRICAL SPECIFICATIONS
coupling	3 dB nom.
impedance	50 ohms
power handling avg	50 W max.

INTERFACE SPECIFICATIONS
connectors type	SMA-F

ENVIRONMENTAL SPECIFICATIONS
indoor status	Yes

PHYSICAL SPECIFICATIONS
product height	9.7 mm
product length	77.7 mm
product width	12.7 mm
