ACC-100601

MMIC, 9W Ka-Band Power Amplifier 27.5-31 GHZ, GA-N, TGA-2595, CFE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
frequency 27.5 - 31.0 GHz
output power rated 9W
Product Revision B
RF SPECIFICATIONS

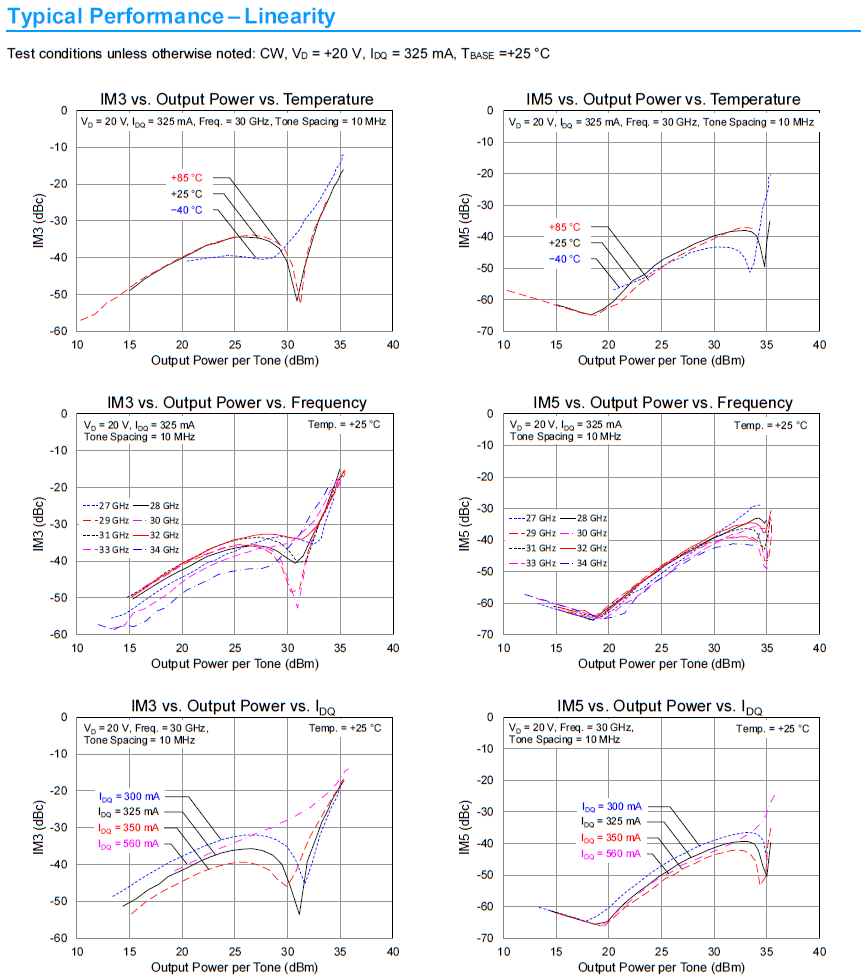

IM3 -30 dBc @ 33 dBm/tone
IM5 -35 dBc @ 33 dBm/tone

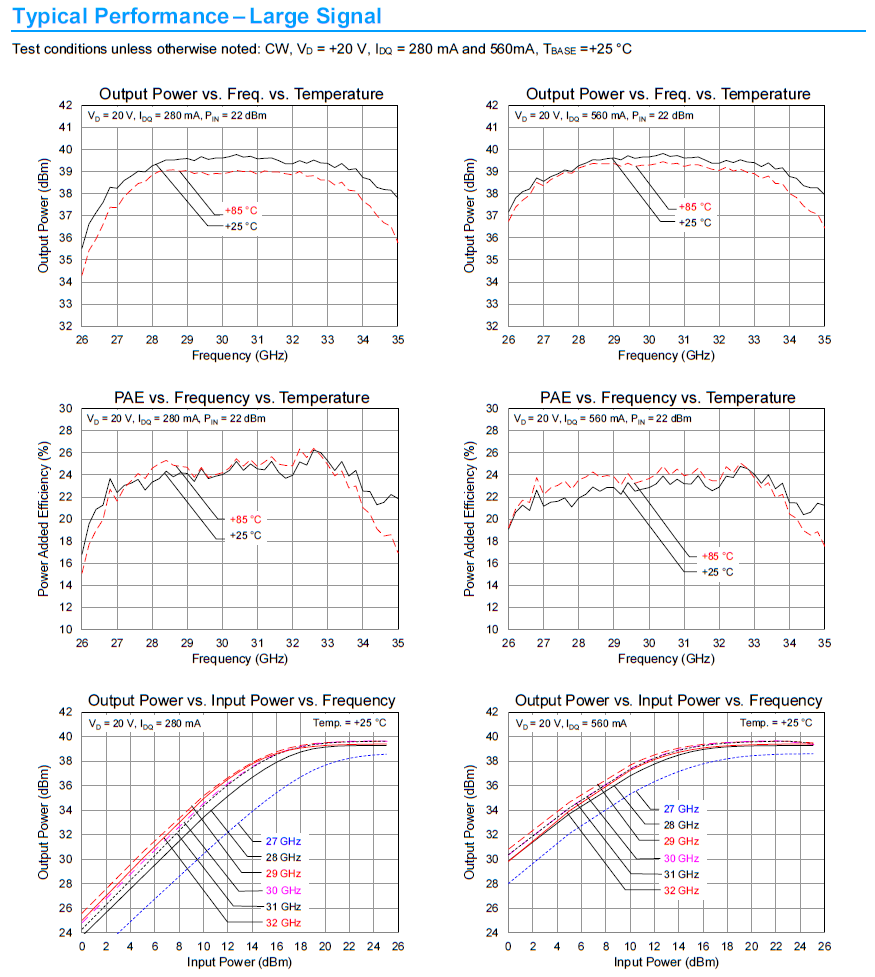

output power 39 dBm (PIN = 22 dBm), CW
return loss 20 dB
small signal gain 30 dB
ELECTRICAL SPECIFICATIONS

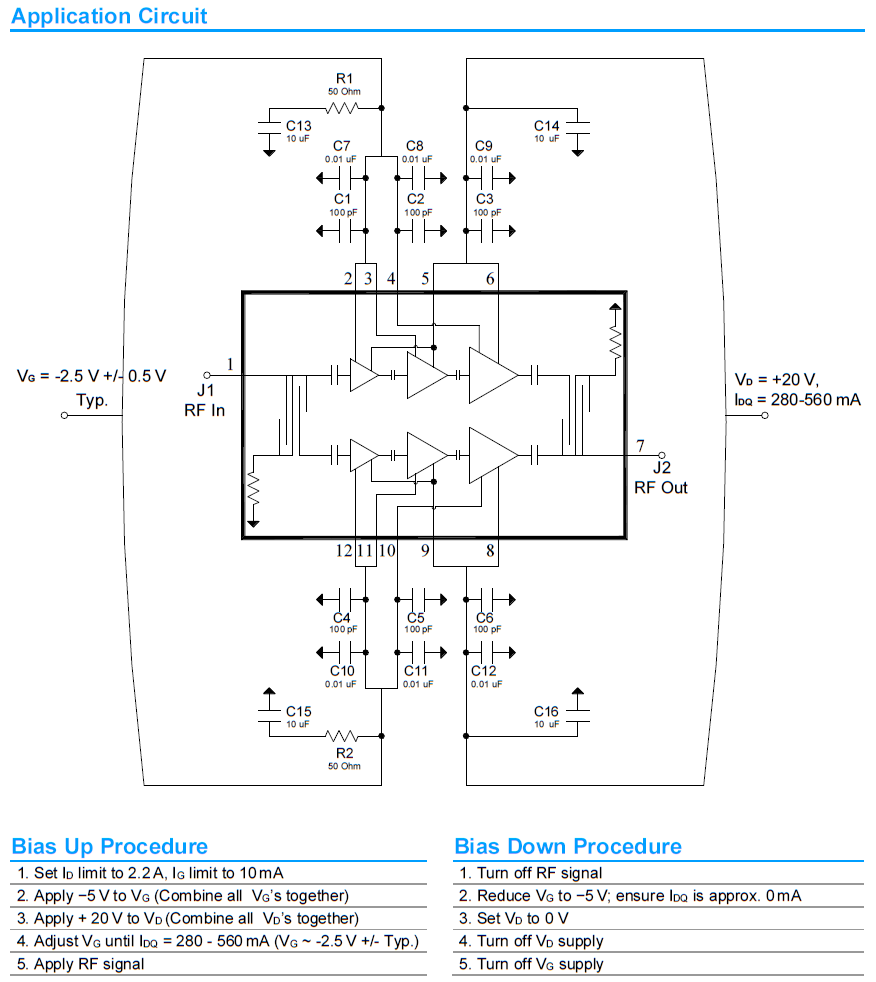

bias VD = +20 V
IDQ = 280-560 mA
VG ≈ -2.5 V typ.

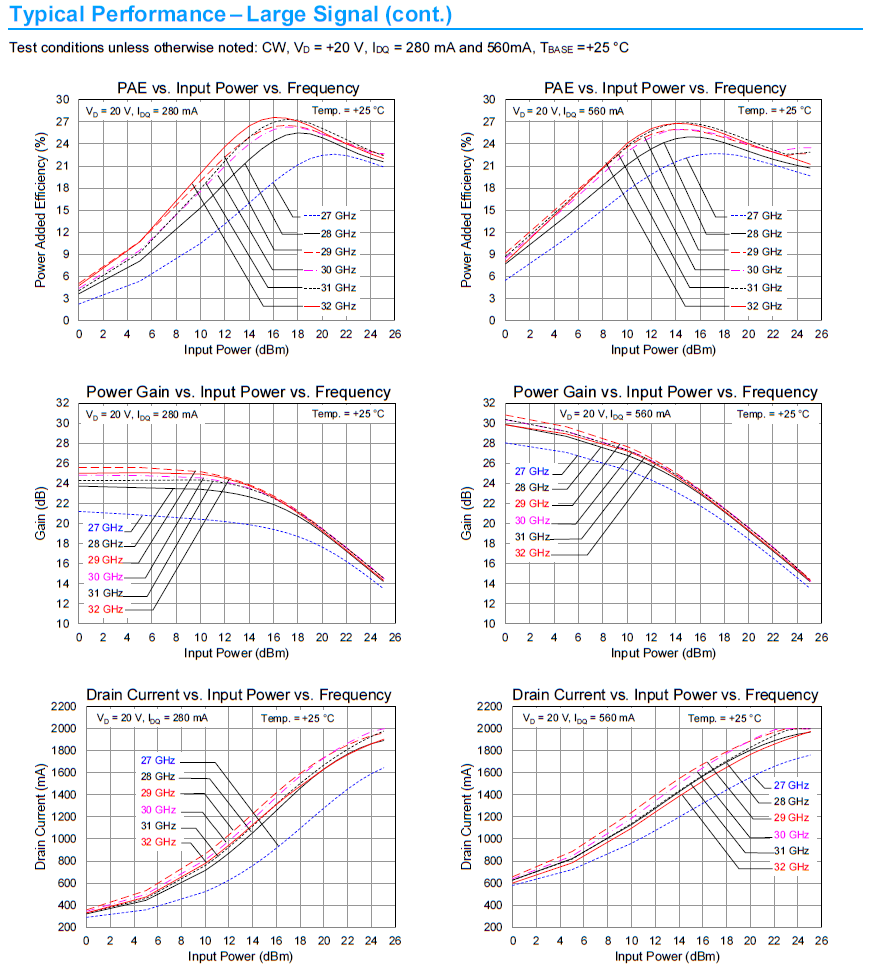

PAE 22% (PIN = 22 dBm), CW
PHYSICAL SPECIFICATIONS

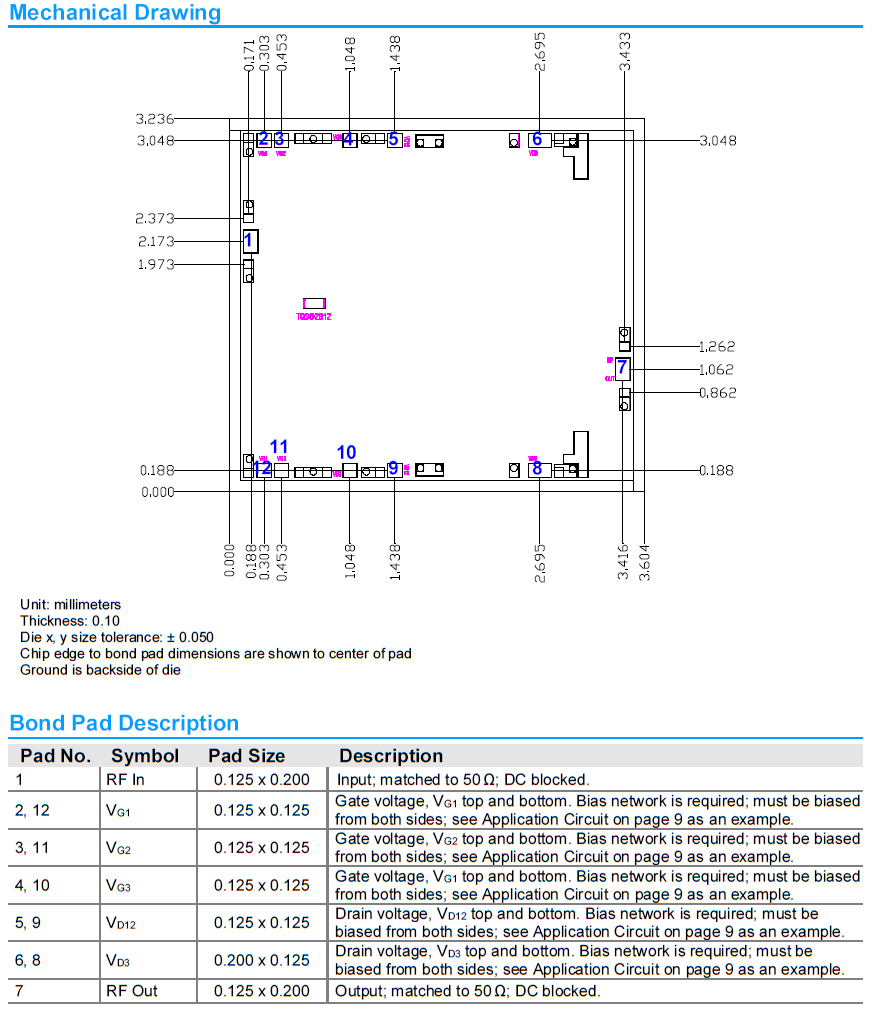

product dimensions (LxWxH) Chip Dimensions: 3.60 x 3.24 x 0.10 mm
