ACC-101007
Lightning Surge Protector
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Email is required.
Or download now:
Something went wrong. Please try again.
Open here
| RF SPECIFICATIONS | |
|---|---|
| frequency range | 0 - 6 GHz |
| impedance | 50Ω |
| insertion loss | 0.6 dB max. (0 - 6 GHz) |
| VSWR | 1.2 : 1 max. (0 - 6 GHz) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| gas tube breakdown voltage | 90 V ± 20% |

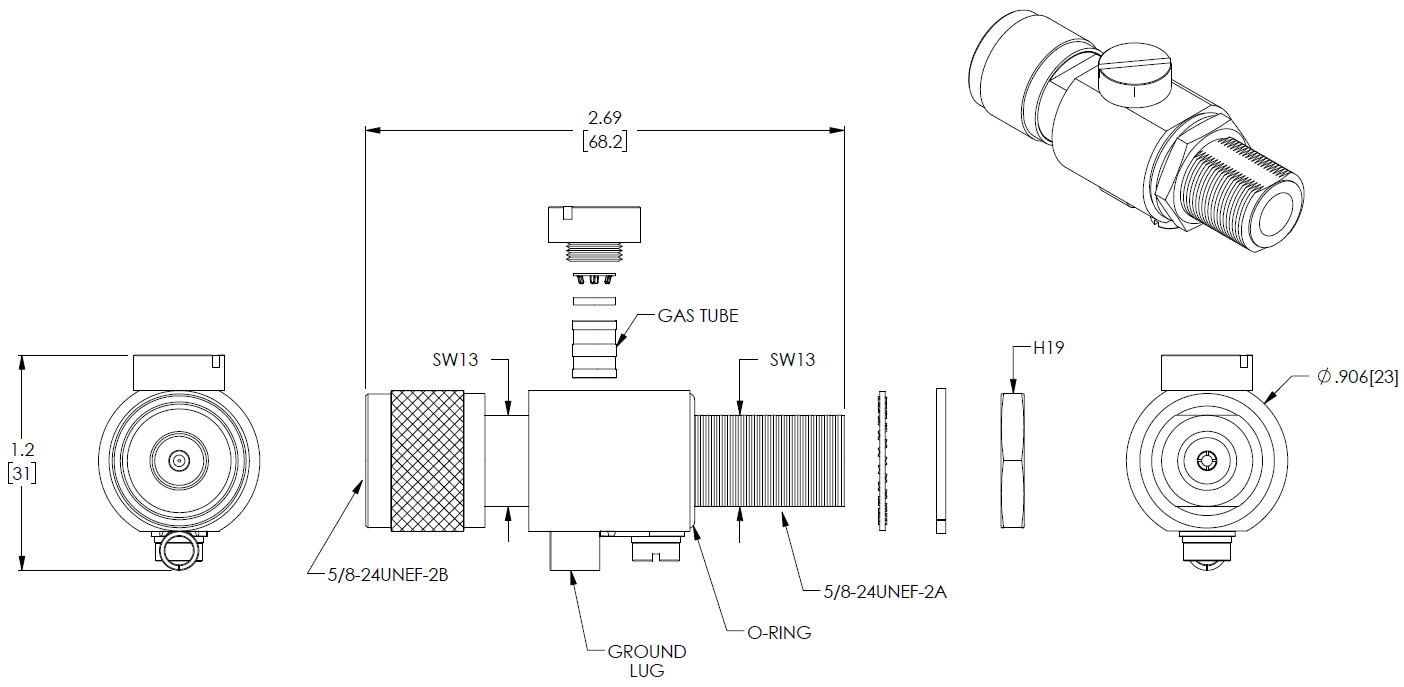

| PHYSICAL SPECIFICATIONS | |
|---|---|
| body material | Nickel Plated Brass |
| connector 1 | N-Connector (Male) |
| connector 2 | Bulkhead N-Connector (Female) |
| gasket material | Rubber |
| pin material | Gold Plated Brass |
| product height | 31 mm max. |
| product length | 68 mm max. |
| product weight | 0.11 kg |
| product width | 23 mm max. |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | 8536308000 |
| Country of Origin | Made in the United States of America |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Total Aluminium Content | - |
| Aluminum Country of Smelt and Cast | - |
| Total Aluminium Value | - |
