ACU for COM10-X Maritime terminal
ACU for COM10-X Maritime terminal
ACU for COM10-X Maritime terminal
ACU for COM10-X Maritime terminal

ACU-X10

ACU for COM10-X Maritime terminal

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



ACU is a central device that end users can be to control the antenna.

KEY SPECIFICATIONS
external I/O RS-232C, Mini-USB, Ethernet, Console
gyro interface NMEA 0183, Synchro, Step by Step
input power 100-120V AC / 200-240V AC, 50 / 60Hz, 8A / 4A
RF frequency 950 - 2150 MHz
Rx output power 48V DC, 4.18A
Tx output power 48V DC, 3.2A
Product Revision B

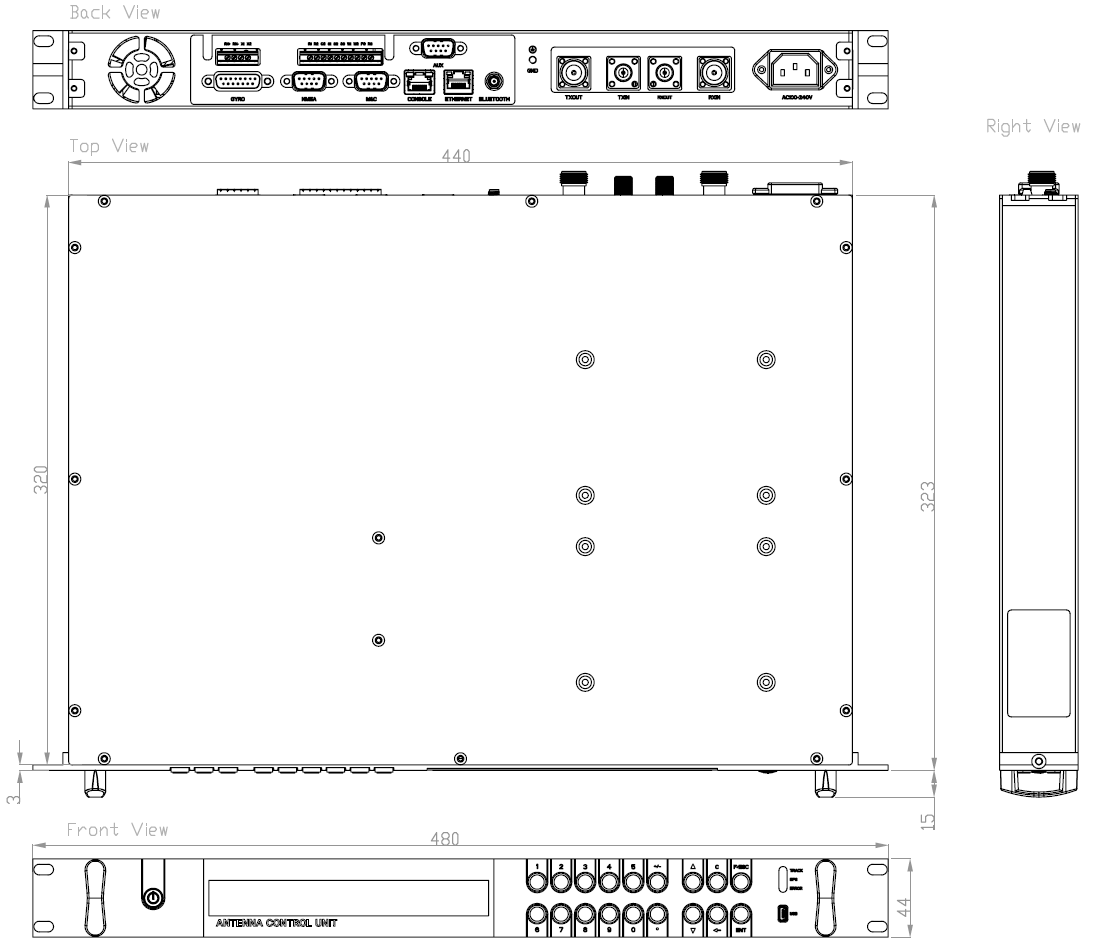

PHYSICAL SPECIFICATIONS
back panel
  • Gyro: Ship’s gyro input (15 Pins D-Sub Connector) port, can accept the GPS data and heading angle when using the GPS compass
  • I/O & gyro strip connector (Terminal strip connector)
    • R1, R2, COM, S1, S2, S3: Input the ship’s gyro signal (synchro, step by step type)
    • SW1, SW2: Contact closure function for TX control
      • TX is mute: SW1 and SW2 are open
      • TX is not mute (Normal): SW1 and SW2 are short
  • NMEA strip connector: NMEA type gyro input (RX+, RX-)
  • NMEA: Output GPS data (9 Pins D-sub connector), input GPS data when connect with external GPS
  • M&C: Monitor and control using the PC (9 Pins D-sub connector)
  • Console:
    • GPS data output
    • 0V output when TX is not mute (Normal), 5V output when TX is mute
    • Receive the external lock state & external AGC value from mode
  • Ethernet: Monitoring and setting using the Ethernet on remote site, receive the ABS protocol (Open AMIP, ROAM, STM VACP)
  • AUX: Send protocol to VCS for dual antenna system
  • AC Power: Input the AC 100~240V 50/60Hz
  • Fan

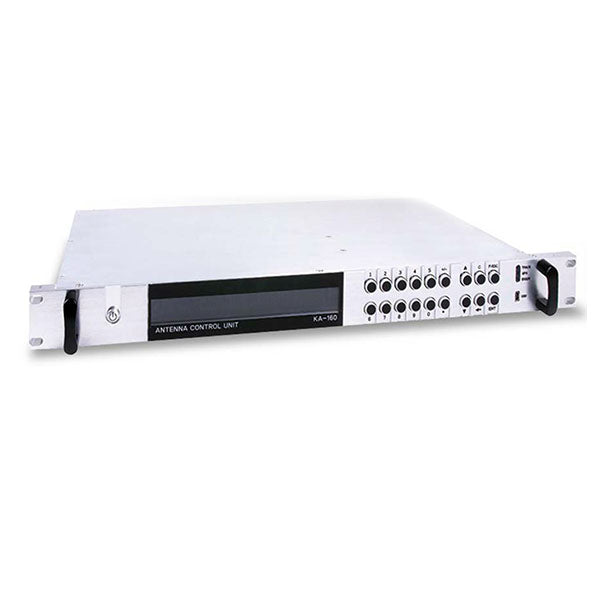

front panel
  • USB Port
  • Power Switch
  • LCD
  • Button: Numerical Key, Cursor
  • LED: Track, GPS,Eerror
  • Mini USB Port: For M&C
product height 44 mm
product length 480 mm
product weight 4.0 kg
product width 320 mm
size 19” Rack 1U size
