Name: Advanced GNSS Anti-Jamming Module - Single Band, OEM
Brand: Norsat International Inc.
SKU: ATJDAO0100-S
Price: 7320.00 USD
Availability: InStock

Advanced GNSS Anti-Jamming Module - Single Band, OEM

ATJDAO0100-S

Advanced GNSS Anti-Jamming Module - Single Band, OEM

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":67852167676271,"title":"GPS L1\/Galileo E1 \/ N\/A \/ Yes","option1":"GPS L1\/Galileo E1","option2":"N\/A","option3":"Yes","sku":"ATJDAO0100-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ N\/A \/ Yes","public_title":"GPS L1\/Galileo E1 \/ N\/A \/ Yes","options":["GPS L1\/Galileo E1","N\/A","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167709039,"title":"GPS L1\/Galileo E1 \/ N\/A \/ No","option1":"GPS L1\/Galileo E1","option2":"N\/A","option3":"No","sku":"ATJDAO0100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ N\/A \/ No","public_title":"GPS L1\/Galileo E1 \/ N\/A \/ No","options":["GPS L1\/Galileo E1","N\/A","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167741807,"title":"GPS L1\/Galileo E1 \/ GPS L2 \/ Yes","option1":"GPS L1\/Galileo E1","option2":"GPS L2","option3":"Yes","sku":"ATJDAO0102-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L2 \/ Yes","public_title":"GPS L1\/Galileo E1 \/ GPS L2 \/ Yes","options":["GPS L1\/Galileo E1","GPS L2","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167774575,"title":"GPS L1\/Galileo E1 \/ GPS L2 \/ No","option1":"GPS L1\/Galileo E1","option2":"GPS L2","option3":"No","sku":"ATJDAO0102","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L2 \/ No","public_title":"GPS L1\/Galileo E1 \/ GPS L2 \/ No","options":["GPS L1\/Galileo E1","GPS L2","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167807343,"title":"GPS L1\/Galileo E1 \/ GPS L5 \/ Yes","option1":"GPS L1\/Galileo E1","option2":"GPS L5","option3":"Yes","sku":"ATJDAO0103-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L5 \/ Yes","public_title":"GPS L1\/Galileo E1 \/ GPS L5 \/ Yes","options":["GPS L1\/Galileo E1","GPS L5","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167840111,"title":"GPS L1\/Galileo E1 \/ GPS L5 \/ No","option1":"GPS L1\/Galileo E1","option2":"GPS L5","option3":"No","sku":"ATJDAO0103","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L5 \/ No","public_title":"GPS L1\/Galileo E1 \/ GPS L5 \/ No","options":["GPS L1\/Galileo E1","GPS L5","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167872879,"title":"GPS L1\/Galileo E1 \/ GLONASS G1 \/ Yes","option1":"GPS L1\/Galileo E1","option2":"GLONASS G1","option3":"Yes","sku":"ATJDAO0104-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GLONASS G1 \/ Yes","public_title":"GPS L1\/Galileo E1 \/ GLONASS G1 \/ Yes","options":["GPS L1\/Galileo E1","GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167905647,"title":"GPS L1\/Galileo E1 \/ GLONASS G1 \/ No","option1":"GPS L1\/Galileo E1","option2":"GLONASS G1","option3":"No","sku":"ATJDAO0104","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GLONASS G1 \/ No","public_title":"GPS L1\/Galileo E1 \/ GLONASS G1 \/ No","options":["GPS L1\/Galileo E1","GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167938415,"title":"GPS L1\/Galileo E1 \/ GPS L2 + GPS L5 \/ Yes","option1":"GPS L1\/Galileo E1","option2":"GPS L2 + GPS L5","option3":"Yes","sku":"ATJDAO0123-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L2 + GPS L5 \/ Yes","public_title":"GPS L1\/Galileo E1 \/ GPS L2 + GPS L5 \/ Yes","options":["GPS L1\/Galileo E1","GPS L2 + GPS L5","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852167971183,"title":"GPS L1\/Galileo E1 \/ GPS L2 + GPS L5 \/ No","option1":"GPS L1\/Galileo E1","option2":"GPS L2 + GPS L5","option3":"No","sku":"ATJDAO0123","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L2 + GPS L5 \/ No","public_title":"GPS L1\/Galileo E1 \/ GPS L2 + GPS L5 \/ No","options":["GPS L1\/Galileo E1","GPS L2 + GPS L5","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168003951,"title":"GPS L1\/Galileo E1 \/ GPS L2 + GLONASS G1 \/ Yes","option1":"GPS L1\/Galileo E1","option2":"GPS L2 + GLONASS G1","option3":"Yes","sku":"ATJDAO0124-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L2 + GLONASS G1 \/ Yes","public_title":"GPS L1\/Galileo E1 \/ GPS L2 + GLONASS G1 \/ Yes","options":["GPS L1\/Galileo E1","GPS L2 + GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168036719,"title":"GPS L1\/Galileo E1 \/ GPS L2 + GLONASS G1 \/ No","option1":"GPS L1\/Galileo E1","option2":"GPS L2 + GLONASS G1","option3":"No","sku":"ATJDAO0124","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L2 + GLONASS G1 \/ No","public_title":"GPS L1\/Galileo E1 \/ GPS L2 + GLONASS G1 \/ No","options":["GPS L1\/Galileo E1","GPS L2 + GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168069487,"title":"GPS L1\/Galileo E1 \/ GPS L5 + GLONASS G1 \/ Yes","option1":"GPS L1\/Galileo E1","option2":"GPS L5 + GLONASS G1","option3":"Yes","sku":"ATJDAO0134-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L5 + GLONASS G1 \/ Yes","public_title":"GPS L1\/Galileo E1 \/ GPS L5 + GLONASS G1 \/ Yes","options":["GPS L1\/Galileo E1","GPS L5 + GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168102255,"title":"GPS L1\/Galileo E1 \/ GPS L5 + GLONASS G1 \/ No","option1":"GPS L1\/Galileo E1","option2":"GPS L5 + GLONASS G1","option3":"No","sku":"ATJDAO0134","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L1\/Galileo E1 \/ GPS L5 + GLONASS G1 \/ No","public_title":"GPS L1\/Galileo E1 \/ GPS L5 + GLONASS G1 \/ No","options":["GPS L1\/Galileo E1","GPS L5 + GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168135023,"title":"GPS L2 \/ N\/A \/ Yes","option1":"GPS L2","option2":"N\/A","option3":"Yes","sku":"ATJDAO0200-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ N\/A \/ Yes","public_title":"GPS L2 \/ N\/A \/ Yes","options":["GPS L2","N\/A","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168167791,"title":"GPS L2 \/ N\/A \/ No","option1":"GPS L2","option2":"N\/A","option3":"No","sku":"ATJDAO0200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ N\/A \/ No","public_title":"GPS L2 \/ N\/A \/ No","options":["GPS L2","N\/A","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168200559,"title":"GPS L2 \/ GPS L1\/Galileo E1 \/ Yes","option1":"GPS L2","option2":"GPS L1\/Galileo E1","option3":"Yes","sku":"ATJDAO0201-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L1\/Galileo E1 \/ Yes","public_title":"GPS L2 \/ GPS L1\/Galileo E1 \/ Yes","options":["GPS L2","GPS L1\/Galileo E1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168233327,"title":"GPS L2 \/ GPS L1\/Galileo E1 \/ No","option1":"GPS L2","option2":"GPS L1\/Galileo E1","option3":"No","sku":"ATJDAO0201","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L1\/Galileo E1 \/ No","public_title":"GPS L2 \/ GPS L1\/Galileo E1 \/ No","options":["GPS L2","GPS L1\/Galileo E1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168266095,"title":"GPS L2 \/ GPS L5 \/ Yes","option1":"GPS L2","option2":"GPS L5","option3":"Yes","sku":"ATJDAO0203-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L5 \/ Yes","public_title":"GPS L2 \/ GPS L5 \/ Yes","options":["GPS L2","GPS L5","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168298863,"title":"GPS L2 \/ GPS L5 \/ No","option1":"GPS L2","option2":"GPS L5","option3":"No","sku":"ATJDAO0203","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L5 \/ No","public_title":"GPS L2 \/ GPS L5 \/ No","options":["GPS L2","GPS L5","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168331631,"title":"GPS L2 \/ GLONASS G1 \/ Yes","option1":"GPS L2","option2":"GLONASS G1","option3":"Yes","sku":"ATJDAO0204-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GLONASS G1 \/ Yes","public_title":"GPS L2 \/ GLONASS G1 \/ Yes","options":["GPS L2","GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168364399,"title":"GPS L2 \/ GLONASS G1 \/ No","option1":"GPS L2","option2":"GLONASS G1","option3":"No","sku":"ATJDAO0204","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GLONASS G1 \/ No","public_title":"GPS L2 \/ GLONASS G1 \/ No","options":["GPS L2","GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168397167,"title":"GPS L2 \/ GPS L1\/Galileo E1 + GPS L5 \/ Yes","option1":"GPS L2","option2":"GPS L1\/Galileo E1 + GPS L5","option3":"Yes","sku":"ATJDAO0213-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L1\/Galileo E1 + GPS L5 \/ Yes","public_title":"GPS L2 \/ GPS L1\/Galileo E1 + GPS L5 \/ Yes","options":["GPS L2","GPS L1\/Galileo E1 + GPS L5","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168429935,"title":"GPS L2 \/ GPS L1\/Galileo E1 + GPS L5 \/ No","option1":"GPS L2","option2":"GPS L1\/Galileo E1 + GPS L5","option3":"No","sku":"ATJDAO0213","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L1\/Galileo E1 + GPS L5 \/ No","public_title":"GPS L2 \/ GPS L1\/Galileo E1 + GPS L5 \/ No","options":["GPS L2","GPS L1\/Galileo E1 + GPS L5","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168462703,"title":"GPS L2 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ Yes","option1":"GPS L2","option2":"GPS L1\/Galileo E1 + GLONASS G1","option3":"Yes","sku":"ATJDAO0214-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ Yes","public_title":"GPS L2 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ Yes","options":["GPS L2","GPS L1\/Galileo E1 + GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168495471,"title":"GPS L2 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ No","option1":"GPS L2","option2":"GPS L1\/Galileo E1 + GLONASS G1","option3":"No","sku":"ATJDAO0214","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ No","public_title":"GPS L2 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ No","options":["GPS L2","GPS L1\/Galileo E1 + GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168528239,"title":"GPS L2 \/ GPS L5 + GLONASS G1 \/ Yes","option1":"GPS L2","option2":"GPS L5 + GLONASS G1","option3":"Yes","sku":"ATJDAO0234-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L5 + GLONASS G1 \/ Yes","public_title":"GPS L2 \/ GPS L5 + GLONASS G1 \/ Yes","options":["GPS L2","GPS L5 + GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168561007,"title":"GPS L2 \/ GPS L5 + GLONASS G1 \/ No","option1":"GPS L2","option2":"GPS L5 + GLONASS G1","option3":"No","sku":"ATJDAO0234","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L2 \/ GPS L5 + GLONASS G1 \/ No","public_title":"GPS L2 \/ GPS L5 + GLONASS G1 \/ No","options":["GPS L2","GPS L5 + GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168593775,"title":"GPS L5 \/ N\/A \/ Yes","option1":"GPS L5","option2":"N\/A","option3":"Yes","sku":"ATJDAO0300-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ N\/A \/ Yes","public_title":"GPS L5 \/ N\/A \/ Yes","options":["GPS L5","N\/A","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168626543,"title":"GPS L5 \/ N\/A \/ No","option1":"GPS L5","option2":"N\/A","option3":"No","sku":"ATJDAO0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ N\/A \/ No","public_title":"GPS L5 \/ N\/A \/ No","options":["GPS L5","N\/A","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168659311,"title":"GPS L5 \/ GPS L1\/Galileo E1 \/ Yes","option1":"GPS L5","option2":"GPS L1\/Galileo E1","option3":"Yes","sku":"ATJDAO0301-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L1\/Galileo E1 \/ Yes","public_title":"GPS L5 \/ GPS L1\/Galileo E1 \/ Yes","options":["GPS L5","GPS L1\/Galileo E1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168692079,"title":"GPS L5 \/ GPS L1\/Galileo E1 \/ No","option1":"GPS L5","option2":"GPS L1\/Galileo E1","option3":"No","sku":"ATJDAO0301","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L1\/Galileo E1 \/ No","public_title":"GPS L5 \/ GPS L1\/Galileo E1 \/ No","options":["GPS L5","GPS L1\/Galileo E1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168724847,"title":"GPS L5 \/ GPS L2 \/ Yes","option1":"GPS L5","option2":"GPS L2","option3":"Yes","sku":"ATJDAO0302-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L2 \/ Yes","public_title":"GPS L5 \/ GPS L2 \/ Yes","options":["GPS L5","GPS L2","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168757615,"title":"GPS L5 \/ GPS L2 \/ No","option1":"GPS L5","option2":"GPS L2","option3":"No","sku":"ATJDAO0302","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L2 \/ No","public_title":"GPS L5 \/ GPS L2 \/ No","options":["GPS L5","GPS L2","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168790383,"title":"GPS L5 \/ GLONASS G1 \/ Yes","option1":"GPS L5","option2":"GLONASS G1","option3":"Yes","sku":"ATJDAO0304-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GLONASS G1 \/ Yes","public_title":"GPS L5 \/ GLONASS G1 \/ Yes","options":["GPS L5","GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168823151,"title":"GPS L5 \/ GLONASS G1 \/ No","option1":"GPS L5","option2":"GLONASS G1","option3":"No","sku":"ATJDAO0304","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GLONASS G1 \/ No","public_title":"GPS L5 \/ GLONASS G1 \/ No","options":["GPS L5","GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168855919,"title":"GPS L5 \/ GPS L1\/Galileo E1 + GPS L2 \/ Yes","option1":"GPS L5","option2":"GPS L1\/Galileo E1 + GPS L2","option3":"Yes","sku":"ATJDAO0312-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L1\/Galileo E1 + GPS L2 \/ Yes","public_title":"GPS L5 \/ GPS L1\/Galileo E1 + GPS L2 \/ Yes","options":["GPS L5","GPS L1\/Galileo E1 + GPS L2","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168888687,"title":"GPS L5 \/ GPS L1\/Galileo E1 + GPS L2 \/ No","option1":"GPS L5","option2":"GPS L1\/Galileo E1 + GPS L2","option3":"No","sku":"ATJDAO0312","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L1\/Galileo E1 + GPS L2 \/ No","public_title":"GPS L5 \/ GPS L1\/Galileo E1 + GPS L2 \/ No","options":["GPS L5","GPS L1\/Galileo E1 + GPS L2","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168921455,"title":"GPS L5 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ Yes","option1":"GPS L5","option2":"GPS L1\/Galileo E1 + GLONASS G1","option3":"Yes","sku":"ATJDAO0314-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ Yes","public_title":"GPS L5 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ Yes","options":["GPS L5","GPS L1\/Galileo E1 + GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168954223,"title":"GPS L5 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ No","option1":"GPS L5","option2":"GPS L1\/Galileo E1 + GLONASS G1","option3":"No","sku":"ATJDAO0314","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ No","public_title":"GPS L5 \/ GPS L1\/Galileo E1 + GLONASS G1 \/ No","options":["GPS L5","GPS L1\/Galileo E1 + GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852168986991,"title":"GPS L5 \/ GPS L2 + GLONASS G1 \/ Yes","option1":"GPS L5","option2":"GPS L2 + GLONASS G1","option3":"Yes","sku":"ATJDAO0324-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L2 + GLONASS G1 \/ Yes","public_title":"GPS L5 \/ GPS L2 + GLONASS G1 \/ Yes","options":["GPS L5","GPS L2 + GLONASS G1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169019759,"title":"GPS L5 \/ GPS L2 + GLONASS G1 \/ No","option1":"GPS L5","option2":"GPS L2 + GLONASS G1","option3":"No","sku":"ATJDAO0324","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GPS L5 \/ GPS L2 + GLONASS G1 \/ No","public_title":"GPS L5 \/ GPS L2 + GLONASS G1 \/ No","options":["GPS L5","GPS L2 + GLONASS G1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169052527,"title":"GLONASS G1 \/ N\/A \/ Yes","option1":"GLONASS G1","option2":"N\/A","option3":"Yes","sku":"ATJDAO0400-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ N\/A \/ Yes","public_title":"GLONASS G1 \/ N\/A \/ Yes","options":["GLONASS G1","N\/A","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169085295,"title":"GLONASS G1 \/ N\/A \/ No","option1":"GLONASS G1","option2":"N\/A","option3":"No","sku":"ATJDAO0400","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ N\/A \/ No","public_title":"GLONASS G1 \/ N\/A \/ No","options":["GLONASS G1","N\/A","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169118063,"title":"GLONASS G1 \/ GPS L1\/Galileo E1 \/ Yes","option1":"GLONASS G1","option2":"GPS L1\/Galileo E1","option3":"Yes","sku":"ATJDAO0401-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L1\/Galileo E1 \/ Yes","public_title":"GLONASS G1 \/ GPS L1\/Galileo E1 \/ Yes","options":["GLONASS G1","GPS L1\/Galileo E1","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169150831,"title":"GLONASS G1 \/ GPS L1\/Galileo E1 \/ No","option1":"GLONASS G1","option2":"GPS L1\/Galileo E1","option3":"No","sku":"ATJDAO0401","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L1\/Galileo E1 \/ No","public_title":"GLONASS G1 \/ GPS L1\/Galileo E1 \/ No","options":["GLONASS G1","GPS L1\/Galileo E1","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169183599,"title":"GLONASS G1 \/ GPS L2 \/ Yes","option1":"GLONASS G1","option2":"GPS L2","option3":"Yes","sku":"ATJDAO0402-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L2 \/ Yes","public_title":"GLONASS G1 \/ GPS L2 \/ Yes","options":["GLONASS G1","GPS L2","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169216367,"title":"GLONASS G1 \/ GPS L2 \/ No","option1":"GLONASS G1","option2":"GPS L2","option3":"No","sku":"ATJDAO0402","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L2 \/ No","public_title":"GLONASS G1 \/ GPS L2 \/ No","options":["GLONASS G1","GPS L2","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169249135,"title":"GLONASS G1 \/ GPS L5 \/ Yes","option1":"GLONASS G1","option2":"GPS L5","option3":"Yes","sku":"ATJDAO0403-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L5 \/ Yes","public_title":"GLONASS G1 \/ GPS L5 \/ Yes","options":["GLONASS G1","GPS L5","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169281903,"title":"GLONASS G1 \/ GPS L5 \/ No","option1":"GLONASS G1","option2":"GPS L5","option3":"No","sku":"ATJDAO0403","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L5 \/ No","public_title":"GLONASS G1 \/ GPS L5 \/ No","options":["GLONASS G1","GPS L5","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169314671,"title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L2 \/ Yes","option1":"GLONASS G1","option2":"GPS L1\/Galileo E1 + GPS L2","option3":"Yes","sku":"ATJDAO0412-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L2 \/ Yes","public_title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L2 \/ Yes","options":["GLONASS G1","GPS L1\/Galileo E1 + GPS L2","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169347439,"title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L2 \/ No","option1":"GLONASS G1","option2":"GPS L1\/Galileo E1 + GPS L2","option3":"No","sku":"ATJDAO0412","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L2 \/ No","public_title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L2 \/ No","options":["GLONASS G1","GPS L1\/Galileo E1 + GPS L2","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169380207,"title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L5 \/ Yes","option1":"GLONASS G1","option2":"GPS L1\/Galileo E1 + GPS L5","option3":"Yes","sku":"ATJDAO0413-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L5 \/ Yes","public_title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L5 \/ Yes","options":["GLONASS G1","GPS L1\/Galileo E1 + GPS L5","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169412975,"title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L5 \/ No","option1":"GLONASS G1","option2":"GPS L1\/Galileo E1 + GPS L5","option3":"No","sku":"ATJDAO0413","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L5 \/ No","public_title":"GLONASS G1 \/ GPS L1\/Galileo E1 + GPS L5 \/ No","options":["GLONASS G1","GPS L1\/Galileo E1 + GPS L5","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169445743,"title":"GLONASS G1 \/ GPS L2 + GPS L5 \/ Yes","option1":"GLONASS G1","option2":"GPS L2 + GPS L5","option3":"Yes","sku":"ATJDAO0423-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L2 + GPS L5 \/ Yes","public_title":"GLONASS G1 \/ GPS L2 + GPS L5 \/ Yes","options":["GLONASS G1","GPS L2 + GPS L5","Yes"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67852169478511,"title":"GLONASS G1 \/ GPS L2 + GPS L5 \/ No","option1":"GLONASS G1","option2":"GPS L2 + GPS L5","option3":"No","sku":"ATJDAO0423","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Advanced GNSS Anti-Jamming Module - Single Band, OEM - GLONASS G1 \/ GPS L2 + GPS L5 \/ No","public_title":"GLONASS G1 \/ GPS L2 + GPS L5 \/ No","options":["GLONASS G1","GPS L2 + GPS L5","No"],"price":732000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

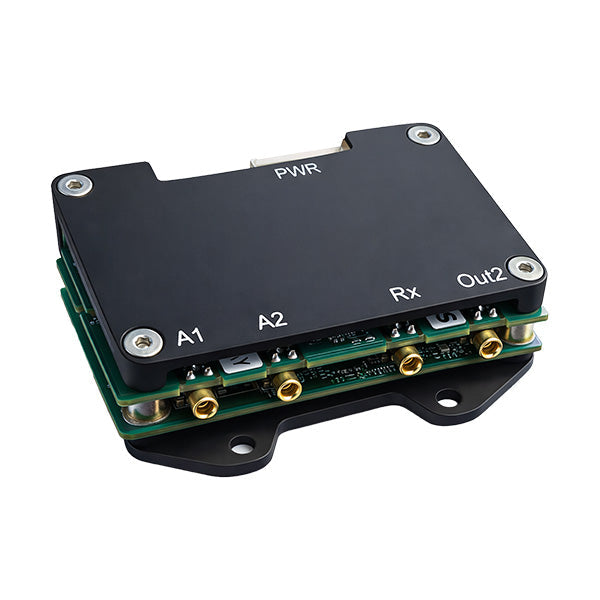

The GPSdome-SunStone Single Band OEM is a robust, small-sized and lightweight non-enclosed OEM, single-band, 2-element GNSS anti-jamming module that keeps navigation and autonomous operations running in GNSS-challenged environments.

Protects one GNSS band, selectable from GPS L1/Galileo E1, GPS L2, GPS L5 or GLONASS G1
Optional passthrough of up to two additional unprotected GNSS bands
Optional direct path to a second receiver (unprotected)
Software-defined, field-upgradeable anti-jamming algorithms with null steering
Real-time jamming detection, status and power-level monitoring via UART
Compatible with modern and legacy GNSS receivers with a physical RF input
Non-enclosed module for integration into your own platform or housing

KEY SPECIFICATIONS
antenna gain range	15-40 dB configurable
commercial non military use	Yes - supports civilian/commercial use
compression point	-23 dBm
direct path second receiver	Yes - direct path to second receiver; secondary path is unprotected
GNSS anti jamming algorithms	Software defined anti-jamming algorithms; Null Steering
GNSS jammer power level monitoring	Yes - jammed Band and max power monitoring via UART
GNSS jamming detection	Real-time jamming detection/status and power-level monitoring
GNSS M code support	Yes
GNSS passthrough bands	Optional passthrough bands selectable from: E1/L1, L2, L5, G1
GNSS protected bands	1 protected band, selectable from: E1/L1, L2, L5, G1
GNSS real time jamming status	Yes - real-time jamming status via UART
GNSS receiver compatibility	Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input
GNSS software upgradeability	Software upgradeable
GNSS SSASM support	Yes
latency	100ns ±15ns, fixed
operating environment	Civilian, commercial, or military environments
passthrough frequency	None
path gain	±3 dB
protected frequency option	GPS L1/Galileo E1
Product Revision	A

RF SPECIFICATIONS
antenna inputs	2 antenna inputs: A1, A2; 50Ω
antenna output RX2	RX2/OUT2: optional 50Ω unprotected auxiliary output
receiver outputs	RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output
receiver output RX1	RX/RX1: protected 50Ω RF output

ELECTRICAL SPECIFICATIONS
antenna input power connector	DC power supplied to active antennas through A1/A2 RF inputs
antenna input voltage	2.7-14 VDC configurable
dry contacts	Jamming indication; Max 32V, 50mA
GNSS power consumption	2.7W nominal / 3W peak
ground	GND
maximum current per connector	40 mA max per connector
power supply	6-32 VDC
RF connectors	MMCX Female / SMA Female
UART interface	UART for maintenance/status; 115200 baud
VCC	UART VCC 5 VDC
wire connections average power consumption	Single Band: 2.7W nominal \| Peak: 3W
wire connection power supply voltage	6-32 VDC

INTERFACE SPECIFICATIONS
LED indicators	Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error
mounting	4 × M3 screws (not supplied)
wire connections dry contact function	Jamming indication (dry contact closes when jamming is detected)
wire connections dry contact maximum rating	Max 32V, 50mA
wire connections dry contact negative wire	Green - Negative (-), 26 AWG
wire connections dry contact positive wire	Purple - Positive (+), 26 AWG
wire connections GNSS receiver	RX/RX1 protected RF output to GNSS receiver
wire connections ground wire	Black - GND (-), 22 AWG
wire connections positive power wire	Red - Positive (+), 22 AWG
wire connections UART function	UART communication for maintenance/status
wire connections UART ground wire	Blue - UART GND, 26 AWG
wire connections UART RX wire	Gray - UART RX, 26 AWG
wire connections UART TX wire	Yellow - UART TX, 26 AWG
wire connections VCC 5V WIRE	White - VCC 5 VDC, 26 AWG

ENVIRONMENTAL SPECIFICATIONS
OEM IP rating	No
operating temperature	-40°C to 71°C

PHYSICAL SPECIFICATIONS
product height	22.2 m
product length	76 m
product weight	0.080 kg
product width	55 m

INFORMATION
HS Code	N/A - Services
Country of Origin	Made in Israel
Ex Works	Richmond, BC, Canada
ECCN Number	7A005.b
Warranty	1 year
Dangerous Goods	-
Unit Package Dimensions	30 × 20 × 20 cm (L × W × H)
Unit Package Weight	Varies by quantity
Total Aluminium Content	Not available
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	-
