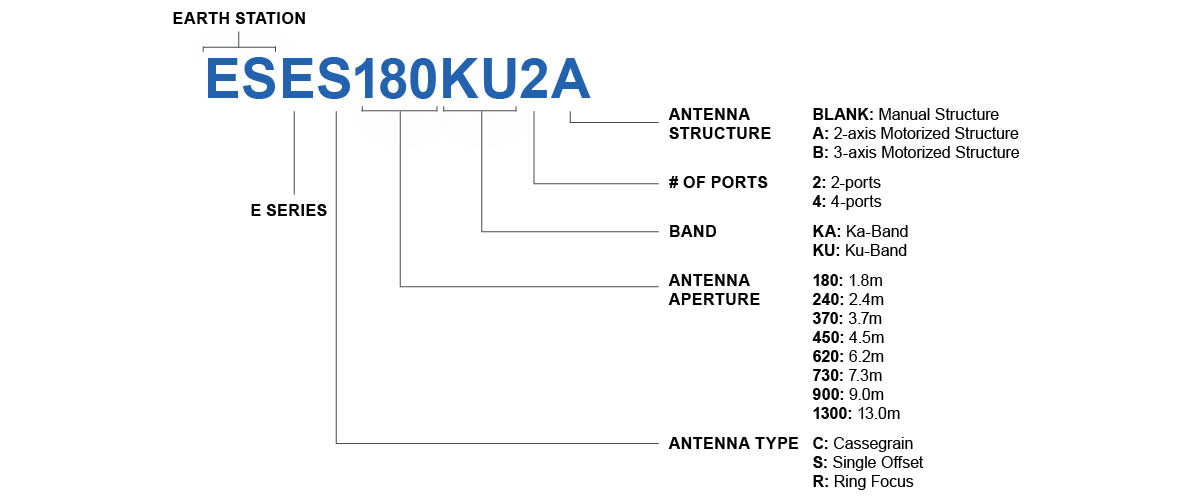

ESEC1300KA2A

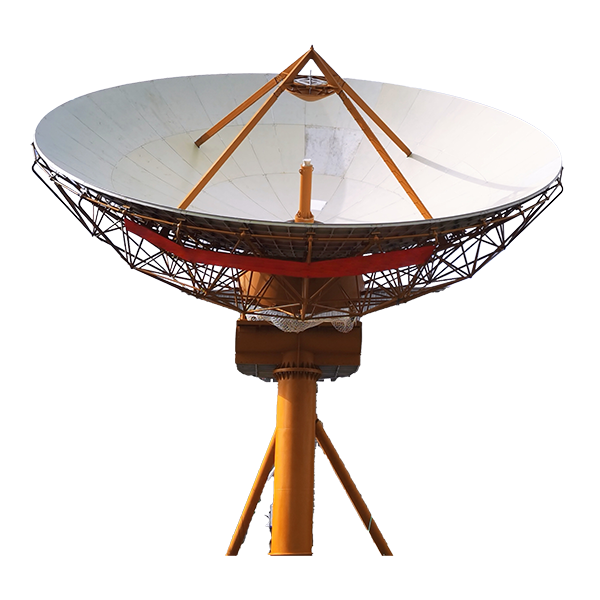

ANCHOR 13.0m Ka-Band Earth Station Antenna

Anchor

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



We recommend purchasing the corresponding Antenna Control System along with the motorized Earth Station, unless you plan to develop the control system yourself. Please note that the Antenna Control System is sold separately at an additional cost.
For Manual Structure Antennas, a control system is not required.

Please note: Installation services are not included with this product.

KEY SPECIFICATIONS
antenna aperture 13 m
band Ka-Band
Product Revision B
ANTENNA SPECIFICATIONS
antenna drive mode 2-axis motorized structure
antenna type Cassegrain
number of ports 2-ports
polarization Circular
Rx axial ratio 2 ports ≤1.5 dB
sidelobe ≤-14dB; 29 - 25 logθ(1°≤θ＜20°)
Tx axial ratio 2 ports ≤1.5 dB
RF SPECIFICATIONS
noise temperature elevation 10° 129 K
noise temperature elevation 20° 90 K
noise temperature elevation 50° 65 K
port isolation Rx-Tx ≥85 dB
Rx feed insertion loss ≤0.8dB
Rx frequency 17.70 - 21.20 GHz
rx gain ≥66.03+20lg(f/19.0GHz)
Rx VSWR 1.35 : 1
Tx feed insertion loss ≤0.9dB
Tx frequency 27.50 - 31.00 GHz
tx gain ≥69.70+20lg(f/29.0GHz)
Tx VSWR 1.35 : 1
ELECTRICAL SPECIFICATIONS
power capacity 2 KW
INTERFACE SPECIFICATIONS
Rx interface FBP-220(WR-42)
Tx interface FBP-320(WR-28)
ENVIRONMENTAL SPECIFICATIONS
humidity 1.0
temperature operational -30°C to +70°C
windspeed operational 72 km/h
windspeed survival 120km/h
PHYSICAL SPECIFICATIONS
motion range AZ 5° - 355°
motion range EL 5° - 90°
motion range POL ±90°
RMS ≤0.3 mm
