Name: ANCHOR 6.2m Ku-Band Earth Station Antenna
Brand: Norsat International Inc.
SKU: ESER620KU2B
Price: 81667.00 USD
Availability: InStock

ANCHOR 6.2m Ku-Band Earth Station Antenna

ANCHOR 1.8m Ka-Band Earth Station Antenna

ESER620KU2B

ANCHOR 6.2m Ku-Band Earth Station Antenna

Anchor

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":43458719744183,"title":"2-ports","option1":"2-ports","option2":null,"option3":null,"sku":"ESER620KU2B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ANCHOR 6.2m Ku-Band Earth Station Antenna - 2-ports","public_title":"2-ports","options":["2-ports"],"price":8166700,"weight":3590000,"compare_at_price":7350000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43458743697591,"title":"4-ports","option1":"4-ports","option2":null,"option3":null,"sku":"ESER620KU4B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ANCHOR 6.2m Ku-Band Earth Station Antenna - 4-ports","public_title":"4-ports","options":["4-ports"],"price":9722300,"weight":3590000,"compare_at_price":8750000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

We recommend purchasing the corresponding Antenna Control System along with the motorized Earth Station, unless you plan to develop the control system yourself. Please note that the Antenna Control System is sold separately at an additional cost.
For Manual Structure Antennas, a control system is not required.
For the 6.2m Ku-Band Earth Station Antenna, both the single-speed and dual-speed control systems are compatible. We recommend the dual-speed control system for its flexibility in offering both high and low drive speeds. However, you are also welcome to choose the more cost-efficient single-speed option, which provides a constant drive speed.

Please note: Installation services are not included with this product.

KEY SPECIFICATIONS
antenna aperture	6.2m
band	Ku-Band
Product Revision	A

ANTENNA SPECIFICATIONS
antenna drive mode	3-axis motorized structure
antenna type	Ring Focus
number of ports	2-ports
polarization	Linear
Rx axial ratio 2 ports	1.2 dB
Rx axis ratio	≥30 dB
sidelobe	≤-14dB; 29 - 25 logθ(1°≤θ＜20°)
Tx axial ratio 2 ports	1.2 dB
Tx axis ratio	≥30 dB

RF SPECIFICATIONS
noise temperature elevation 10°	50 K
noise temperature elevation 30°	39 K
noise temperature elevation 50°	36 K
port isolation Rx-Tx	85 dB
Rx feed insertion loss	≤0.35 dB
Rx frequency	10.70 ‐ 12.75 GHz
rx gain	55.85 @ 11.85GHz
Rx VSWR	1.3 : 1
Tx feed insertion loss	≤0.35 dB
Tx frequency	13.75 ‐ 14.50 GHz
tx gain	57.37 @ 14.125GHz
Tx VSWR	1.3 : 1

ELECTRICAL SPECIFICATIONS
power capacity	2 KW

INTERFACE SPECIFICATIONS
Rx interface	WR-75
Tx interface	WR-75

ENVIRONMENTAL SPECIFICATIONS
humidity	1.0
ice load	Icing 13mm: normal work; Icing 25mm: no damage
seismic capacity horizontal	0.3 G
seismic capacity vertical	0.1 G
temperature operational	-30°C to +50°C
windspeed operational	72 km/h
windspeed survival	216 km/h

PHYSICAL SPECIFICATIONS
loading capacity	1 set for 40ft container

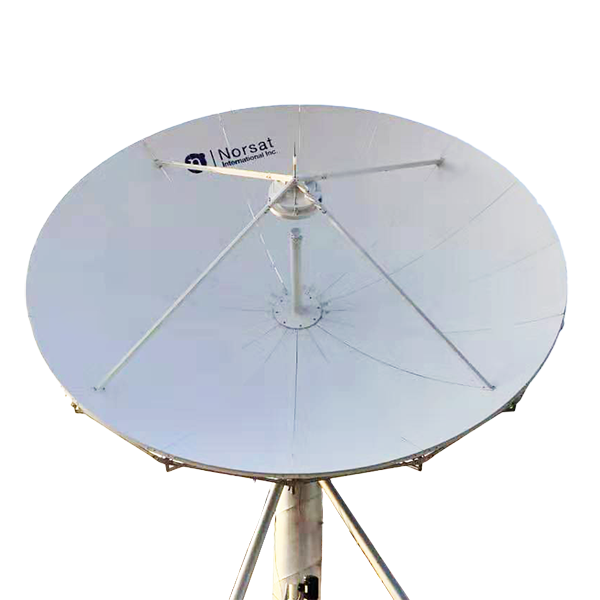

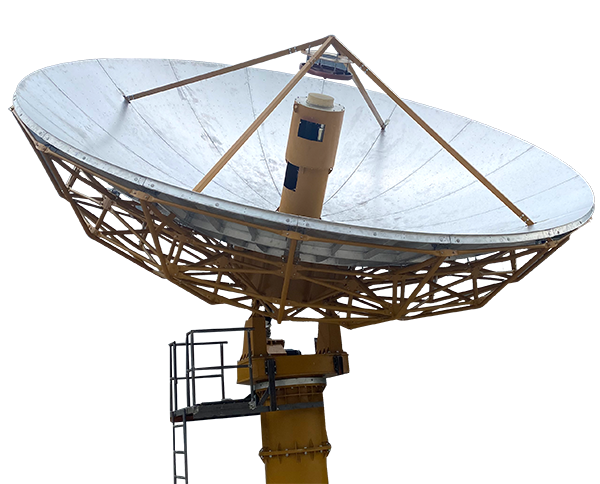

motion range AZ	±70°(Truss type), 5° - 355° continuous (turntable type)
motion range EL	5° - 90°
motion range POL	±90°
product package volume	5 packages, dimension: 22 CBM
RMS	≤0.5 mm
structure	LMC/ FMC

KEY SPECIFICATIONS
antenna aperture	6.2m
band	Ku-Band
Product Revision	A

ANTENNA SPECIFICATIONS
antenna drive mode	3-axis motorized structure
antenna type	Ring Focus
number of ports	4-ports
polarization	Linear
Rx axial ratio 2 ports	1.2 dB
Rx axis ratio	≥30 dB
sidelobe	≤-14dB; 29 - 25 logθ(1°≤θ＜20°)
Tx axial ratio 2 ports	1.2 dB
Tx axis ratio	≥30 dB

RF SPECIFICATIONS
noise temperature elevation 10°	50 K
noise temperature elevation 30°	39 K
noise temperature elevation 50°	36 K
port isolation Rx-Tx	85 dB
Rx feed insertion loss	≤0.35 dB
Rx frequency	10.70 ‐ 12.75 GHz
rx gain	55.85 @ 11.85GHz
Rx VSWR	1.3 : 1
Tx feed insertion loss	≤0.35 dB
Tx frequency	13.75 ‐ 14.50 GHz
tx gain	57.37 @ 14.125GHz
Tx VSWR	1.3 : 1

ELECTRICAL SPECIFICATIONS
power capacity	2 KW

INTERFACE SPECIFICATIONS
Rx interface	WR-75
Tx interface	WR-75

ENVIRONMENTAL SPECIFICATIONS
humidity	1.0
ice load	Icing 13mm: normal work; Icing 25mm: no damage
seismic capacity horizontal	0.3 G
seismic capacity vertical	0.1 G
temperature operational	-30°C to +50°C
windspeed operational	72 km/h
windspeed survival	216 km/h

PHYSICAL SPECIFICATIONS
loading capacity	1 set for 40ft container
motion range AZ	±70°(Truss type), 5° - 355° continuous (turntable type)
motion range EL	5° - 90°
motion range POL	±90°
product package volume	5 packages, dimension: 22 CBM
RMS	≤0.5 mm
structure	LMC/ FMC

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8529109090
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	5A991.B
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	3590 kg
Total Aluminium Content	0 Kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
