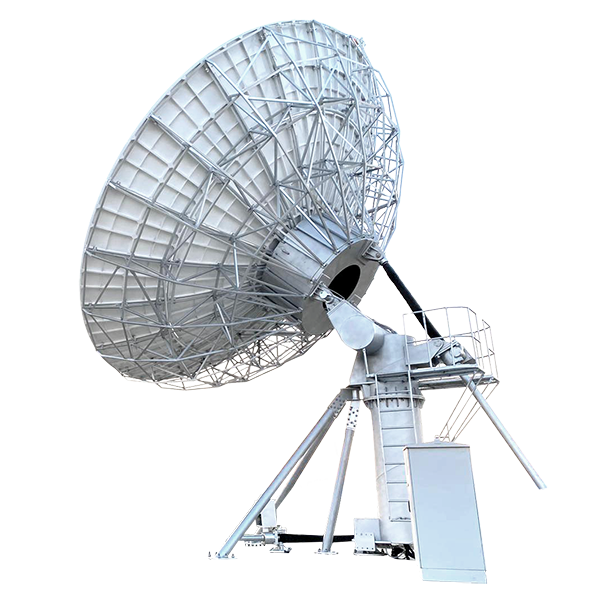

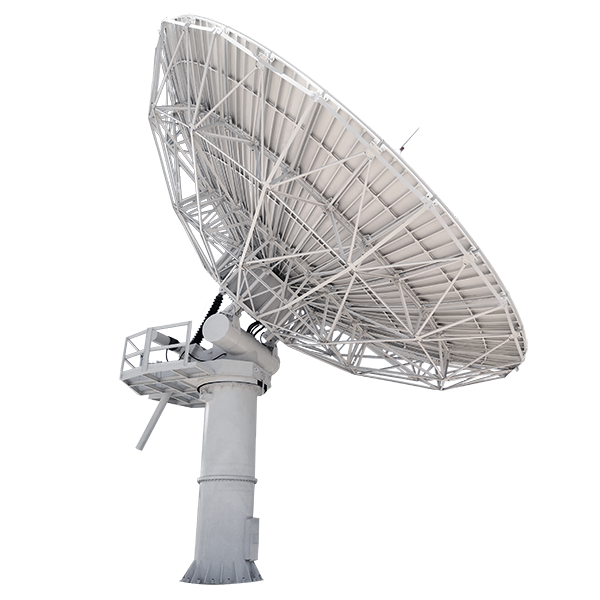

Name: ANCHOR 9.0m Ka-Band Earth Station Antenna
Brand: Norsat International Inc.
SKU: ESEC900KA2A
Price: 489723.00 USD
Availability: InStock

ANCHOR 9.0m Ka-Band Earth Station Antenna

ANCHOR 1.8m Ka-Band Earth Station Antenna

ESEC900KA2A

ANCHOR 9.0m Ka-Band Earth Station Antenna

Anchor

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":43458720563383,"title":"2-ports","option1":"2-ports","option2":null,"option3":null,"sku":"ESEC900KA2A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ANCHOR 9.0m Ka-Band Earth Station Antenna - 2-ports","public_title":"2-ports","options":["2-ports"],"price":48972300,"weight":10205000,"compare_at_price":44075000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43458744484023,"title":"4-ports","option1":"4-ports","option2":null,"option3":null,"sku":"ESEC900KA4A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ANCHOR 9.0m Ka-Band Earth Station Antenna - 4-ports","public_title":"4-ports","options":["4-ports"],"price":52083400,"weight":10205000,"compare_at_price":46875000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

We recommend purchasing the corresponding Antenna Control System along with the motorized Earth Station, unless you plan to develop the control system yourself. Please note that the Antenna Control System is sold separately at an additional cost.
For Manual Structure Antennas, a control system is not required.

Please note: Installation services are not included with this product.

KEY SPECIFICATIONS
antenna aperture	9.0m
band	Ka-Band
Product Revision	A

ANTENNA SPECIFICATIONS
antenna drive mode	2-axis motorized structure
antenna type	Cassegrain
number of ports	2-ports
polarization	Circular
Rx axial ratio 2 ports	≤1.5 dB
sidelobe	≤-14dB; 29 - 25 logθ(1°≤θ＜20°)
Tx axial ratio 2 ports	≤1.5 dB

RF SPECIFICATIONS
noise temperature elevation 10°	126.7 K
noise temperature elevation 20°	88 K
noise temperature elevation 50°	62.3 K
port isolation Rx-Tx	85 dB
Rx feed insertion loss	≤0.5 dB
Rx frequency	17.70 - 21.20 GHz
rx gain	63.19 @ 19.0GHz
Rx VSWR	1.35 : 1
Tx feed insertion loss	≤0.6 dB
Tx frequency	27.50 - 31.00 GHz
tx gain	66.86 @ 29.0+GHz
Tx VSWR	1.35 : 1

ELECTRICAL SPECIFICATIONS
power capacity	2 KW

INTERFACE SPECIFICATIONS
Rx interface	WR-42
Tx interface	WR-28

ENVIRONMENTAL SPECIFICATIONS
humidity	1.0
ice load	Icing 13mm: normal work; Icing 25mm: no damage
seismic capacity horizontal	0.3 G
seismic capacity vertical	0.1 G
temperature operational	-30°C to +50°C
windspeed operational	72 km/h
windspeed survival	216 km/h

PHYSICAL SPECIFICATIONS
loading capacity	1 set for 40HQ container + 1 set for 20GP container
motion range AZ	±75°(Truss type), 5° - 355° continuous(turntable type)
motion range EL	5° - 90°
motion range POL	±90°
product package volume	12 packages, dimension: 73CBM
RMS	≤0.3 mm
structure	LMC/ FMC

KEY SPECIFICATIONS
antenna aperture	9 m
band	Ka-Band
Product Revision	B

ANTENNA SPECIFICATIONS
antenna drive mode	2-axis motorized structure
antenna type	Cassegrain
number of ports	4-ports
polarization	Circular
Rx axial ratio 2 ports	≤1.5 dB
Rx axial ratio 4 ports	≤1 dB
sidelobe	≤-14dB; 29 - 25 logθ(1°≤θ＜20°)
Tx axial ratio 2 ports	≤1.5 dB
Tx axial ratio 4 ports	≤1 dB

RF SPECIFICATIONS
noise temperature elevation 10°	126.7 K
noise temperature elevation 20°	88 K
noise temperature elevation 50°	62.3 K
port isolation Rx-Tx	85 dB
Rx feed insertion loss	≤0.5 dB
Rx frequency	17.70 - 21.20 GHz
rx gain	63.19 @ 19.0GHz
Rx VSWR	1.35 : 1
Tx feed insertion loss	≤0.6 dB
Tx frequency	27.50 - 31.00 GHz
tx gain	66.86 @ 29.0+GHz
Tx VSWR	1.35 : 1

ELECTRICAL SPECIFICATIONS
power capacity	2 KW

INTERFACE SPECIFICATIONS
Rx interface	WR-42
Tx interface	WR-28

ENVIRONMENTAL SPECIFICATIONS
humidity	1.0
ice load	Icing 13mm: normal work; Icing 25mm: no damage
seismic capacity horizontal	0.3 G
seismic capacity vertical	0.1 G
temperature operational	-30°C to +50°C
windspeed operational	72 km/h
windspeed survival	216 km/h

PHYSICAL SPECIFICATIONS
loading capacity	1 set for 40HQ container + 1 set for 20GP container
motion range AZ	±75°(Truss type), 5° - 355° continuous(turntable type)
motion range EL	5° - 90°
motion range POL	±90°
product package volume	12 packages, dimension: 73CBM
RMS	≤0.3 mm
structure	LMC/ FMC

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8529109090
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	5A991.B
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	10205 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
