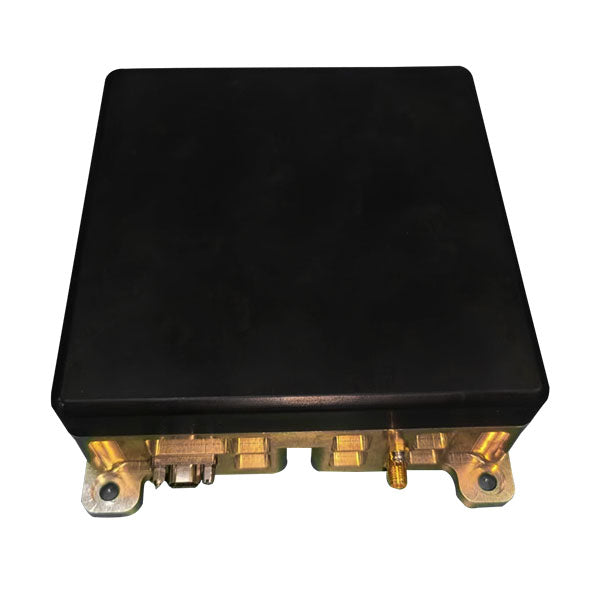

ATJ-201

4-Channel Anti-Jamming Terminal

Anti-jamming Terminal

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna array 4 B1 and L1 antenna arrays
anti burning ability ≥ 2W
channel noise coefficient 1.7 dB
positioning system Beidou, GPS positioning, signal reception, decoding, and output
supported bands BDS B1：1561.098 MHz ± 2.046 MHz; GPS L1：1575.42 MHz ± 1.023 MHz
RF SPECIFICATIONS
positioning accuracy ≤ 10m
speed accuracy ≤ 0.2m/s
ELECTRICAL SPECIFICATIONS
cold start time ≤ 60s（Including self-checking time）
power consumption ≤ 12W
recapture time ≤ 6s

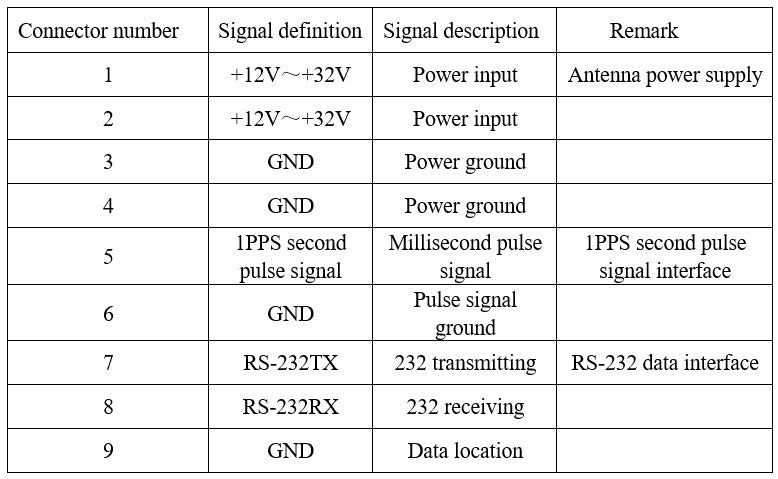

INTERFACE SPECIFICATIONS
anti interface type It has the ability to resist various suppression interferences such as broadband, sweep, and pulse in the BD-B1 and GPS_L1 frequency bands
interface signal ratio ≥ 90dB @ -130dBm (resist single broadband interface); ≥ 80dB @ -130dBm (resist three broadband interface)
number of anti interface device Simultaneously counteract 1-3 interference sources from different directions
number of channels 4 B1 and L1 channels
output PPS 1 PPS second pulse signal, TLL Level
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +55°C
temperature storage -45°C to +60°C

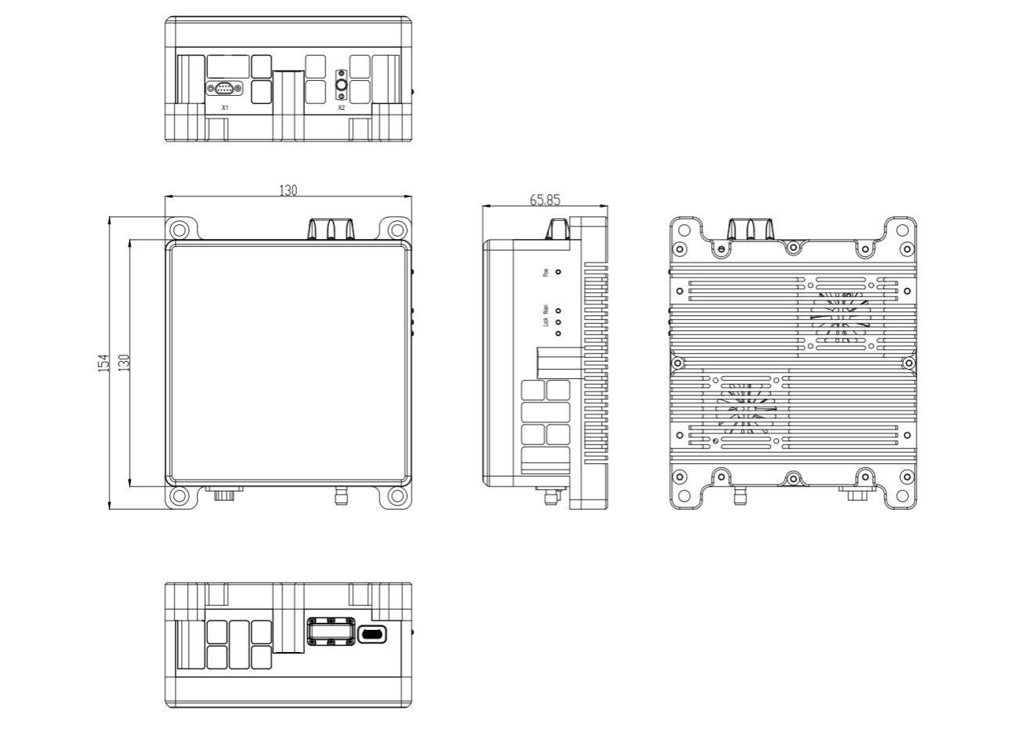

PHYSICAL SPECIFICATIONS
product height 25 mm
product length 130 mm
product weight 1 kg
product width 130 mm
reliability MTBF ≥ 5000 hours
reliability MTTR ≤ 20 minutes
