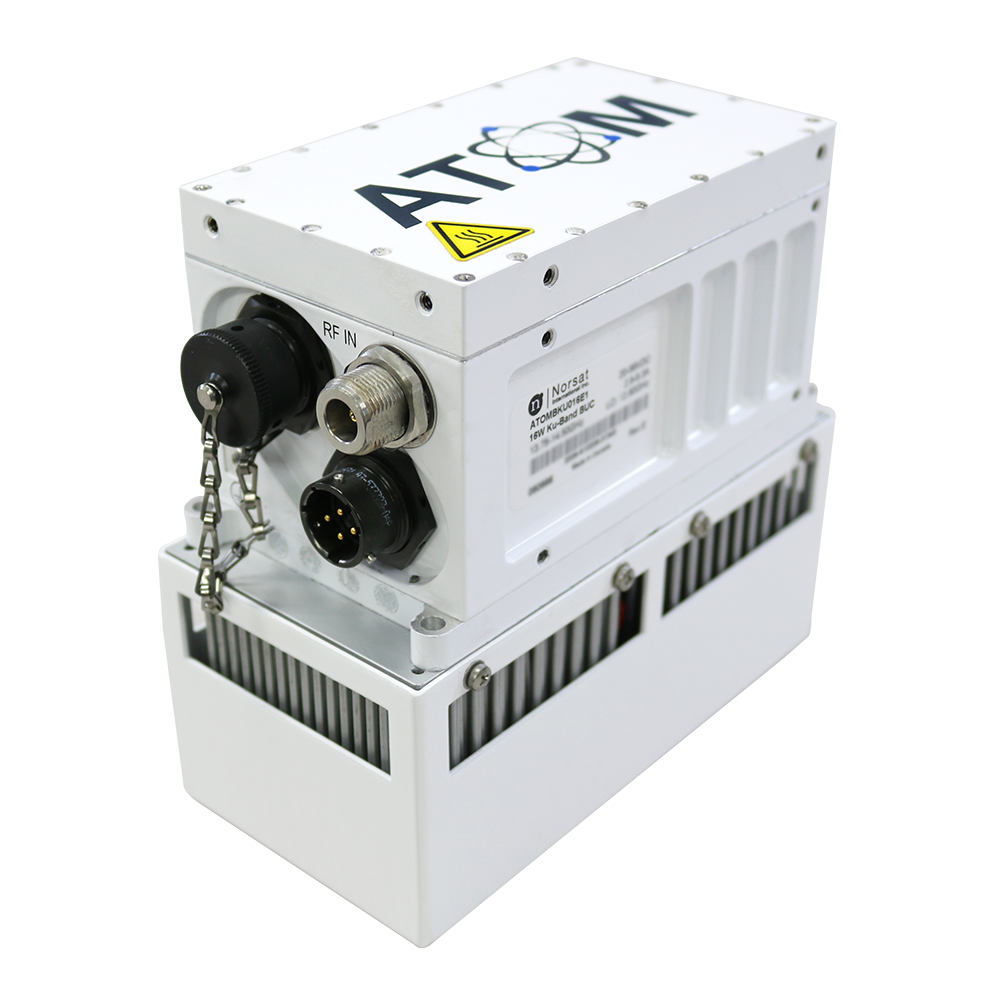

KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output P1dB | 42 dBm min. |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | No Add-on |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | F: EMI/EMC Filter |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | P: Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | FP: EMI/EMC Filter & Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output P1dB | 42 dBm min. |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | No Add-on |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | F: EMI/EMC Filter |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | P: Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | S: Standard |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1450 MHz |
LO frequency 1 | 13.05 GHz |
output frequency band 1 | 14.00 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | FP: EMI/EMC Filter & Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output P1dB | 42 dBm min. |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | No Add-on |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | F: EMI/EMC Filter |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | P: Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 1: Internal Fan |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | FP: EMI/EMC Filter & Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output P1dB | 42 dBm min. |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | No Add-on |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | F: EMI/EMC Filter |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | P: Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
band type | E: Extended |
external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.80 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
Gain Flatness (over 40MHz) | ≤ 3.0 dB p-p |
Gain Flatness (over full band) | ≤ 8.0 dB p-p |
Gain Flatness (over temperature) | ≤ 3.0 dB p-p |
input power | via power connector |
input VSWR | 2.0 : 1 max. |
Linear Gain | ≥ 60 dB |
noise power density | -65 dBm/Hz in T, -65 dBm/Hz in Tx |
output power psat | 43 dBm min. |
output spurious in band | ≤ -60 dBc |
output spurious out of band P1dB | ≤ -55 dBc |
output VSWR | 2.0 : 1 max. |
phase noise 1000kHz offset max | -102 dBc/Hz |
ELECTRICAL SPECIFICATIONS | |
---|---|
power connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
power consumption psat | 210 W max. |
power requirements | +18 to +56 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF output connector | WR-75 waveguide grooved |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
humidity | 100% condensing |
IP rating | IP 65 |
temperature operational | -40°C to +60°C |
temperature storage | -50 to +80°C |
thermal shutdown temperature | 90°C (Accuracy ± 3°C) |
PHYSICAL SPECIFICATIONS | |
---|---|
cooling | 2: External Baseplate |
enclosed accessories | Screws, Gasket, M&C Connector, Power Connector |
product height | 181 mm |
product length | 164 mm |
product weight | 2.4 kg |
product width | 91 mm |
ACCESSORIES | |
---|---|
optional configuration add ons | FP: EMI/EMC Filter & Surge Protection |
optional m and c cable 10m | CABLEM+C-AT10 |
optional power supply | PS300-AT1-(NA/UK/EU/IEC/CN/AU) |
Please contact us to request any additional documents you may need.
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in Canada |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | - |
Unit Package Weight | - |
